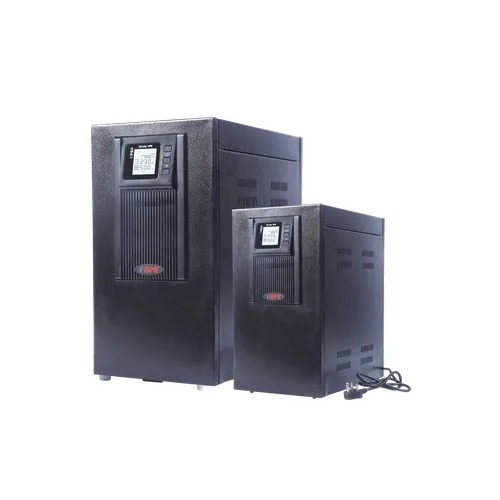

BPE MFX1102L8 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER

27000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 2 KVA ( 1600 W)
Product Type BPE MFX1102L8 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER
Standard IEC 62040-1
Frequency (MHz) 50 Hz Hertz (HZ)
Protection Overload, Short Circuit, Surge Protection, EMI/RFI Filtering
Usage BACKUP
Size UPS Physical Size Height: 399 mm Width: 469 mm Depth: 192 mm Weight: ~26.7 kg
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MFX1102L8 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price And Quantity

Minimum Order Quantity 1 Unit
Price 27000.0 INR/Unit

BPE MFX1102L8 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Product Specifications

Size UPS Physical Size Height: 399 mm Width: 469 mm Depth: 192 mm Weight: ~26.7 kg
Product Type BPE MFX1102L8 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER
Frequency 50 Hz Hertz (HZ)
Operating Temperature 0 40 C Celsius (oC)
Cable Type Copper cable ~2.5 mm for a typical 2 kVA UPS is a common recommendation (similar classes use this size).
Color BLACK
Standard IEC 62040-1
Power Rating 2 KVA ( 1600 W)
Protection Overload, Short Circuit, Surge Protection, EMI/RFI Filtering
Frequency (MHz) 50 Hz Hertz (HZ)
Usage & Applications POWER SUPPLY
Dimension (L*W*H) Dimensions Height: 399 mm Width: 469 mm Depth: 192 mm Weight: ~26.7 kg Millimeter (mm)
Warranty 1 YEAR
Usage BACKUP
Display Type LCD with status & alarms
Features Key Features True Online Double Conversion Technology Converts AC DC AC continuously Provides zero transfer time during power failure Best stability and protection for sensitive equipment Inbuilt Isolation Transformer Electrical isolation between input and output Reduces electrical noise, spikes & grounding issues Enhances safety for servers, labs, medical and industrial gear High Performance Power Handling Pure sine wave output compatible with all electronic loads High input power factor ( 0.99) Output power factor ~0.8 better usable power delivery Excellent Voltage Regulation Handles wide input voltage fluctuations Provides steady output voltage for sensitive devices Protects against brownouts & surges Advanced Protection Features Overload protection Short circuit protection Surge & spike suppression EMI / RFI noise filtering User Friendly Display & Monitoring LCD panel shows: Input / output voltage Battery status Load percentage Fault & alarm indications Bypass & Redundancy Static bypass for maintenance or heavy load Manual bypass switch included Ensures continuous power even during UPS maintenance Battery Management Intelligent charging with adjustable current Deep discharge protection Extends battery life Generator & Solar Compatibility Works with diesel generators Can integrate with solar inverters (via proper setup) Cooling & Reliability Forced air cooling with internal fans Designed for continuous industrial operation Why These Features Matter Zero downtime for critical systems Pure sine output protects sensitive electronics Isolation transformer boosts safety and reduces noise Smart battery management increases battery life Bypass options ensure uptime even during UPS service
Weight 26.7 k Kilograms (kg)
Material STEEL
Rated Voltage 220 V / 230 V / 240 V AC Volt (V)
Rated Current 1600W Watt (w)
Phase Single Phase (1 )

BPE MFX1102L8 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Trade Information

Delivery Time 7 Days

Product Description

Product Description BPE MFX1102L8 2KVA Online UPS (With Inbuilt Isolation Transformer)

The BPE MFX1102L8 2KVA Online UPS is a high-performance true online double-conversion UPS designed to provide uninterrupted and clean power supply to sensitive electronic equipment. It converts incoming AC power to DC and then back to AC continuously, ensuring zero transfer time and stable pure sine-wave output, which protects devices from voltage fluctuations, spikes, and power failures.

This model comes with an inbuilt isolation transformer, which electrically isolates the input and output power lines. This helps reduce electrical noise, eliminate ground loop problems, and provide enhanced safety for critical equipment such as servers, medical devices, laboratory instruments, and industrial control systems.

Here is the Specification Table for the BPE MFX1102L8 2KVA Online UPS (with inbuilt isolation transformer) in a clear tabular format.

Specification	Details
Model	MFX1102L8
UPS Type	True Online Double Conversion UPS
Capacity	2 kVA
Output Power	1.6 kW
Input Phase	Single Phase
Output Phase	Single Phase
Nominal Input Voltage	220 / 230 / 240 V AC
Input Voltage Range	110 300 V AC (load dependent)
Input Frequency Range	50 / 60 Hz 10%
Input Power Factor	0.99
Output Voltage	220 / 230 / 240 V AC 1%
Output Frequency	50 / 60 Hz (Auto sensing)
Output Waveform	Pure Sine Wave
Output Power Factor	0.8 (0.9 optional)
Transfer Time	0 ms (True Online)
Voltage Distortion (THD)	13%
Efficiency	Up to 94% (Dual Conversion Mode)
Crest Factor	3 : 1
Battery DC Voltage	96 V DC
Battery Type	External SMF Batteries
Battery Configuration	8 12V Batteries
Charging Current	Up to 66.5 A
Recharge Time	45 Hours (90% capacity)
Backup Time	Depends on battery capacity (20180 min typical)
Display	LCD Display
Bypass	Static & Manual Bypass
Communication Ports	RS232 / SNMP (Optional)
Protection	Overload, Short Circuit, Battery Protection
Special Feature	Inbuilt Isolation Transformer
Applications	Servers, Medical Equipment, Networking, Industrial Systems

WARRANTY :- 1YEAR
Sources confirm the wide input voltage range (110300 V), 2 kVA capacity, 96 V battery system, and up to 94% efficiency for this model series.
