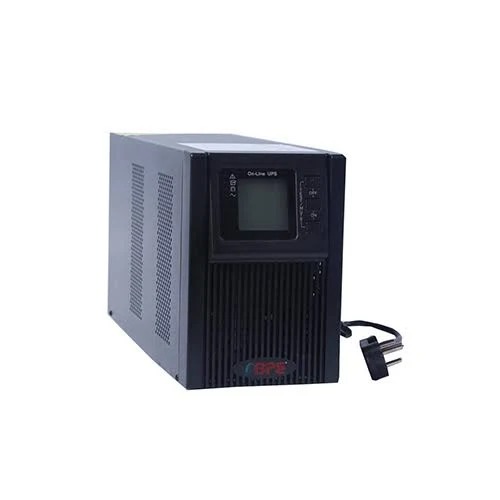

BPE (MP1103L6) 3KVA ONLINE UPS EXTERNAIL BATTERY

31400.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 3 kVA (3000 VA)
Product Type BPE (MP1103L6) 3 KVA ONLINE UPS EXTERNAIL BATTERY
Standard IEC/EN62040 series, CE, BIS, RoHS etc.
Frequency (MHz) 50/60 Hz Hertz (HZ)
Protection Overload, short circuit, surge, battery low, over temp
Usage BACKUP
Size 40 14.4 21.5 cm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MP1103L6) 3KVA ONLINE UPS EXTERNAIL BATTERY Price And Quantity

Price 31400.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (MP1103L6) 3KVA ONLINE UPS EXTERNAIL BATTERY Product Specifications

Power Rating 3 kVA (3000 VA)
Weight 10.8 Kilograms (kg)
Material STEEL
Features Core Power & Protection Features True Online Double Conversion UPS: Provides continuous, clean power with zero transfer time ideal for sensitive equipment and servers. PWM Technology & Pure Sine Wave Output: Ensures stable and distortion free AC power for critical loads. High Input Power Factor: 0.99 at full load for efficient energy use.
Rated Voltage 160 V to 280 V AC Volt (V)
Warranty 1 YEAR
Size 40 14.4 21.5 cm
Cable Type Type: Three core mains power cable rated for single phase AC input (L, N, Earth).
Protection Overload, short circuit, surge, battery low, over temp
Rated Current 10.4 A Ampere (amp)
Display Type LCD showing voltage, frequency, load, battery status etc.
Dimension (L*W*H) Dimensions (L W H): 469 192 399 mm (millimetres) Millimeter (mm)
Standard IEC/EN62040 series, CE, BIS, RoHS etc.
Product Type BPE (MP1103L6) 3 KVA ONLINE UPS EXTERNAIL BATTERY
Frequency (MHz) 50/60 Hz Hertz (HZ)
Usage & Applications POWER SUPPLY
Phase SINGLE PHASE
Usage BACKUP
Color BLACK
Frequency 50/60 Hz Hertz (HZ)
Operating Temperature 0 45 C Celsius (oC)

BPE (MP1103L6) 3KVA ONLINE UPS EXTERNAIL BATTERY Trade Information

Delivery Time 7 Days

Product Description

Product Overview

The BPE MF 3kVA Online UPS (Model MF1103L6) is a true online, doubleconversion UPS designed to provide continuous, clean and uninterrupted power for critical loads like servers, networking gear, computers, lab and industrial equipment. Its online topology ensures zero transfer time during mains power failure, offering dependable protection against power interruptions.
Heres a clear specification table for the BPE MF 3kVA Online UPS for 6 External Batteries, MF1103L6 the 3kVA online UPS designed to work with external batteries:

Specification	Details
UPS Type / Topology	True DoubleConversion Online UPS with PWM technology (pure sine wave)
Rated Capacity	3kVA (2.4kW)
Phase	SinglePhase Input & Output (1:1)
Input Voltage Range	~110V 300V AC (wide tolerance)
Input Frequency	50/60Hz Auto Sensing
Output Voltage	~220/230/240V AC (pure sine)
Output Frequency	50/60Hz (sync & battery mode)
Power Factor	0.99 (input), ~0.8 (output)
Crest Factor	3:1
Efficiency	~94% (Online), up to ~99% (ECO mode)
Battery Type	External SMF/leadacid batteries (not included)
Battery Configuration	Typically 6 12V (72V DC bus)
Charging Current	~6A
Typical Recharge Time	~45hours to 90%
Display & Interface	LCD showing voltage, frequency, load, battery status etc.
Protection Features	Overload, short circuit, surge, battery low, over temp
Communication Ports	RS232 / USB (optional)
Operating Temperature	~045C
Relative Humidity	~095% (noncondensing)
Dimensions (LWH)	4014.421.5cm
Weight	~10.8kg
Compliance / Standards	IEC/EN62040 series, CE, BIS, RoHS etc.
Warranty	~1Year (UPS)

Key Notes

Actual backup time depends on the battery capacity (AH) you connect higher AH batteries provide longer runtime.
This UPS does not include batteries you must buy external SMF/leadacid batteries separately.

If you want, I can help you estimate how long this UPS could run your specific load (in watts) with a given battery AH!
