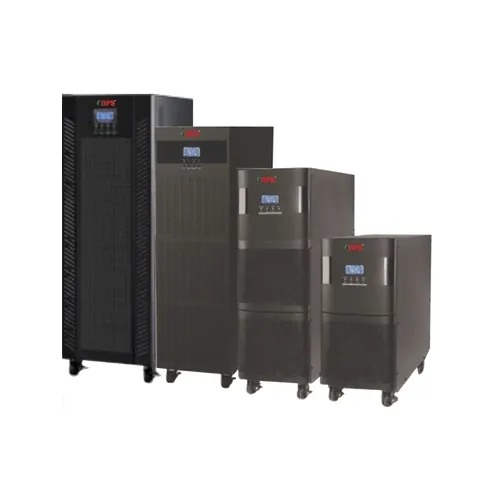

BPE (GT3310L20) 10KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

112100.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type BPE (GT3310L20) 10KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 10KVA
Standard Specification Details Height 685 mm Width 615 mm Depth 280 mm Net Weight ~170 kg
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, overheat protection
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GT3310L20) 10KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 112100.0 INR/Piece

BPE (GT3310L20) 10KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Cable Type Copper, XLPE insulated, multi-core armoured (preferred)
Color BLACK
Usage BACKUP
Frequency 50 Hertz (HZ)
Protection Overload, short circuit, overheat protection
Size STANDARD
Operating Temperature 0-40 Celsius (oC)
Warranty 1 YEAR
Rated Current 14 15A Ampere (amp)
Standard Specification Details Height 685 mm Width 615 mm Depth 280 mm Net Weight ~170 kg
Features The BPE GT3310L20 is a true industrial online UPS designed for continuous, clean, and zero-interruption power backup in critical 3-phase applications.
Power Rating 10KVA
Product Type BPE (GT3310L20) 10KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Rated Voltage 380 / 400 / 415V AC Volt (V)
Phase 3:3 PHASE
Material STEEL
Usage & Applications POWER SUPPLTY
Weight 170 Kilograms (kg)
Display Type Multi-function LCD Display (Digital Panel)
Dimension (L*W*H) Specification Details Height 685 mm Width 615 mm Depth 280 mm Net Weight ~170 kg Millimeter (mm)
Frequency (MHz) 50 Hertz (HZ)

BPE (GT3310L20) 10KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The BPE GT3310L20 10KVA 3:3 Phase Online UPS is a high-performance industrial-grade power backup system designed for critical three-phase electrical loads. It uses true online double-conversion technology, ensuring completely stable, clean, and uninterrupted power supply without any transfer delay (0 ms).

This UPS is widely used in data centers, IT infrastructure, hospitals, manufacturing plants, telecom systems, and automation environments, where even a brief power interruption can cause operational loss.

Specification Table

Specification	Details
Model	GT3310L20 / CP3310L20
Capacity	10 kVA / 8 kW
UPS Type	Online Double Conversion
Phase	3 Phase Input / 3 Phase Output (3:3)
Power Factor	0.8
Output Voltage	380V / 400V / 415V AC
Input Voltage Range	304 477V AC (3-phase)
Frequency	50/60 Hz (auto sensing)
Efficiency	>96% to 99% (ECO mode higher)
Transfer Time	0 ms (instant supply)
Output Waveform	Pure sine wave
THD (Output Distortion)	<3% (linear load)
Overload Capacity	125% for 10 min, 150% for 1 min
Crest Factor	3:1
Battery Type	External SMF batteries
Battery DC Bus	240V DC
Battery Capacity Range	7 Ah 200 Ah (flexible)
Backup Time	Depends on battery bank (10 min to 3+ hrs)
Charger Type	Intelligent multi-stage charging
Bypass	Built-in static + maintenance bypass
Protection	Overload, short circuit, overheat protection
Communication	RS232 / USB / SNMP (optional)
Cooling	Forced air cooling (fans)
Application	Data centers, industry, hospitals, telecom

Simple Summary

This UPS is a high-reliability industrial 3-phase online UPS designed for zero power interruption, with flexible external battery setup and strong protection features for critical loads.

If you want, I can also make:

Battery connection diagram (very useful for installation)
Exact battery count for 1 hour / 2 hour backup
Current India price range + installation cost
Comparison with APC / Vertiv / Numeric 10KVA models
