Product Details:

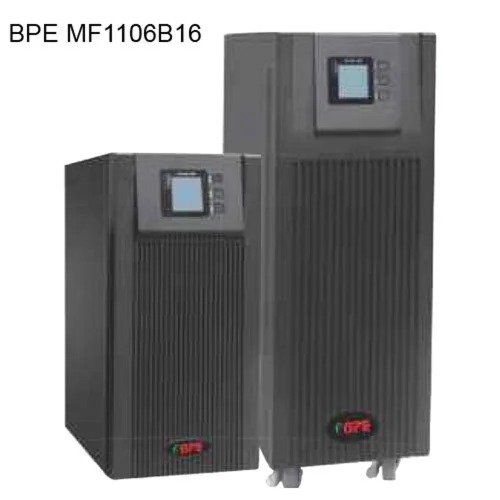

Product Type BPE (MF1106B16) 6KVA ONLINE UPS INBUILT BATTERY
Power Rating 6 KVA
Standard Dimensions Parameter Details Width (W) 190 mm Depth (D) 480 mm Height (H) 750 mm Net Weight ~82 kg
Frequency (MHz) 50/60 Hertz (HZ)
Protection Protection against input over/under voltage, surges, and spikes
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MF1106B16) 6KVA ONLINE UPS INBUILT BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 65000.0 INR/Unit

BPE (MF1106B16) 6KVA ONLINE UPS INBUILT BATTERY Product Specifications

Protection Protection against input over/under voltage, surges, and spikes
Power Rating 6 KVA
Color BLACK
Frequency 50/60 Hertz (HZ)
Features True Online Double Conversion with PWM & IGBT technology
Size STANDARD
Material STEEL
Cable Type Copper (Cu) conductor cable
Product Type BPE (MF1106B16) 6KVA ONLINE UPS INBUILT BATTERY
Usage & Applications POWER SUPPLY
Usage BACKUP
Dimension (L*W*H) Dimensions Parameter Details Width (W) 190 mm Depth (D) 480 mm Height (H) 750 mm Net Weight ~82 kg Millimeter (mm)
Display Type LCD + LED indicators
Operating Temperature 0 C to 40 C Celsius (oC)
Phase 1 PHASE
Warranty 1 YEAR
Weight 82 Kilograms (kg)
Rated Current 26 Amp Ampere (amp)
Rated Voltage 220V / 230V / 240V AC Volt (V)
Standard Dimensions Parameter Details Width (W) 190 mm Depth (D) 480 mm Height (H) 750 mm Net Weight ~82 kg
Frequency (MHz) 50/60 Hertz (HZ)

BPE (MF1106B16) 6KVA ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 7 Days

Product Description

The BPE MF1106B16 6KVA Online UPS (Internal Battery) is a high-performance true online double-conversion UPS system designed to provide uninterrupted and clean power supply for sensitive equipment such as servers, networking systems, medical devices, and industrial loads.

It uses advanced IGBT-based rectifier and inverter technology to deliver a pure sine wave output, ensuring stable voltage and protection against power fluctuations, spikes, and outages

Specification Table

Specification	Details
Model	MF1106B16
Capacity	6 KVA / 6 KW
UPS Type	True Online Double Conversion
Phase	Single Phase (1:1)
Input Voltage	220V / 230V / 240V AC
Input Voltage Range	110V 300V AC (load dependent)
Input Frequency	50/60 Hz 10% (auto sensing)
Input Power Factor	0.99
Output Voltage	220V / 230V / 240V AC
Output Power Factor	1.0 (unity)
Voltage Regulation	1%
Output Frequency	50/60 Hz (0.1% battery mode)
Waveform	Pure Sine Wave
Transfer Time	Zero (0 ms)
Efficiency	94% (normal), up to 99% (ECO mode)
Overload Capacity	105% continuous, 125% (10 min), 150% (60 sec)
THD (Voltage Distortion)	1%
Crest Factor	3:1

WARRANTY :- 1YEAR
Battery Specifications

Specification	Details
Battery Type	SMF VRLA
Battery Configuration	16 12V (inbuilt)
Battery Capacity	7Ah / 9Ah
DC Bus Voltage	~192V
Recharge Time	45 hours (90% charge)
Charging Current	1A 6.5A (configurable), 10A optional
Typical Backup	~1015 minutes (full load)

Other Features

Feature	Details
Display	LCD + LED indicators
Bypass	Static + Maintenance bypass
Generator Compatibility	Yes
Cold Start	Yes
Communication Ports	RS232 / USB / SNMP (optional)
Design	DSP controlled, IGBT based

Summary

High-performance industrial-grade online UPS
Internal battery = compact, plug-and-play solution
Best for short backup + clean power protection

If you want, I can convert this into:

Tender format
Datasheet (company submission format)
Backup calculation based on your load

Just tell me

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

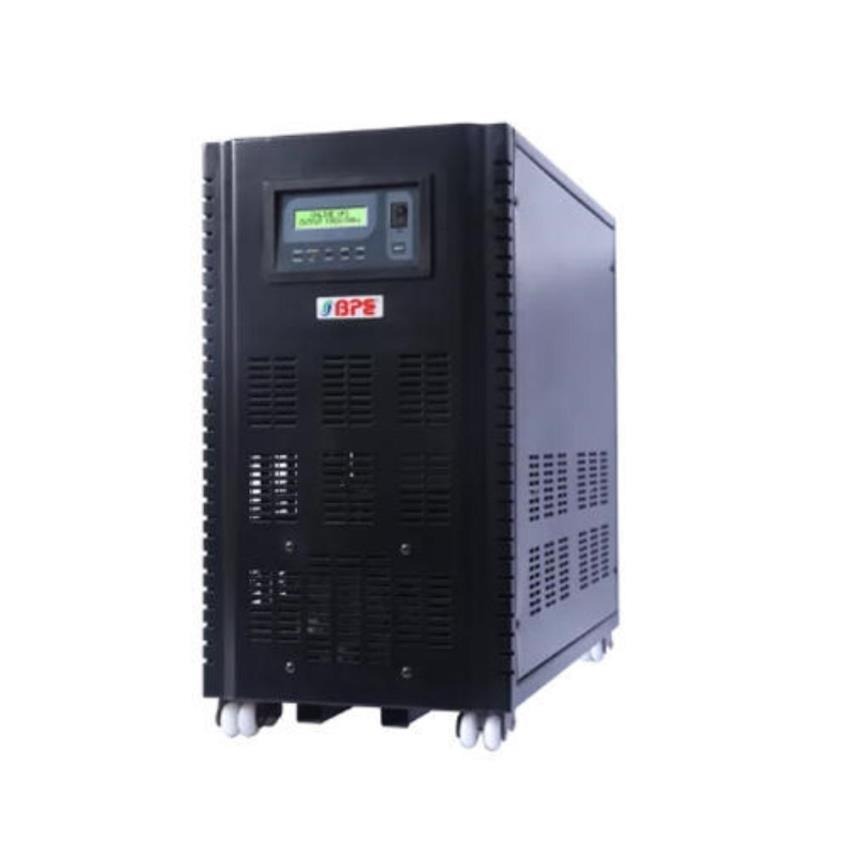

BPE (MF1106L16) 6KVA ONLINE UPS EXTERNAL BATTERY Price : 45000.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 YEAR Usage & Applications : POWER SUPPLY Usage : BACKUP Material : STEEL Size : STANDARD Product Type : BPE (MF1106L16) 6KVA ONLINE UPS EXTERNAL BATTERY Color : BLACK Rated Voltage : 110 V 300 V AC Volt (V) Frequency (MHz) : 50/60 Hertz (HZ) Standard : BIS, IEC/EN62040 series, RoHS, CE* Rated Current : 4800 W Watt (w) Phase : SINGLE PHASE Weight : 26.7 Kilograms (kg) Dimension (L*W*H) : UPS Unit Dimensions: Height: 399 mm Width: 469 mm Depth: 192 mm Net Weight: ~26.7 kg Millimeter (mm) Display Type : LCD & LED panels with mode, voltages, load %, battery status Frequency : 50/60 Hertz (HZ) Protection : Overload, short circuit, input under/over voltage, over temp, battery low, surge protection Power Rating : 6 kVA (6000 VA) Operating Temperature : 0 50 C Celsius (oC) Cable Type : Recommended Size: 6 mm to 10 mm copper Features : True Online Double Conversion Topology
