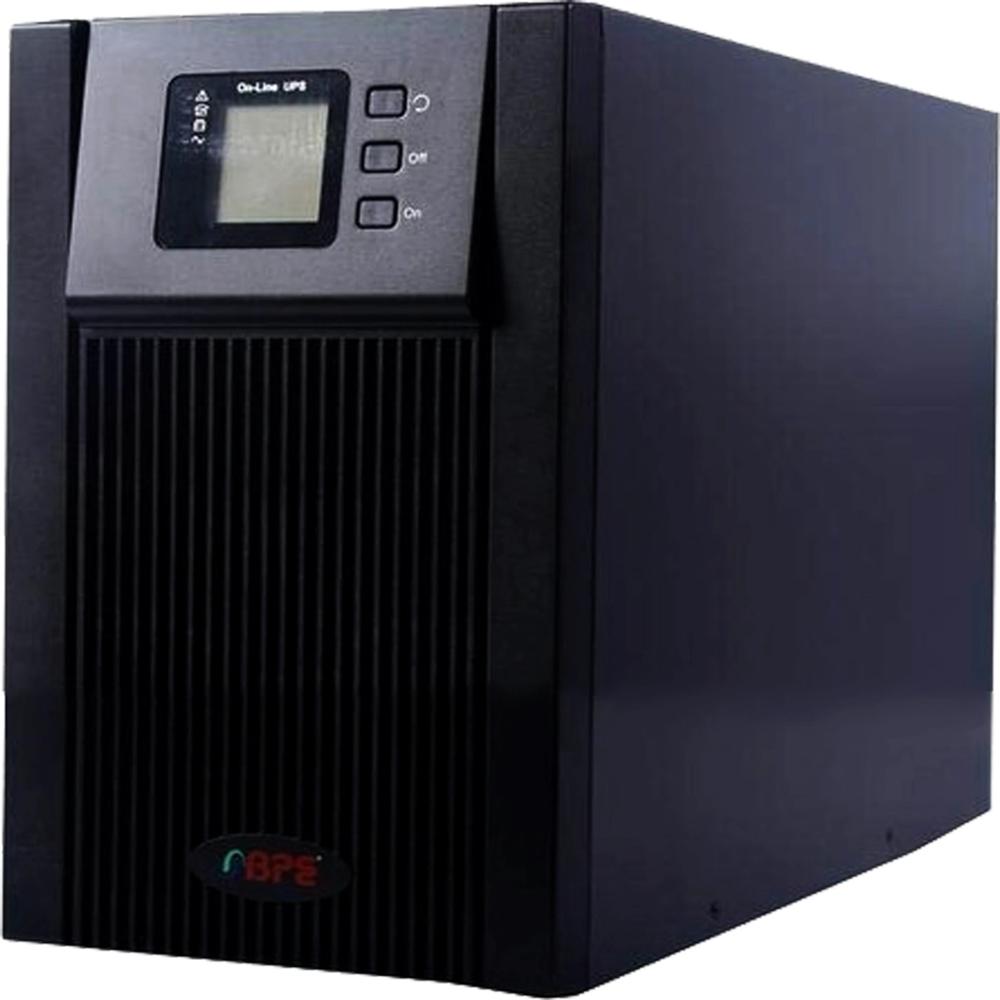

BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY
24200.0 INR/Unit
Product Details:
- Product Type BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY
- Power Rating 3000 VA (3 kVA)
- Standard Standard / Certification Details / Purpose BIS Bureau of Indian Standards ensures compliance with Indian safety and performance norms. (bpee.com ) CE Conformit Europ enne indicates compliance with EU safety, health, and environmental requirements. (sinewavebatteries.com ) ISO 9001 / 14001 Quality management (9001) and environmental management (14001) standards. (inrdeals.com ) OHSAS 18001 / ISO 27001 Occupational health & safety management (OHSAS) and information security management (27001). (sinewavebatteries.com ) RoHS Restriction of Hazardous Substances ensures the UPS is environmentally friendly with restricted toxic elements. (inrdeals.com ) Safety Features Compliance Meets global standards for overload, short-circuit, surge, and deep-discharge protection. (shop.clarioncomputers.in )
- Frequency (MHz) 50 Hertz (HZ)
- Protection Protection Features Protection Type Description Overload Protection Automatically limits output if load exceeds rated capacity; UPS switches to bypass or alarm. Short Circuit Protection Trips instantly to prevent damage to UPS and connected devices. Overvoltage Protection Protects against input voltage spikes from mains or generator. Undervoltage / Brownout Protection Prevents damage from low input voltage; automatically switches to battery mode if needed. Surge & Spike Protection Shields sensitive equipment from lightning or switching surges. Thermal / Overheat Protection UPS shuts down or alarms if internal temperature exceeds safe limits. Battery Deep Discharge Protection Prevents battery damage by shutting down before voltage drops too low. Battery Overcharge Protection Charger automatically limits voltage to prevent battery overcharging. Input Phase Failure / Phase Reversal Protection Protects UPS in case of incorrect wiring or phase loss. Bypass / Maintenance Mode Protection Ensures safe switching to bypass during UPS servicing. Alarm Indicators Audible and visual alarms for overload, battery low, battery fault, input/output abnormality.
- Usage BACKUP
- Size STANDARD
- Click to View more
X
BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Price And Quantity
- 24200.0 INR/Unit
- 1 Unit
BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Product Specifications
- 2400 W Watt (w)
- 1 YEAR
- 3000 VA (3 kVA)
- BACKUP
- Multifunction LCD panel
- Standard / Certification Details / Purpose BIS Bureau of Indian Standards ensures compliance with Indian safety and performance norms. (bpee.com ) CE Conformit Europ enne indicates compliance with EU safety, health, and environmental requirements. (sinewavebatteries.com ) ISO 9001 / 14001 Quality management (9001) and environmental management (14001) standards. (inrdeals.com ) OHSAS 18001 / ISO 27001 Occupational health & safety management (OHSAS) and information security management (27001). (sinewavebatteries.com ) RoHS Restriction of Hazardous Substances ensures the UPS is environmentally friendly with restricted toxic elements. (inrdeals.com ) Safety Features Compliance Meets global standards for overload, short-circuit, surge, and deep-discharge protection. (shop.clarioncomputers.in )
- This cable plugs into a grounded three pin socket (1P+N+PE).
- STANDARD
- Protection Features Protection Type Description Overload Protection Automatically limits output if load exceeds rated capacity; UPS switches to bypass or alarm. Short Circuit Protection Trips instantly to prevent damage to UPS and connected devices. Overvoltage Protection Protects against input voltage spikes from mains or generator. Undervoltage / Brownout Protection Prevents damage from low input voltage; automatically switches to battery mode if needed. Surge & Spike Protection Shields sensitive equipment from lightning or switching surges. Thermal / Overheat Protection UPS shuts down or alarms if internal temperature exceeds safe limits. Battery Deep Discharge Protection Prevents battery damage by shutting down before voltage drops too low. Battery Overcharge Protection Charger automatically limits voltage to prevent battery overcharging. Input Phase Failure / Phase Reversal Protection Protects UPS in case of incorrect wiring or phase loss. Bypass / Maintenance Mode Protection Ensures safe switching to bypass during UPS servicing. Alarm Indicators Audible and visual alarms for overload, battery low, battery fault, input/output abnormality.
- Specification Value Width (W) ~19.2 cm (~192 mm) Height (H) ~39.9 cm (~399 mm) Depth (D) ~46.9 cm (~469 mm) Form Factor Tower UPS Net Weight ~26.7 kg (approx.) Millimeter (mm)
- ~0 45 C Celsius (oC)
- Core Features True Online Double Conversion Technology Provides continuous clean power with zero transfer time from mains to battery. Ideal for sensitive electronics like servers, PCs and networking gear. Uses advanced digital control and PWM technology for stable power delivery. Built In Battery Backup Comes with 8 12 V 7 Ah internal sealed lead acid batteries for compact all in one backup. Integrated battery management with deep discharge protection and regulated charging helps prolong battery life. Advanced Monitoring & Control LCD display shows real time information like input/output voltages, frequency, battery level, load %, operation mode, and fault indications. Visual + audible alarms for status changes and protection events. Comprehensive Protection Suite Overload protection: Automatically protects the UPS and connected devices. Short circuit protection: Prevents damage from electrical faults. Surge and spike suppression: Protects against transient voltage spikes. Automatic Voltage Regulation (AVR): Stabilises under /over voltage without switching to battery whenever possible. Wide Input Compatibility Supports wide input voltage range ( 100 300 V AC), helping it handle brownouts and voltage fluctuations without switching to battery prematurely. Works with standby generators and other backup sources. Clean & Stable Output Pure sine wave output ensures safe operation of critical loads and sensitive equipment. High power factor output ( 0.8) and low harmonic distortion help maximise usable capacity. Reliability & Efficiency High dual conversion efficiency ( 94 %) and up to ~99 % in ECO mode for energy savings. Designed with IGBT based inverter/rectifier for robust performance. Other Useful Features Cold start / auto start capability can be started even without mains supply. Static bypass and manual bypass for maintenance or fault scenarios. Compatible with generator and solar assisted systems. Typical Use Cases This UPS is suited for: Home and small office servers & workstations Networking equipment (routers, switches) Security systems (CCTV cameras/DVR/NVR) Critical workstations, POS systems, and telecom gear Any sensitive load requiring uninterrupted pure sine wave power
- BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY
- 50 Hertz (HZ)
- POWER SUPPLY
- STEEL
- Single Phase
- BLACK
- 26.7 kg Kilograms (kg)
- 50 Hertz (HZ)
- 220 / 230 / 240 V AC Volt (V)
BPE (MF1103B8) 3KVA ONLINE UPS INBUILT BATTERY Trade Information
- 7 Days
Product Description
Product Description BPE MF1103B8 3kVA Online UPS (With Inbuilt Battery)
Type & Technology
True Online DoubleConversion UPS Always supplies clean power through the inverter so sensitive equipment never sees mains interruptions (0ms transfer time).
Puresinewave output for stable power suitable for PCs, servers, networking gear, and other critical devices.
Specification Table BPE3kVA Online UPS (ModelMF1103B8)
Specification Category
Details
Model Name
MF1103B8
UPS Type
True Online / DoubleConversion UPS
Rated Capacity
3000VA (3kVA)
Output Power
~2400W (2.4kW)
Output Power Factor
0.8 (Standard)
Input Phase / Output Phase
SinglePhase
Input Voltage Range
100300V AC (load dependent)
Input Frequency Range
50/60Hz autosensing
Output Voltage
220/230/240V AC 1%
Output Frequency
50/60Hz autosensing (battery mode 0.1Hz)
Output Waveform
Pure Sine Wave
Efficiency
~94% (Dual Conversion), ~99% (ECO mode)
Crest Factor
3:1
Total Battery Voltage (DC Bus)
96V DC
Battery Type & Quantity
12V 7Ah 8 Internal Sealed LeadAcid (SMF) batteries
Typical Backup Time
~5min @ full load
~1520min @ 50% load
Battery Recharge Time
~48hours to 90%
Display & Interface
Multifunction LCD (voltage, frequency, battery level, load %)
Protection Features
Overload, shortcircuit, deepdischarge, over/under voltage, surge protection
Transfer Time
0ms (instant)
Backup Outlets
Standard Indian outlet sockets (typically 4)
Operating Temperature
~045C
Noise Level
~5055dB
Certifications
BIS, CE, ISO 9000/14001/OHSAS/27001, RoHS
Form Factor
Towerstyle UPS
Approx. Weight
~2627kg
| Specification Category | Details |
|---|---|
| Model Name | MF1103B8 |
| UPS Type | True Online / DoubleConversion UPS |
| Rated Capacity | 3000VA (3kVA) |
| Output Power | ~2400W (2.4kW) |
| Output Power Factor | 0.8 (Standard) |
| Input Phase / Output Phase | SinglePhase |
| Input Voltage Range | 100300V AC (load dependent) |
| Input Frequency Range | 50/60Hz autosensing |
| Output Voltage | 220/230/240V AC 1% |
| Output Frequency | 50/60Hz autosensing (battery mode 0.1Hz) |
| Output Waveform | Pure Sine Wave |
| Efficiency | ~94% (Dual Conversion), ~99% (ECO mode) |
| Crest Factor | 3:1 |
| Total Battery Voltage (DC Bus) | 96V DC |
| Battery Type & Quantity | 12V 7Ah 8 Internal Sealed LeadAcid (SMF) batteries |
| Typical Backup Time | ~5min @ full load ~1520min @ 50% load |
| Battery Recharge Time | ~48hours to 90% |
| Display & Interface | Multifunction LCD (voltage, frequency, battery level, load %) |
| Protection Features | Overload, shortcircuit, deepdischarge, over/under voltage, surge protection |
| Transfer Time | 0ms (instant) |
| Backup Outlets | Standard Indian outlet sockets (typically 4) |
| Operating Temperature | ~045C |
| Noise Level | ~5055dB |
| Certifications | BIS, CE, ISO 9000/14001/OHSAS/27001, RoHS |
| Form Factor | Towerstyle UPS |
| Approx. Weight | ~2627kg |
WARRANTY :- 1 YEAR
Key Features (Summary)
-
True online doubleconversion technology ensures zero transfer time
