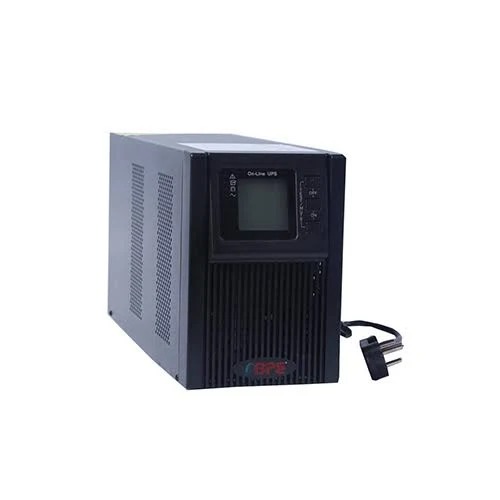

BPE (MP1102B6) 2KVA ONLINE UPS INBUILT BATTERY

Product Description

The BPE MP1102B6 is a 2KVA true online UPS designed to provide continuous, clean, and stable power to critical equipment such as servers, networking systems, medical devices, and office electronics.

Detailed Description

Technology

• True Online Double Conversion UPS
• Converts AC DC AC continuously
• Ensures zero transfer time during power failure
• Delivers pure sine wave output for sensitive equipment


  Specification Table

  Specification	Details
  Model	MP1102B6
  Capacity	2 KVA / ~1600 Watts
  UPS Type	True Online (Double Conversion)
  Phase	Single Phase Input / Output
  Input Voltage	230V AC
  Input Voltage Range	100280V AC (load dependent)
  Input Frequency	4070 Hz (Auto sensing)
  Power Factor (Input)	0.99
  Output Voltage	200 / 208 / 230 / 240V AC 1%
  Output Frequency	50/60 Hz 0.1 Hz (Battery mode)
  Waveform	Pure Sine Wave
  Transfer Time	Zero (No interruption)
  Efficiency	Up to 92% (Online Mode)
  Battery Type	Inbuilt SMF VRLA Batteries
  Battery Configuration	6 Batteries (B6 configuration)
  DC Bus Voltage	~72V system
  Recharge Time	46 hours (90% capacity)
  Backup Time	~1020 min (full load, approx.)
  Display	LCD Display
  Communication Port	USB / RS232 / Optional SNMP
  Protection	Overload, Short Circuit, Over/Under Voltage, Over Temp, Battery Low
  Operating Temperature	0C to 50C
  Humidity	095% (Non-condensing)
  Design	Rack/Tower Convertible
  Standards	IEC/EN62040, CE, ISO Certified
