BPE (PB1106l16) 6KVA ONLINE UPS INBUILT Isolation Transfarmer

53867.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 6 KVA (6000 VA)
Product Type BPE (PB1106l16) 6KVA ONLINE UPS INBUILT Isolation Transfarmer
Standard Type Typical Size Standard 6KVA UPS ~400 450 200 mm
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, over/under voltage
Usage backup
Size standard
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (PB1106l16) 6KVA ONLINE UPS INBUILT Isolation Transfarmer Price And Quantity

Price 53867.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (PB1106l16) 6KVA ONLINE UPS INBUILT Isolation Transfarmer Product Specifications

Features Online Double Conversion Technology Provides continuous clean power with zero transfer time (0 ms) Inbuilt Isolation Transformer Protects against: Voltage spikes Electrical noise Ground loop issues Pure Sine Wave Output Safe for sensitive equipment like servers, CNC, medical devices
Material steel
Rated Current 21 27 Amps Ampere (amp)
Power Rating 6 KVA (6000 VA)
Rated Voltage 110V 285V AC Volt (V)
Operating Temperature 0 C to 45 C Celsius (oC)
Protection Overload, short circuit, over/under voltage
Frequency 50 Hertz (HZ)
Usage backup
Color black
Frequency (MHz) 50 Hertz (HZ)
Standard Type Typical Size Standard 6KVA UPS ~400 450 200 mm
Warranty 1 year
Weight 52 Kilograms (kg)
Product Type BPE (PB1106l16) 6KVA ONLINE UPS INBUILT Isolation Transfarmer
Size standard
Display Type LCD (multifunction)
Cable Type Copper, 3 Core (Phase + Neutral + Earth) 6 sq.mm 10 sq.mm
Phase single phase
Usage & Applications power supply
Dimension (L*W*H) 400 450 200 mm Millimeter (mm)

BPE (PB1106l16) 6KVA ONLINE UPS INBUILT Isolation Transfarmer Trade Information

Delivery Time 7 Days

Product Description

Description BPE PB1106L16 6KVA Online UPS

The BPE PB1106L16 is a 6KVA double-conversion online UPS designed to deliver stable, clean, and uninterrupted power for sensitive and critical equipment.

It comes with a built-in isolation transformer, which provides extra safety by electrically isolating the output from input supply, reducing noise, surges, and electrical disturbances.

Specification Table BPE PB1106L16 (6KVA Online UPS)

Specification	Details
Model	PB1106L16
Capacity	6 KVA / 4.8 kW
Technology	Online Double Conversion UPS
Phase	Single Phase In / Single Phase Out
Power Factor	0.8
Input Voltage Range	110V 280V AC (approx. operational range)
Input Frequency	50/60 Hz 3 Hz
Output Voltage	220 / 230 / 240 V AC
Output Waveform	Pure Sine Wave
Output Frequency	50/60 Hz 0.1%
Transfer Time	0 ms (No break power supply)
Efficiency	>90% (up to ~93% depending load)
Output Distortion (THD)	<3%
Isolation Transformer	Inbuilt (galvanic isolation)
Battery System	External battery bank
DC Bus Voltage	192 V DC
Battery Type	SMF / Lead Acid
Charging Current	Up to 10 Amp (optional/adjustable)
Backup Time	Depends on external battery bank
Overload Capacity	110%150% (short duration protection)
Display	LCD monitoring panel
Communication	RS232 / SNMP (optional)
Cooling	Forced air cooling (fan)
Noise Level	<50 dB
Protection	Overload, short circuit, over/under voltage
Operating Temperature	0C 45C
Weight	~52 kg
Dimensions	~500 550 250 mm

Wrranty:- 1YEAR
Summary

This UPS is a high-performance industrial-grade online UPS with:

Zero transfer time backup
Isolation transformer for extra safety
External battery flexibility for long backup
Suitable for critical loads (IT, hospital, industry)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE MFP1103L8 2KVA ONLINE UPS Price : 25000.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Size : Unit Size (Approx.): Height: 399 mm Width: 192 mm Depth: 469 mm Net Weight: ~26.7 kg Product Type : BPE MFP1103L8 2KVA ONLINE UPS Warranty : 1 YEAR Usage : BACKUP Color : BLACK Material : STEEL Phase : 1 phase Weight : 26.7 kg Kilograms (kg) Frequency (MHz) : 40 70 Hz Hertz (HZ) Frequency : 40 70 Hz Hertz (HZ) Protection : Audible & visual alerts, overload protection Rated Current : 10.9 A Ampere (amp) Rated Voltage : 220/230/240 V AC Volt (V) Power Rating : 2.4 kW (2400 W Dimension (L*W*H) : Dimensions (Approx.): Height: 399 mm Width: 192 mm Depth: 469 mm Net Weight: ~26.7 k Millimeter (mm) Cable Type : Type: Copper conductor, 3 core (Live, Neutral, Earth) Display Type : Multi function LCD status panel Standard : Standard Description / Purpose BIS (IS 16242) Indian safety standard for UPS systems ensures safe operation in homes, offices, and industrial environments. IEC 62040 1 International standard for UPS safety covers design, protection against electric shock, fire, and mechanical hazards. IEC 62040 2 Electromagnetic compatibility (EMC) standard limits interference to other devices and protects UPS from external disturbances. IEC 62040 3 Defines performance and testing for online UPS systems ensures consistent output voltage, frequency, and reliability. IS/IEC Power Quality Ensures pure sine wave output, low THD (<3 %), and stable voltage for sensitive electronics. EMC / EMI Compliance Reduces electromagnetic emissions so UPS does not affect nearby electronics Operating Temperature : 0 40 C Celsius (oC) Features : Main Features True Online Double Conversion Technology Provides continuous clean power with zero transfer time during mains fluctuations ideal for critical equipment that can t tolerate interruptions. Pure Sine Wave Output Delivers stable, low distortion AC power suitable for sensitive loads without risk of surges or distortion. IGBT Based Rectifier & Inverter High efficiency digital design improves reliability and reduces heat useful in demanding environments. Wide Input Voltage Range Works even with unstable mains ( 110 300 V AC) without switching to battery too quickly. High Efficiency Conductor : Type: Copper conductor, 3 core (Live, Neutral, Earth)

Send Inquiry

Microtek 3 KVA Online UPS with Internal batteries Price : 32294.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Size : Approximate Size & Weight (Online UPS 3 KVA with Internal Batteries Product Type : Microtek Online UPS 3 KVA Warranty : 2 YEAR Usage : BACKUP Color : BLACK Material : STEEL Phase : SINGLE PHASE Weight : 28.9 Kilograms (kg) Frequency (MHz) : 50 Hertz (HZ) Frequency : 50 Hertz (HZ) Protection : Power & Equipment Protection Features Rated Current : 3 KVA (3000 VA) Volt (v) Rated Voltage : 110 VAC300 VAC Volt (V) Power Rating : 3 KVA (3000 VA) Dimension (L*W*H) : 42 19 32 Centimeter (cm) Cable Type : Input Conductor (AC Mains) Singlephase AC input (230 V typical) Recommended wire size depends on load (rated current ~13 A at full load) Typical wire size: 2.5 mm copper conductor for short distances (<10 m), heavier if longer run. Must have earthing / grounding for safety. Output Conductor (UPS to Load) UPS outputs ~230 V AC, max rated current ~13 A Wire size: 2.5 mm copper is typically sufficient for most office/home equipment If supplying multiple highload devices, a 4 mm conductor may be considered to minimize voltage drop. Battery Conductors (Internal) Inside the UPS, VRLA/SMF batteries are connected via internal copper bus bars or flexible braided copper wires Designed to handle high DC currents safely (~12 15 A continuous for a 3 KVA system) Display Type : LCDLED Combo Display Standard : Doubleconversion online topology zero transfer time; best for sensitive electronics. Pure sine wave output ideal for computers, servers, networking gear. Wide input voltage tolerance good for areas with unstable mains. Internal SMF batteries (72 V) reduces need for external battery bank setup. Smart protection & monitoring status display and optional connectivity. Operating Temperature : 0 C to 40 C Celsius (oC) Features : Why These Features Matter Stable power: Double conversion and pure sine output protect sensitive electronics. Better battery health: Advanced charging and management reduce wear. Improved safety: Multiple protection layers prevent damage during surges, temperature rise, or overload. Easy monitoring: LCD and communication options keep you informed and connected. Conductor : Input Conductor (AC Mains) Singlephase AC input (230 V typical) Recommended wire size depends on load (rated current ~13 A at full load) Typical wire size: 2.5 mm copper conductor for short distances (<10 m), heavier if longer run. Must have earthing / grounding for safety. Output Conductor (UPS to Load) UPS outputs ~230 V AC, max rated current ~13 A Wire size: 2.5 mm copper is typically sufficient for most office/home equipment If supplying multiple highload devices, a 4 mm conductor may be considered to minimize voltage drop. Battery Conductors (Internal) Inside the UPS, VRLA/SMF batteries are connected via internal copper bus bars or flexible braided copper wires Designed to handle high DC currents safely (~12 15 A continuous for a 3 KVA system)

Send Inquiry

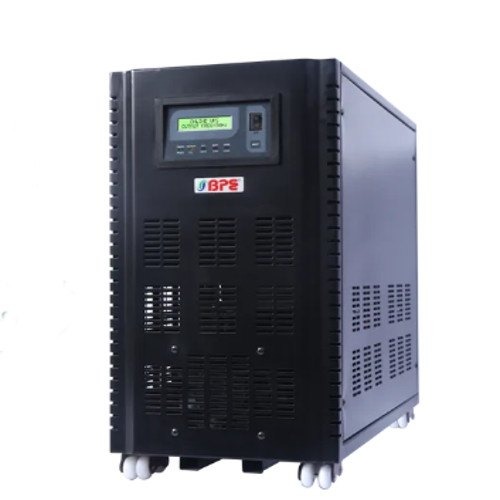

BPE (PBill05L10) 5KVA ONLINE UPS INBUILT Isolation Transfarmer Price : 40500.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : power supply Size : 260 692 844 (W D H) Product Type : BPE (PBill05L10) 5KVA ONLINE UPS INBUILT Isolation Transfarmer Warranty : 1 year Usage : backup Color : black Material : steel Phase : 1 phase Weight : 72.5 kg Kilograms (kg) Frequency (MHz) : 50 Hz Hertz (HZ) Frequency : 50 Hz Hertz (HZ) Protection : Overload, Short Circuit, High/Low Voltage, Battery Low, UPS Failure Rated Current : 21.7 A Ampere (amp) Rated Voltage : 160 V 280 V AC Volt (V) Power Rating : 5 kVA Dimension (L*W*H) : 260 692 844 (W D H) Millimeter (mm) Cable Type : Cable Size (sq.mm) Max Continuous Load Typical Use 4 sq.mm copper ~25 30 A Small UPS output branch 6 sq.mm copper ~32 40 A Recommended for UPS output 10 sq.mm copper ~50 A+ UPS input feed from panel 16 sq.mm copper ~70 A+ Heavy runs / longer distance Display Type : LCD: Voltage, Frequency, Load & Battery % / LED indicators & alarms Standard : Specification Value (Typical / Standard) Height ~844 mm Width ~260 mm Depth ~692 mm Net Weight ~66 kg 72.5 kg Form Factor Floor standing tower UPS Battery Type External SMF/VRLA (usually separate) Cooling Forced air / Internal fans Mounting Floor / skid (not wall mount) Operating Temperature : 0 C to 40 C Celsius (oC) Features : 1. True Online Double Conversion Architecture The UPS constantly converts incoming AC to DC and back to AC, eliminating transfer time during power failures your connected systems never see a break in supply

Send Inquiry

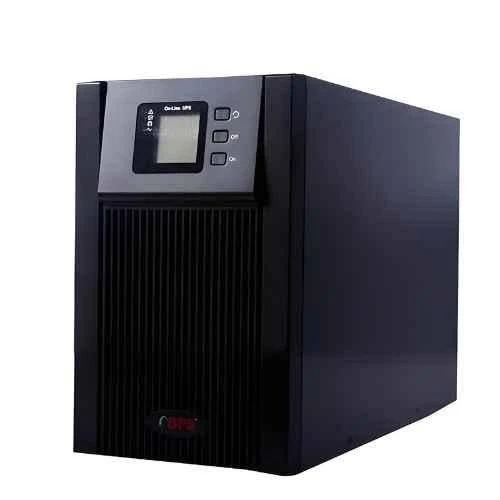

BPE (MP1101L3) 1KVA ONLINE UPS EXTERNAL BATTERY Price : 14119.0 INR/Unit Minimum Order Quantity : 1 Usage & Applications : POWER SUPPLY Size : 14.4 40 21.5 cm Product Type : BPE (MP1101L3) 1KVA ONLINE UPS EXTERNAL BATTERY Warranty : 1 YEAR Usage : BACKUP Color : BLACK Material : STEEL Phase : 1 PHASE Weight : 5.6 Kilograms (kg) Frequency (MHz) : 50Hz Hertz (HZ) Frequency : 50Hz Hertz (HZ) Protection : Protection Description Overload Protection Automatically shuts down or transfers to bypass when load exceeds capacity Rated Current : 6 Amps Ampere (amp) Rated Voltage : 220 240 V AC Volt (V) Power Rating : 800 Watts Dimension (L*W*H) : Parameter Size Width (W) 144 mm (14.4 cm) Depth (D) 400 mm (40 cm) Height (H) 215 mm (21.5 cm) Centimeter (cm) Cable Type : 50Hz Display Type : LCD Display Standard : https://chatgpt.com/?utm_source=google&utm_medium=paid_search&utm_campaign=GOOG_C_SEM_GBR_Core_CHT_BAU_ACQ_PER_MIX_ALL_APAC_IN_EN_032525&c_id=22370388714&c_agid=177344203135&c_crid=741704613489&c_kwid=kwd1927227100722&c_ims=&c_pms=1007820&c_nw=g&c_dvc=c&gad_source=1&gad_campaignid=22370388714&gbraid=0AAAAAI0E5eo_jE4LqEjHag9D0n1vGAzW&gclid=Cj0KCQjws83OBhD4ARIsACblj18cVmUDwoqiBU3y6Rr9Qmroqb2YN_VZ103oI4_FvwCKCPEZP8nKEaApJYEALw_wcB#:~:text=UPS%20Performance%20Standard,IEC%2062040%20Series,EMI%20/%20EMC%20Compliance Operating Temperature : 0 C to 40 C Celsius (oC) Features : Core Technology Features True Online Double Conversion Technology Continuous AC DC AC conversion ensures clean and stable power Zero Transfer Time (0 ms) No interruption during power failure Pure Sine Wave Output Safe for sensitive devices like PCs, servers, and medical equipment
