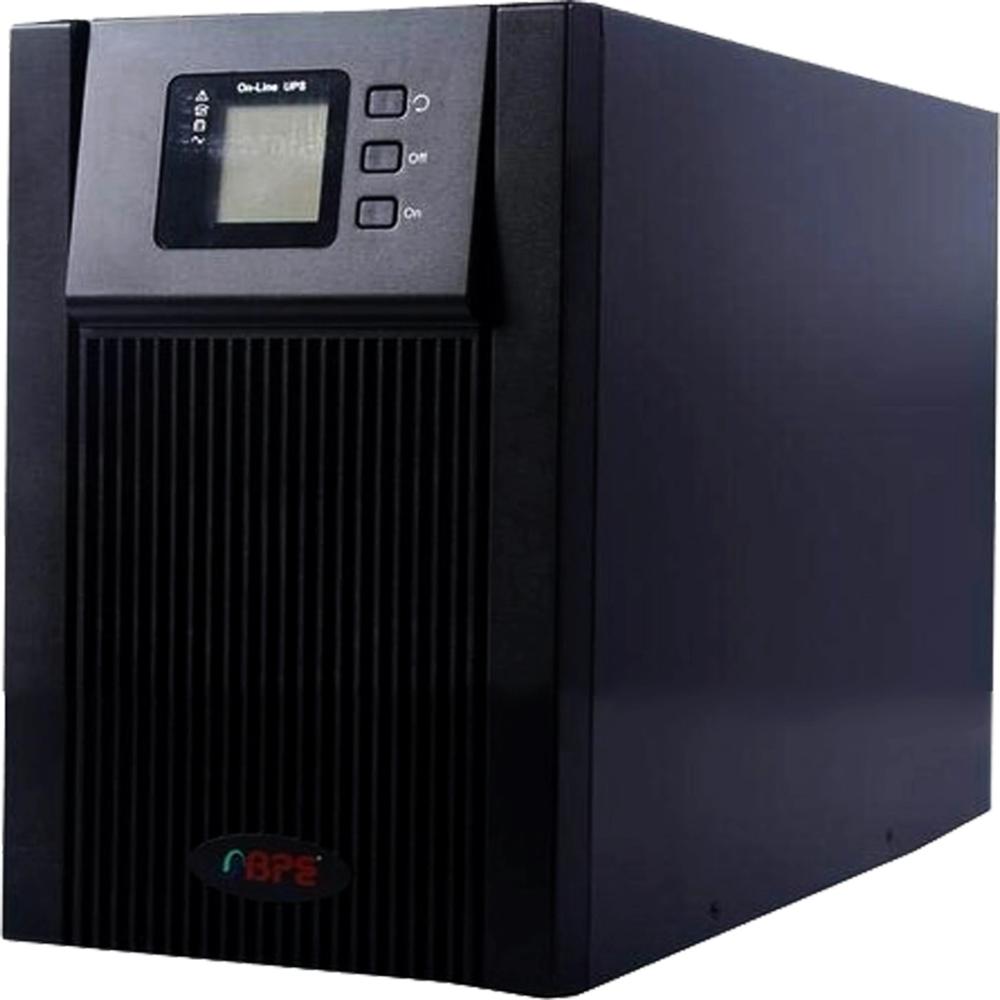

BPE MF1101B3 1KVA ONLINE UPS INBUILT BATTERY

15000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY
Power Rating 1 kVA
Standard Standards BPE MF1101L3 1kVA Online UPS Standard Description IEC 62040-1 Safety requirements for UPS systems IEC 62040-2 Electromagnetic compatibility (EMC) for UPS IEC 62040-3 UPS performance and test methods CE European Conformity certification for safety and health RoHS Restriction of Hazardous Substances compliance BIS / IS Compliance Indian safety and electrical equipment standards ISO 9001 Manufacturing Quality management system used by manufacturer
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, over-temperature, battery low
Usage BACKUP
Size Full Size (W D H): 144 400 215 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MF1101B3 1KVA ONLINE UPS INBUILT BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 15000.0 INR/Unit

BPE MF1101B3 1KVA ONLINE UPS INBUILT BATTERY Product Specifications

Usage & Applications POWER SUPPLY
Material STEEL
Rated Voltage 220 / 230 / 240 V AC Volt (V)
Warranty 1 YEAR
Protection Overload, short circuit, over-temperature, battery low
Weight 10.6 Kilograms (kg)
Phase 1 PHASE
Frequency (MHz) 50 Hertz (HZ)
Operating Temperature 0 C to 45 C Celsius (oC)
Product Type BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY
Size Full Size (W D H): 144 400 215 mm
Color BLACK
Power Rating 1 kVA
Frequency 50 Hertz (HZ)
Features Feature Description True Online Double Conversion Provides continuous clean power without switching delay. Pure Sine Wave Output Safe for sensitive devices like servers, computers, and medical equipment. DSP Digital Control Technology Improves system reliability and performance control. High Input Power Factor (>0.99) Reduces power loss and improves efficiency. Wide Input Voltage Range Operates from about 110 300 V AC, suitable for unstable power areas. ECO Mode Improves efficiency up to 99% to reduce energy consumption. LCD Display Shows input voltage, output voltage, battery level, load %, temperature, and status. LED Status Indicators Displays modes such as normal operation, bypass, battery mode, and fault. Advanced Battery Management (ABM) Protects battery life and optimizes charging. Cold Start Function UPS can start directly from battery without mains power. Automatic & Manual Bypass Allows power to bypass UPS during overload or maintenance. Communication Ports RS-232 / SNMP support for monitoring and remote management. Generator Compatible Works with generators and solar systems. Configurable Output Settings Output voltage, frequency conversion, ECO mode configurable through LCD. External Battery Support Uses 3 12V batteries (36V system) for extended backup time.
Usage BACKUP
Standard Standards BPE MF1101L3 1kVA Online UPS Standard Description IEC 62040-1 Safety requirements for UPS systems IEC 62040-2 Electromagnetic compatibility (EMC) for UPS IEC 62040-3 UPS performance and test methods CE European Conformity certification for safety and health RoHS Restriction of Hazardous Substances compliance BIS / IS Compliance Indian safety and electrical equipment standards ISO 9001 Manufacturing Quality management system used by manufacturer
Rated Current 4.3 A Volt (v)
Dimension (L*W*H) Dimension (L W H): 40 14.4 21.5 cm Millimeter (mm)
Display Type LCD + LED indicators
Cable Type RS 232 cable or SNMP network cable (Cat5e / Cat6)

BPE MF1101B3 1KVA ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 7 Days

Product Description

Product Overview

Model: MF1101B3
Type: Online UPS (Doubleconversion topology)
Capacity: 1kVA (800W usable)
Battery: Builtin batteries (typically 3 12V7Ah SLA cells)

This UPS is designed to provide clean, continuous power to sensitive electronics (desktop PCs, home office equipment, networking gear, CCTV/NVRs, etc.) and gives instant switchover with zero transfer time thanks to its online topology.

Heres a clean specification table for the BPE MF 1kVA Online UPS for 3 nos. External Batteries MF1101L3 series (true online UPS, external batteries required):

Specification	Detail
Model	MF1101L3
UPS Type	True Online (Double Conversion) UPS
Rated Capacity	1kVA / 0.8kW (approx.)
Input Voltage (Nominal)	220V / 230V / 240V AC
Input Voltage Range	~110V 300V AC (load dependent)
Input Frequency	50/60Hz autosense
Input Power Factor	> 0.99
Output Voltage	220V / 230V / 240V AC 1%
Output Frequency	50/60Hz (sync to mains)
Waveform Type	Pure sine wave
Output Power Factor	0.8 (standard)
Output THD	<2%
Crest Factor	3:1
Efficiency	~94% (dual conversion), ~99% (ECO mode)
Battery DC Voltage	36VDC (external)
Battery Type	3 12V SMF / VRLA batteries (not included)
Charger Current	~6A
Typical Battery Recharge Time	~48h to ~90%
Display / Indication	Multifunction LCD & LED status
Protection & Alarms	Overload, short circuit, under/over voltage, battery low, fault
Communication Ports	RS232 (optional SNMP/USB)
Transfer Time	ACBattery: 0ms
Input/Output Connections	Hardwired 1Ph + N + G
Operating Temp.	0C 45C
Operating Humidity	095% RH noncondensing
Dimensions (WDH)	~400 144 215mm
Weight	~5.6kg
Standards	IEC/EN62040 series, BIS, RoHS
Warranty	Typically 12years (varies by seller)

Notes

This model requires external batteries (usually 3 12V SMF/VRLA) theyre not built in.
Backup time depends on battery capacity (higherAh = more runtime).
True online design means no switching time on power loss ideal for sensitive electronics.

If you want, I can calculate estimated backup time for your specific devices (just tell me total watts and battery Ah you plan to use)!

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

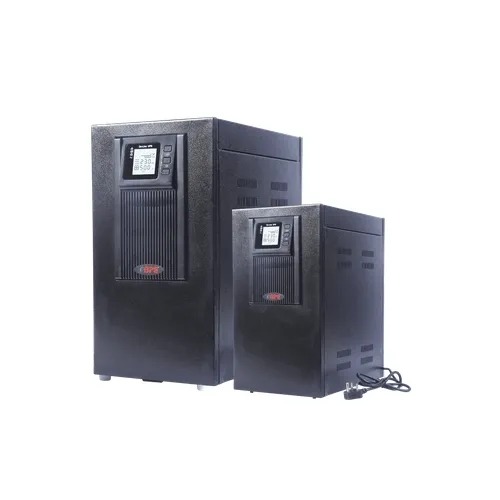

BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price : 28000.0 INR/Unit Minimum Order Quantity : 1 Product Type : BPE MFX1103L8 3KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Weight : 26.7 kg Kilograms (kg) Rated Voltage : 110 285 V Volt (V) Usage : BACKUP Phase : 1 PHASE Protection : Audible & visible alarms for faults, overload, low battery Warranty : 1 YEAR Display Type : Multi function LCD status console Frequency : 50/60 Hz Hertz (HZ) Power Rating : 3 kVA (~2.4 kW at 0.8 PF) Size : Dimension Measurement Height 205 mm Width 180 mm Depth 410 mm Weight ~26.7 kg Frequency (MHz) : 50/60 Hz Hertz (HZ) Operating Temperature : 0 40 C Celsius (oC) Material : STEEL Usage & Applications : POWER SUPPLY Dimension (L*W*H) : Parameter Details Height 205 mm Width 180 mm Depth 410 mm Weight ~26.7 kg Millimeter (mm) Rated Current : 10.43A Microampere (A) Color : BLACK Cable Type : Rated for 16 A 20 A, 1.5 mm to 2.5 mm , depending on installation distance; suitable for singlephase 230 V AC supply Features : Feature Description True Online UPS Doubleconversion (VFI) topology provides continuous, clean, regulated AC power. Inbuilt Isolation Transformer Galvanic isolation protects sensitive equipment from spikes, surges, and ground loop issues. Pure Sine Wave Output Ensures compatibility with sensitive IT, telecom, and industrial equipment. Wide Input Voltage Range Typically 110 285 V AC, allowing stable operation even during mains fluctuations. High Input Power Factor 0.99 reduces load on mains and improves efficiency. LCD Display Shows input/output voltage, frequency, load level, battery status, and UPS operating mode. Static Bypass & Cold Start Allows UPS to operate even without mains supply; automatic bypass protects load in fault conditions. Battery Flexibility Supports external batteries of 7 100 Ah for customizable backup duration. Overload & ShortCircuit Protection Builtin safeguards against faults, overloads, and battery failures. Generator & Solar Compatible Can be used with generators or renewable sources without issues. Audible & Visual Alarms Alerts for battery low, overload, faults, and abnormal conditions. Compact & Reliable Design Lightweight (~26.7 kg) and suitable for office, industrial, and data center environments. High Efficiency Up to ~94% in doubleconversion mode, reducing energy loss and heat. Standard : IEC 620401 (UPS safety requirements)
