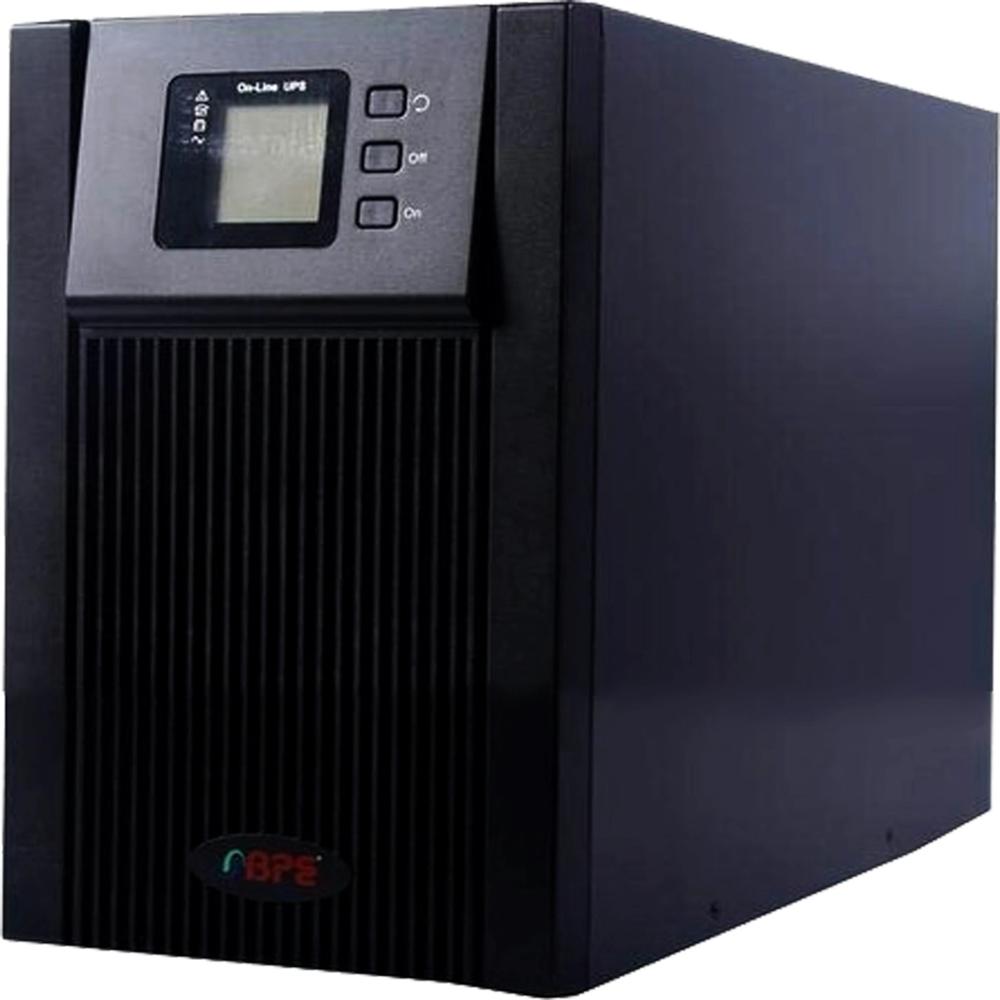

BPE (MF1103L6) 3KVA ONLINE UPS EXTERNAL BATTERY

Product Description

Product Overview

A true online UPS (Uninterruptible Power Supply) with pure sine wave output designed to protect sensitive electronic and IT equipment against power problems like outages, voltage fluctuations, brownouts and surges. Its meant for commercial and industrial use where clean, continuous power is crucial.

Key Features & Description

• Capacity: 3kVA ( ~2400W output with 0.8 power factor) suitable for servers, networking systems, computers, lab equipment, ATMs, etc.

• Topology: True Double Conversion Online UPS always drives the load from inverter, eliminating switchover delay to battery.

• Input: Singlephase AC (typically 220240V), with a wide voltage range to handle unstable mains without switching to battery prematurely.

• Output: Stable 230V AC pure sine wave with zero transfer time critical for sensitive electronics.

• Battery: Takes external batteries only batteries are not included, and runtime depends on the battery bank you connect (usually 6 12V SMF batteries for 72V DC battery bus).

• Protection & Monitoring: Builtin protections (overload, short circuit, surge) and LCD/LED status display for load, voltage, frequency and battery state. Communication ports like RS232 or USB are usually available.

• Charging: Integrated battery charger (approx. ~6A) and battery management features ensure efficient charging and long battery life.

• Efficiency & Power Quality: High efficiency in both online mode (~90%+) and optional ECO mode; delivers clean power with low distortion.

• Noise & Operation: Compact tower form factor with quiet operation (<55dB) and standard operating temperature/humidity tolerances.


  Specification Details Technical Table

  Specification	Details
  Model	MF1103L6
  UPS Type	True DoubleConversion Online UPS
  Rated Power	3kVA ( 2.4kW @ 0.8pf)
  Input Phase	Single Phase (1:1)
  Input Voltage Range	110300V AC (wide range)
  Input Frequency	50Hz 10% (Autosensing)
  Input Power Factor	0.99
  Output Voltage	230V 1%
  Output Frequency	50Hz 0.1%
  Output Waveform	Pure Sine Wave
  Output Power Factor	0.8 (Standard)
  Efficiency	Up to ~90% (Online Mode)
  Transfer Time	0ms (Continuous Online)
  Crest Factor	3:1
  Output THD	<23% (Linear Load)
  Output Sockets	4 Indian 3pin sockets
  Battery DC Bus	72V DC (External Batteries)
  Battery Type Supported	SMF / Leadacid (12V each)
  Recommended Battery Count	~6 12V batteries (external)
  Charger Capacity	~6A charger
  Battery Recharge Time	~46hours to 90%
  Communications	RS232 / USB; optional SNMP
  Display	LCD/LED status panel
  Alarms	Audible + visible alarms
  Noise Level	<5055dB approx.
  Dimensions (HWD)	~399 192 469mm
  Weight	~26.7kg
  Operating Temp.	0C 40C
  Humidity	5% 95% RH (noncondensing)
  Protection	Overload, short circuit, surge protection
  Compliance / Certifications	BIS / IEC standards

  ---

  WARRANTY :- 1YEAR
  Notes

  • Batteries are not included runtime depends on the external battery size (Ah rating).

  • Backup duration varies widely: small batteries give short runtimes; larger Ah gives many minutes to hours.

  • Typical suitable applications include servers, networking gear, CCTV, labs, POS systems, etc.
