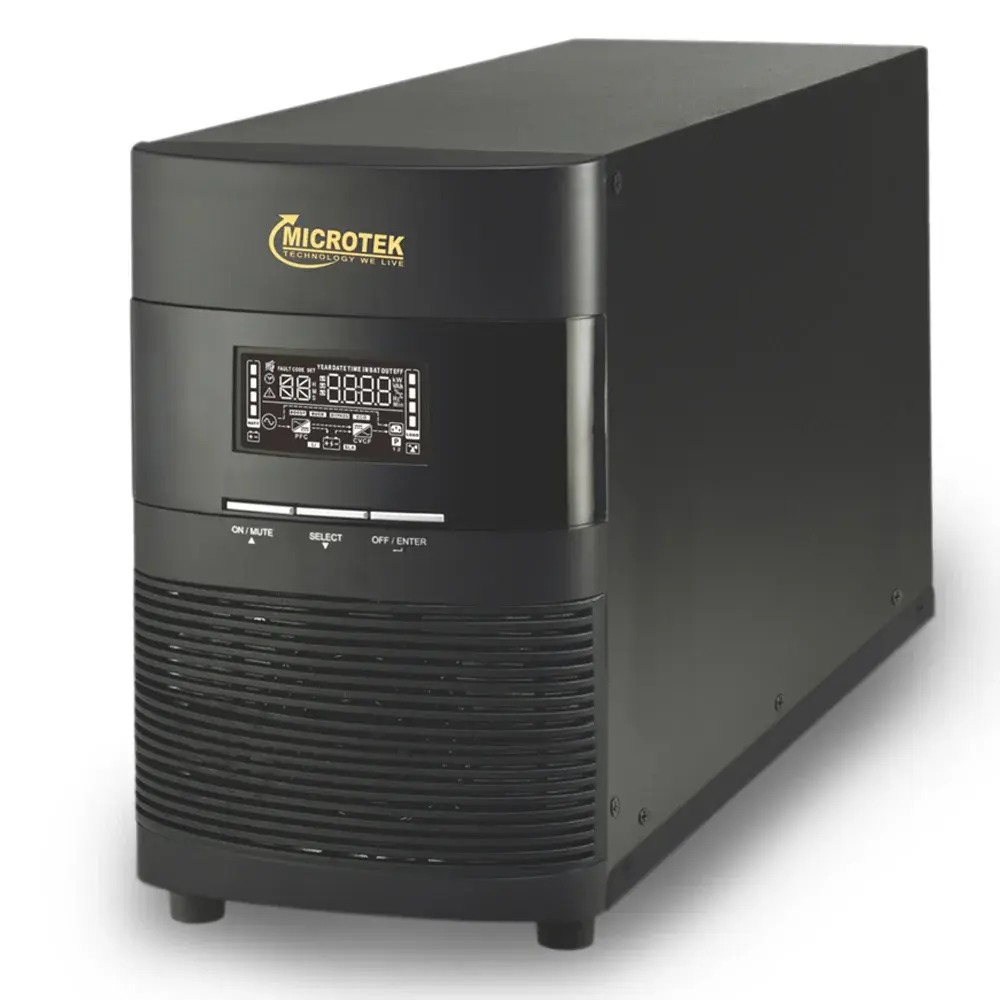

Name: MAX LIFE 1 KVA ONLINE UPS
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 23258.0 INR
Availability: InStock

23258.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type ONLINE UPS
Power Rating Rated Output Capacity: 1 KVA (1000 VA)
Standard Standard Physical & Package Dimensions (Product Spec)
Frequency (MHz) 50 Hz Hertz (HZ)
Protection Built-In Protection Features These are common protection mechanisms in double-conversion online UPS designs from Microtek (especially MAX LiFe / MAX+ series): True Online Double-Conversion Provides continuous power conditioning (AC DC AC) to eliminate spikes, sags, and electrical noise. Short-Circuit Protection Detects and cuts output in the event of a short, preventing damage to UPS and connected gear. Overload Protection UPS shuts down or switches to bypass if input/current exceeds safe limits. Over-Temperature Protection Automatically shuts down or limits operation if internal heat gets too high. EMI / RFI Noise Filtering Suppresses electromagnetic and radio frequency interference on the power line. Over-Voltage & Under-Voltage Cut-Off Prevents output when mains voltage is outside safe bounds (protects electronics from spikes/sags). DC Fan Failure Protection Shuts down or alarms if cooling fan fails, avoiding overheating. Advanced Battery Management (ABM) Protects battery life and prevents over-charging or deep discharge. Generator Compatibility Automates safe operation with generator power without erratic switching. Optional Static Bypass Enable/Disable Protects load if the UPS inverter has an internal fault by routing directly to mains (configurable). RS-232/SNMP Communication (optional) Alerts and logging for system faults and protection events. Why These Matter Clean & continuous power: Online designs mean zero switch-over time and stable sine-wave output ideal for PCs, routers, NAS, etc. Battery safety: ABM helps prevent battery damage from improper charging or deep discharge. Device safety: Surge/over-voltage cut-off and noise filtering reduce risk of electrical stress on sensitive electronics.
Usage BACKUP
Size Length: 397 mm Width: 145 mm Height: 220 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

MAX LIFE 1 KVA ONLINE UPS Price And Quantity

Price 23258.0 INR/Unit
Minimum Order Quantity 1 Unit

MAX LIFE 1 KVA ONLINE UPS Product Specifications

Product Type ONLINE UPS
Rated Current 3.5A Ampere (amp)
Usage & Applications POWER SUPPLY
Features Core Performance & Technology / DispSummary Feature HighlightsProtection & Reliability/ lay & Monitoring/ Efficiency & Eco Modes
Protection Built-In Protection Features These are common protection mechanisms in double-conversion online UPS designs from Microtek (especially MAX LiFe / MAX+ series): True Online Double-Conversion Provides continuous power conditioning (AC DC AC) to eliminate spikes, sags, and electrical noise. Short-Circuit Protection Detects and cuts output in the event of a short, preventing damage to UPS and connected gear. Overload Protection UPS shuts down or switches to bypass if input/current exceeds safe limits. Over-Temperature Protection Automatically shuts down or limits operation if internal heat gets too high. EMI / RFI Noise Filtering Suppresses electromagnetic and radio frequency interference on the power line. Over-Voltage & Under-Voltage Cut-Off Prevents output when mains voltage is outside safe bounds (protects electronics from spikes/sags). DC Fan Failure Protection Shuts down or alarms if cooling fan fails, avoiding overheating. Advanced Battery Management (ABM) Protects battery life and prevents over-charging or deep discharge. Generator Compatibility Automates safe operation with generator power without erratic switching. Optional Static Bypass Enable/Disable Protects load if the UPS inverter has an internal fault by routing directly to mains (configurable). RS-232/SNMP Communication (optional) Alerts and logging for system faults and protection events. Why These Matter Clean & continuous power: Online designs mean zero switch-over time and stable sine-wave output ideal for PCs, routers, NAS, etc. Battery safety: ABM helps prevent battery damage from improper charging or deep discharge. Device safety: Surge/over-voltage cut-off and noise filtering reduce risk of electrical stress on sensitive electronics.
Frequency (MHz) 50 Hz Hertz (HZ)
Operating Temperature 0 C to 40 C Celsius (oC)
Display Type LCD display provides clear information on UPS status such as load level, battery level, AC mode, battery mode, bypass mode, fault indications and other operating parameters.
Warranty 1 YEAR
Frequency 50 Hertz (HZ)
Power Rating Rated Output Capacity: 1 KVA (1000 VA)
Material STEEL
Conductor AC Input (Mains): Copper conductor, 2.5 mm 4 mm Connects UPS to the mains safely Must be PVC or FRLS insulated AC Output (Load): Copper conductor, 2.5 mm Feeds devices like PCs, routers, or small servers Flexible and insulated Battery Connection (48 V DC External): Stranded copper conductor, 10 AWG 6 AWG Handles high DC current safely Short and direct for minimal voltage drop Earthing / Grounding: Copper conductor, minimum 2.5 mm Insulated for safety Connects UPS chassis to earth General Notes: Use flexible, stranded copper cables for battery and load connections Avoid aluminum; copper ensures lower resistance and better reliability Ensure conductors are rated for expected current and follow local electrical codes
Color BLACK
Weight 6.4 Kilograms (kg)
Phase 1 PHASE
Rated Voltage 110-280VAC Volt (V)
Usage BACKUP
Standard Standard Physical & Package Dimensions (Product Spec)
Size Length: 397 mm Width: 145 mm Height: 220 mm
Cable Type Here s a bullet-point summary of recommended cable types for the Max Life 1 KVA Online UPS: AC Input (Mains Supply): Flexible copper cable, PVC or FRLS insulated Standard 230 V AC power cable (typically 1.5 m with plug) Connects UPS safely to the mains supply AC Output (to Devices): Flexible copper wire, PVC insulated Standard 230 V output cable / power lead Feeds connected devices like PCs, routers, and small servers Battery Connection (External / 48 V DC): Stranded high-current copper cable, flexible 10 AWG 6 AWG recommended for safe current handling PVC or rubber insulation suitable for DC battery voltage Keep cable short and direct to reduce voltage drop and heating Earthing / Grounding: Copper conductor, minimum 2.5 mm Insulated/shielded for safety Connects UPS chassis to earth for protection General Tips: Use stranded copper cables for battery connections for flexibility and reliability Avoid aluminum cables; copper is preferred for lower resistance Ensure all cables are rated for expected current and meet local electrical codes
Dimension (L*W*H) (L W H) of ~39.7 14.5 22 cm Centimeter (cm)

MAX LIFE 1 KVA ONLINE UPS Trade Information

Delivery Time 7 Days

Product Description

The Max Life 1 KVA Online UPS from Microtek is a true online double-conversion UPS designed to give stable, uninterrupted power backup for sensitive electronics like desktops, servers, POS systems, CCTV, networking gear, and other critical loads.
key highlights

Power & Protection

True Online Double-Conversion Technology provides pure sine-wave output and uninterrupted power even during mains drop or failure, ideal for sensitive electronics like PCs, POS systems, CCTV, networking devices, etc.
Microprocessor-controlled design for optimized reliability and performance.
Wide input voltage range handles fluctuations in mains without switching over unnecessarily.

Smart Battery & Charging

Advanced Battery Management (ABM) improves battery life and charging efficiency.
High power factor charger (up to 1000 W) with low ripple current.
Lithium-ion battery compatible gives flexibility for battery type selection and longer life.

Monitoring & Control

Comprehensive display shows UPS status (like load, battery, faults).
Configurable via LCD settings on higher models (for charging current, modes).

Build & Compatibility

Zero transfer time instant switchover from mains to battery without disruption.
Generator-compatible for backup systems that include generators.
Robust protection suite against overload, short circuit, over/under voltage and electrical noise.

Practical Details

External 48 V battery bank required (batteries often sold separately).
Compact build (6.4 kg) that fits home/office setups.

In simple terms: This UPS keeps your critical gear running with clean, stable power and handles rough input conditions better than offline or line-interactive UPS systems which is why true online tech is preferred in areas with frequent fluctuations.

Want a quick comparison with a line-interactive UPS (cheaper but different tech)? I can break that down too!

MAX LiFe 1 KVA Online UPS Technical Specifications

Category	Specification
Rated Capacity	1 KVA / 0.8 kW (800 W) load capability
Output Power Factor	0.99
Output Voltage	208 V / 220 V AC
Output Frequency	Sync to mains: 50/60 Hz 3 Hz; Battery mode: 0.1 %
Output Waveform	Pure sine wave
Output Voltage Distortion (THD)	< 2 %
Crest Factor	3:1
Transfer Time	0 ms (true online / double-conversion)
Input Voltage	240 V AC nominal
Input Voltage Range	119 295 V (output derated) / 160 285 V main ops
Input Frequency	50/60 Hz 3 Hz
Input Power Factor	> 0.99
Battery DC Bus	48 V DC (external batteries)
Battery Compatibility	SMF / Lithium-ion compatible
Max Charger Current	20 A (adjustable via LCD)
Efficiency	> 90 % (approx at full load)
Noise Level	< 50 dB (typical)
Dimensions (Approx.)	397 145 220 mm (LWH)
Weight (Net)	6.4 kg
Operation Temperature	0 40 C
Display/Control	LCD comprehensive status & settings

Key features:
True double-conversion online design: No transfer delay and clean sinusoidal output for sensitive electronics.
Advanced battery management: Helps prolong battery life and allows configurable charger current.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MAX LIFE 2 KVA ONLINE UPS Price : 31467.0 INR/Unit Minimum Order Quantity : 1 Rated Voltage : 220 / 230 / 240 V AC Volt (V) Weight : 8.6 Kilograms (kg) Product Type : ONLINE UPS Usage : BACKUP Frequency (MHz) : 50 Hertz (HZ) Color : BLACK Phase : SINGLE phase Size : (L W H): 53 cm 14.5 cm 22 cm (length width height) Rated Current : 2 KVA ( 1600 W Ampere (amp) Usage & Applications : POWER SUPLY Frequency : 50 Hertz (HZ) Warranty : 1 YEAR Material : STEEL Protection : Overload Protection/ ShortCircuit PrBattery Low / Deep Discharge ProtectionotOUnder Voltage Protection (UVP)/ ver Voltage Protection (OVP)/ ection / Power Rating : 2 KVA / 2000 VA Standard : Standard Features / Specifications Display Type : comprehensive LCD screen Dimension (L*W*H) : Length: 53 cm Width: 14.5 cm Height: 22 cm Weight: ~8.6 kg Centimeter (cm) Operating Temperature : 0 C to 45 C Celsius (oC) Features : True Double Conversion Online TechMicroprocessor Controlnology/ Conductor : AC Input (Mains): Use 2.5 mm 4 mm copper wire for singlephase 230 V input. AC Output (Load): Use 2.5 mm copper wire, depending on connected devices. Battery Connection (48 V DC): Use 10 AWG 6 AWG copper wire for safe handling of high DC current. Earthing / Grounding: Minimum 2.5 mm copper wire; essential for safety and lightning protection. Wire Quality: Use flexible, highquality copper conductors rated for the expected current. Battery Wiring: Keep short and direct to reduce losses and heating. Cable Type : AC Input (Mains): Use 2.5 mm 4 mm copper wire for singlephase 230 V input. AC Output (Load): Use 2.5 mm copper wire, depending on connected devices. Battery Connection (48 V DC): Use 10 AWG 6 AWG copper wire for safe handling of high DC current. Earthing / Grounding: Minimum 2.5 mm copper wire; essential for safety and lightning protection. Wire Quality: Use flexible, highquality copper conductors rated for the expected current. Battery Wiring: Keep short and direct to reduce losses and heating.

Send Inquiry

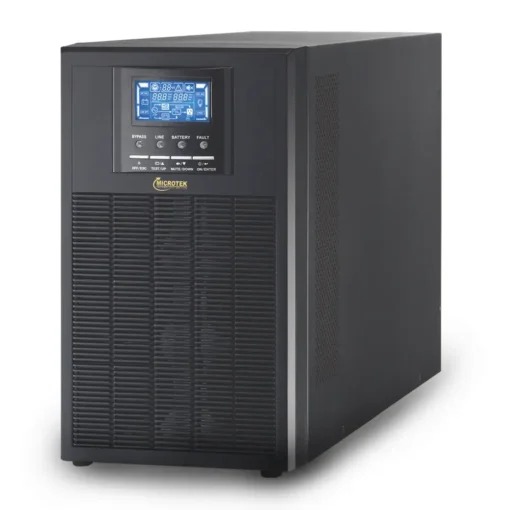

MAX LIFE 5 KVA ONLINE UPS Price : 68403.0 INR/Unit Minimum Order Quantity : 1 Rated Voltage : 220 V AC Volt (V) Weight : 12.1 Kilograms (kg) Product Type : online ups Usage : backup Frequency (MHz) : 50hz Hertz (HZ) Color : black Phase : single phase Size : Dimensions (L W H): ~465 mm 190 mm 318 mm (approx.) standard chassis size for the UPS Rated Current : 5000 VA Volt (v) Usage & Applications : power supply Frequency : 50 Hertz (HZ) Warranty : 1 year Material : steel Protection : Protection Features MAX LiFe 5 KVA Online UPS Overload Protection Automatically limits current if load exceeds rated capacity, preventing damage to UPS and connected devices. ShortCircuit Protection Detects and immediately disconnects the output in case of a shortcircuit to prevent damage or fire hazards. Overvoltage & Undervoltage Protection Protects connected equipment from voltage spikes or dips outside safe limits. Battery Overcharge / Deep Discharge Protection Prevents battery damage by controlling charge/discharge limits; prolongs battery life. Surge & Spike Protection Safeguards electronics from sudden transient voltage surges caused by lightning or mains fluctuations. Thermal / Over Temperature Protection Shuts down or throttles UPS operation if internal temperature exceeds safe limits. Reverse Polarity Protection Ensures the UPS or connected battery isn t damaged if battery is connected incorrectly. Automatic Bypass / Generator Compatible In case of internal fault, UPS automatically switches to bypass mode to continue supplying mains power. LED / LCD Fault Indication Alerts user about overload, battery fault, or other abnormal conditions for quick corrective action. Standard : Safety Standards IEC/EN 62040 1: Safety requirements for UPS systems. IS/IEC 60950 1: Safety of information technology equipment. EMC / Electrical Compatibility IEC/EN 62040 2: Electromagnetic compatibility for UPS. Meets limits for conducted and radiated emissions. Performance / Quality IEC/EN 62040 3: Performance and test methods for UPS. ISO 9001 / ISO 14001 certified manufacturer (Microtek). Battery Standards Lead acid batteries conform to IS 15549 / IEC 60896 21/22. Lithium ion compatible batteries follow IEC 62133 safety requirements. Environmental Standards RoHS compliant: Restriction of hazardous substances. WEEE compliant: Waste Electrical and Electronic Equipment directive. Other Features Generator compatible (meets standards for stable operation with gensets). Designed for indoor use at 0 40 C and 0 95 % noncondensing humidity. Display Type : LCD (Liquid Crystal Display) shows important UPS information such as: Load level Battery level Operating mode (AC/Battery/Bypass) Fault and warning indicators Configurable settings menu (charging, alarms, etc. Dimension (L*W*H) : (L W H): 53 cm 14.5 cm 22 cm Centimeter (cm) Operating Temperature : 0 40 C Celsius (oC) Features : Core Performance & Output True Double Conversion Online Technology continuous power conversion with zero break transfer to battery. Pure Sine Wave Output clean output safe for all sensitive electronics. Unity Power Factor delivers maximum usable power to connected loads. Wide Input Voltage Range stable operation even with fluctuating mains. Battery & Charging Supports 48 V External Batteries (lead acid or lithium ion compatible). Configurable Charging Current via LCD set charger current to match battery capacity. Powerful 60 A AC Charger for faster recharge. Cold Start Functionality UPS can start directly from battery when mains is absent. Smart & Scalable Intelligent LCD Display shows load, battery level, operating mode (AC/Battery/Bypass), and fault alerts. Optional Parallel Operation (in some models) allows multiple UPS units for extra capacity or redundancy (up to 9 units). Protection & Compatibility Generator Compatible works smoothly with gensets. Overload and Short Circuit Protection protects both UPS and connected equipment. Advanced Battery Management (ABM) protects batteries, improves life & performance (especially for lithium ion). Efficiency & Design High Efficiency reduces energy losses and heat. Stable Output Waveform low harmonic distortion and clean power. Suitable for Critical Loads ideal for servers, networking gear, CCTV/DVR, home offices, and small business systems. Conductor : Conductor / Cable Guidelines AC Input Conductor (Mains Supply) Type: Multicore, flexible copper conductor (H05VVF / ISI 694:1986 standard in India) Core Count: 3core (Live, Neutral, Earth) Recommended Size: 4 mm 6 mm copper (depending on distance and load, rated for ~22 25 A) Insulation: PVC, rated for 300 500 V AC AC Output Conductor (Load Side) Type: Multistrand copper or armored cable for higher safety Core Count: Singlephase, usually 3core or individual cables per phase + neutral + earth Recommended Size: 2.5 mm 4 mm copper for typical office/server loads (~20 A) Termination: Properly crimped lugs or sockets Battery / DC Conductor (48 V Battery Bank) Type: Flexible, thick copper cable with low resistance Recommended Size: 25 35 mm (depending on battery Ah and distance) Insulation: Heatresistant PVC or XLPE Termination: Crimped lugs + proper torque; fuse or breaker close to battery for protection Earth / Ground Conductor Type: Solid or stranded copper wire Recommended Size: 4 mm copper Connection: UPS chassis to building earth/ground rod Cable Type : thick multi core power cable (typically 3 core: live, neutral, earth) / hard wired terminals
