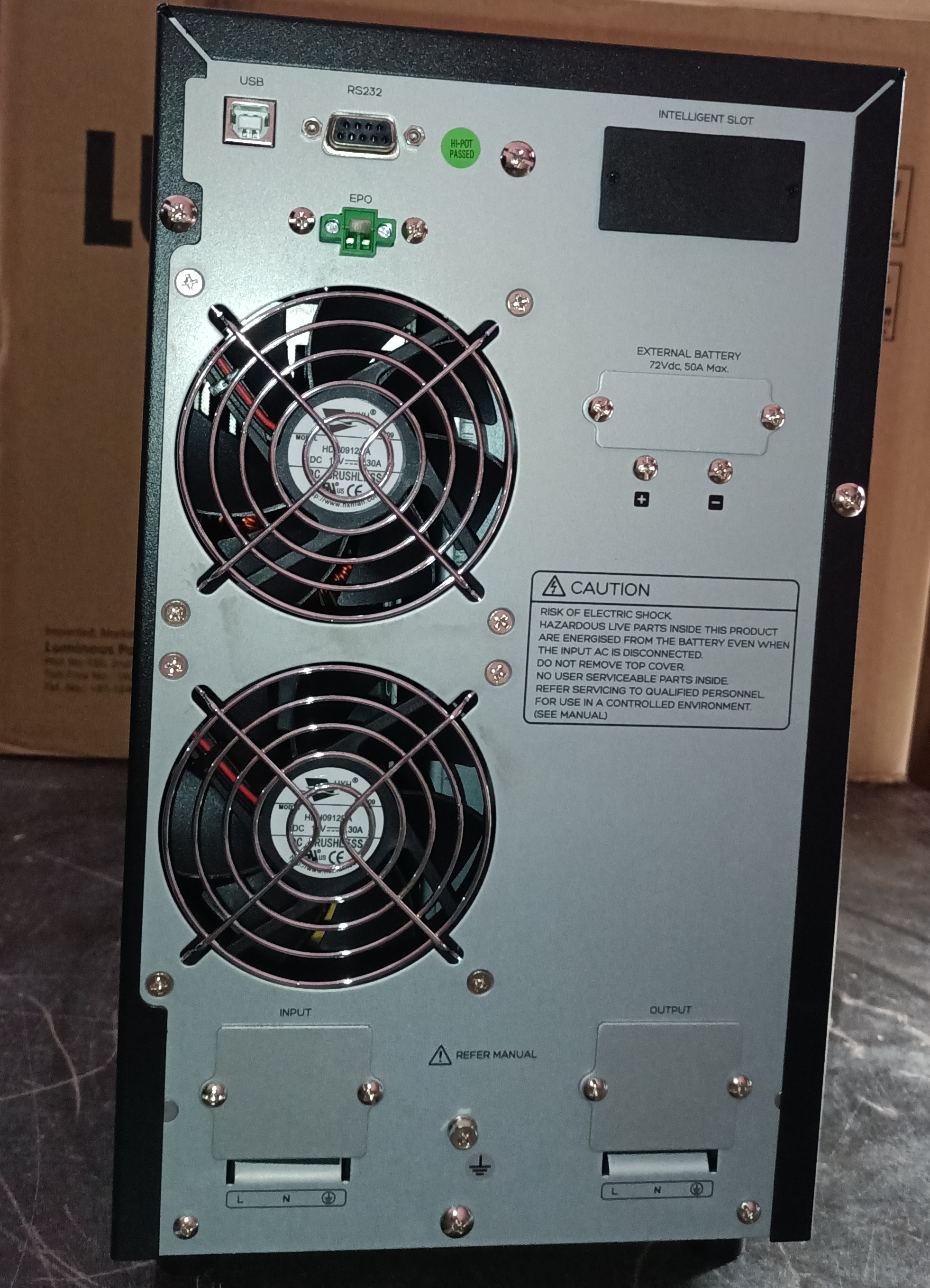

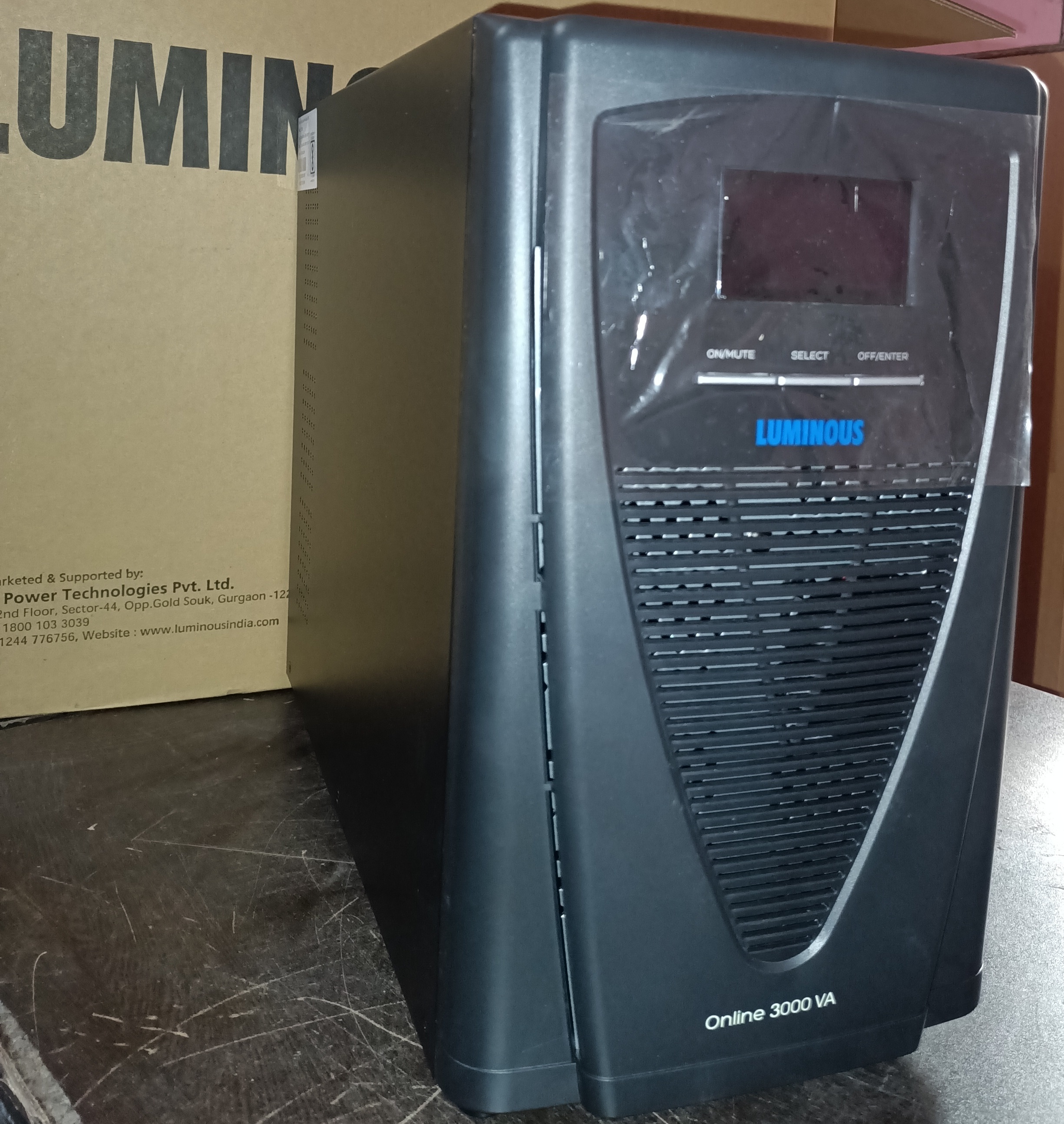

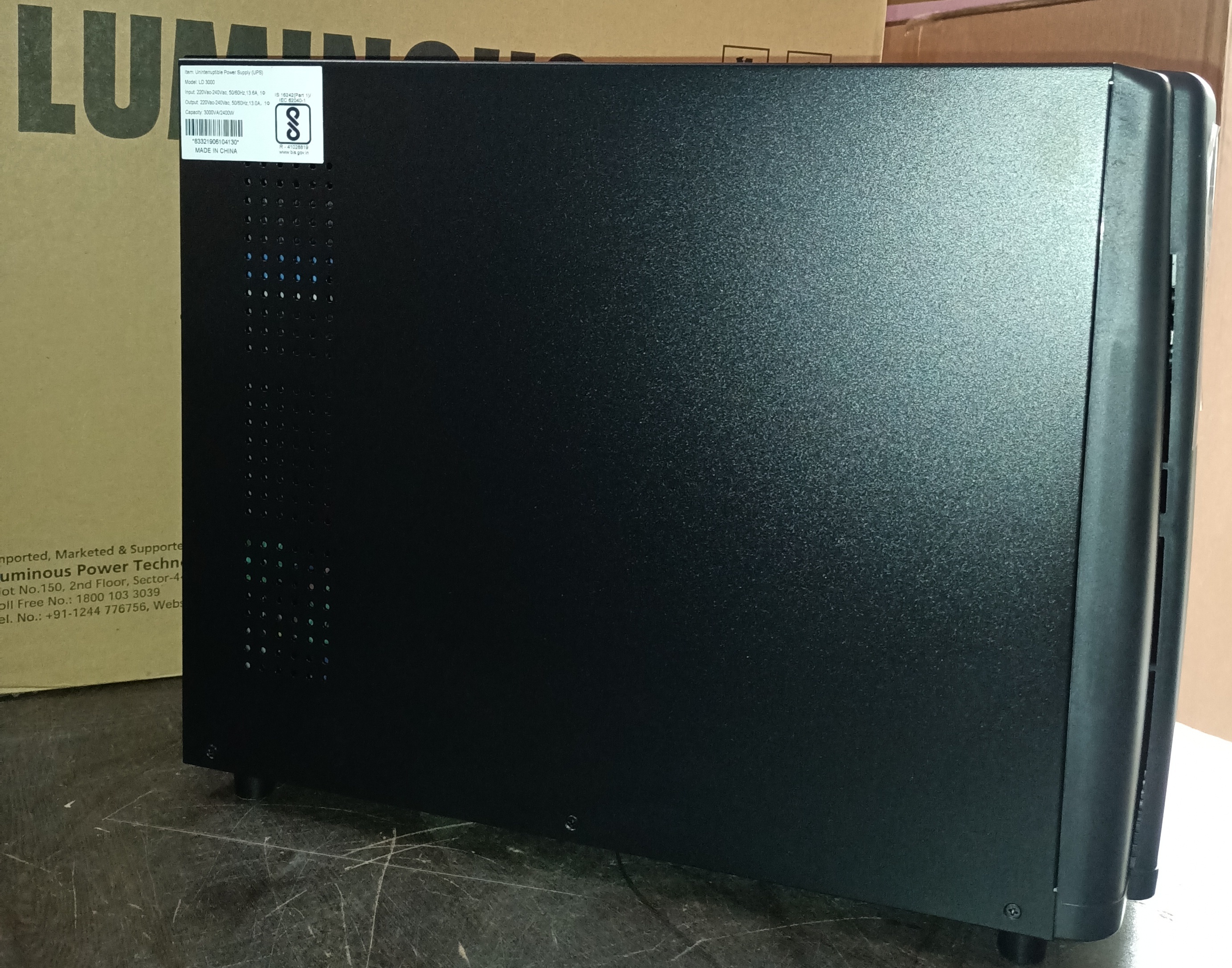

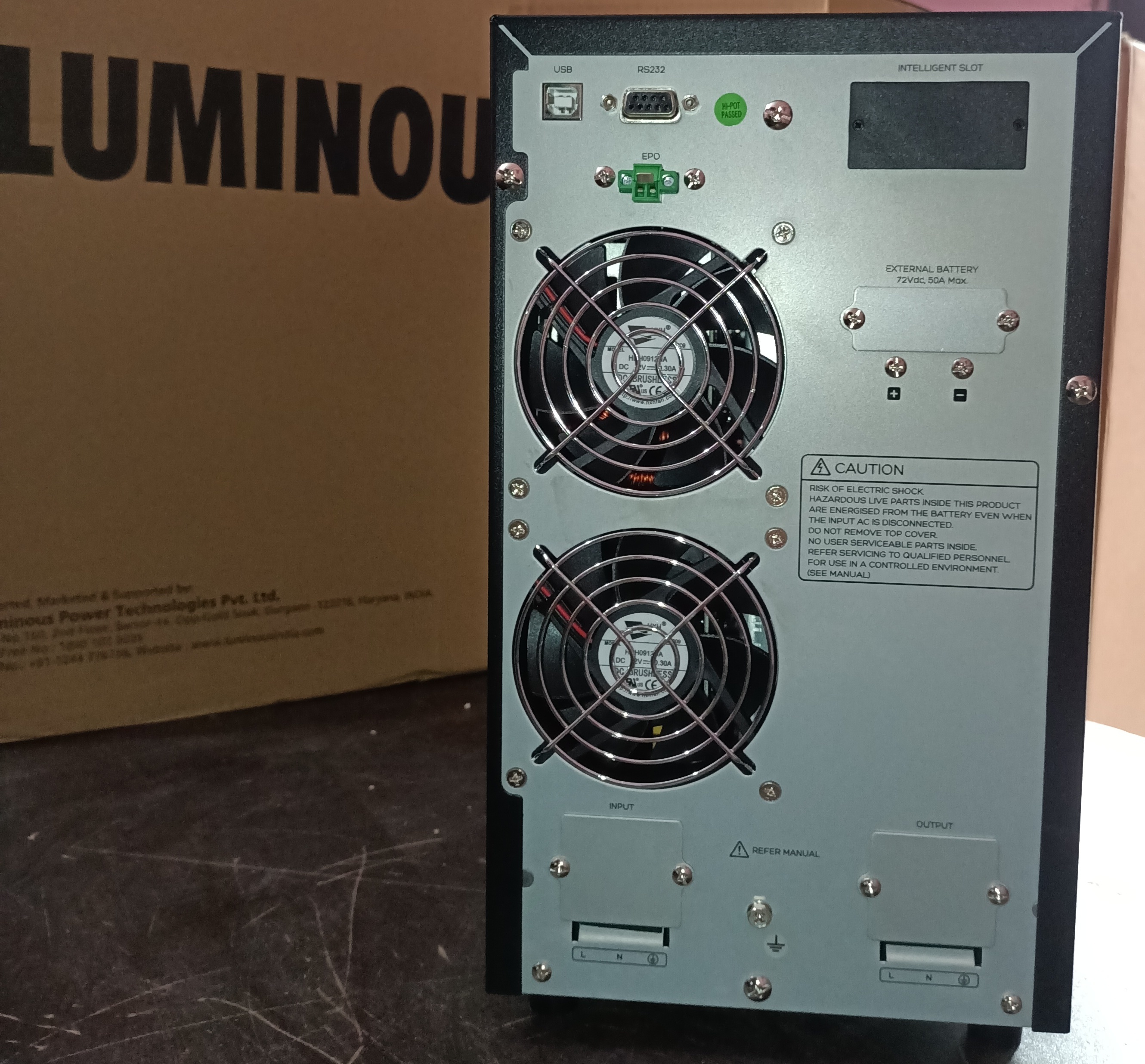

Luminous Online UPS

MAX LIFE 1 KVA ONLINE UPS Price : 23258.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 YEAR Color : BLACK Usage : BACKUP Material : STEEL Usage & Applications : POWER SUPPLY Product Type : ONLINE UPS Size : Length: 397 mm Width: 145 mm Height: 220 mm Frequency (MHz) : 50 Hz Hertz (HZ) Rated Current : 3.5A Ampere (amp) Weight : 6.4 Kilograms (kg) Display Type : LCD display provides clear information on UPS status such as load level, battery level, AC mode, battery mode, bypass mode, fault indications and other operating parameters. Protection : BuiltIn Protection Features These are common protection mechanisms in doubleconversion online UPS designs from Microtek (especially MAX LiFe / MAX+ series): True Online DoubleConversion Provides continuous power conditioning (AC DC AC) to eliminate spikes, sags, and electrical noise. ShortCircuit Protection Detects and cuts output in the event of a short, preventing damage to UPS and connected gear. Overload Protection UPS shuts down or switches to bypass if input/current exceeds safe limits. OverTemperature Protection Automatically shuts down or limits operation if internal heat gets too high. EMI / RFI Noise Filtering Suppresses electromagnetic and radio frequency interference on the power line. OverVoltage & UnderVoltage CutOff Prevents output when mains voltage is outside safe bounds (protects electronics from spikes/sags). DC Fan Failure Protection Shuts down or alarms if cooling fan fails, avoiding overheating. Advanced Battery Management (ABM) Protects battery life and prevents overcharging or deep discharge. Generator Compatibility Automates safe operation with generator power without erratic switching. Optional Static Bypass Enable/Disable Protects load if the UPS inverter has an internal fault by routing directly to mains (configurable). RS232/SNMP Communication (optional) Alerts and logging for system faults and protection events. Why These Matter Clean & continuous power: Online designs mean zero switchover time and stable sinewave output ideal for PCs, routers, NAS, etc. Battery safety: ABM helps prevent battery damage from improper charging or deep discharge. Device safety: Surge/overvoltage cutoff and noise filtering reduce risk of electrical stress on sensitive electronics. Dimension (L*W*H) : (L W H) of ~39.7 14.5 22 cm Centimeter (cm) Frequency : 50 Hertz (HZ) Rated Voltage : 110280VAC Volt (V) Phase : 1 PHASE Operating Temperature : 0 C to 40 C Celsius (oC) Power Rating : Rated Output Capacity: 1 KVA (1000 VA) Standard : Standard Physical & Package Dimensions (Product Spec) Features : Core Performance & Technology / DispSummary Feature HighlightsProtection & Reliability/ lay & Monitoring/ Efficiency & Eco Modes Conductor : AC Input (Mains): Copper conductor, 2.5 mm 4 mm Connects UPS to the mains safely Must be PVC or FRLS insulated AC Output (Load): Copper conductor, 2.5 mm Feeds devices like PCs, routers, or small servers Flexible and insulated Battery Connection (48 V DC External): Stranded copper conductor, 10 AWG 6 AWG Handles high DC current safely Short and direct for minimal voltage drop Earthing / Grounding: Copper conductor, minimum 2.5 mm Insulated for safety Connects UPS chassis to earth General Notes: Use flexible, stranded copper cables for battery and load connections Avoid aluminum; copper ensures lower resistance and better reliability Ensure conductors are rated for expected current and follow local electrical codes Cable Type : Here s a bulletpoint summary of recommended cable types for the Max Life 1 KVA Online UPS: AC Input (Mains Supply): Flexible copper cable, PVC or FRLS insulated Standard 230 V AC power cable (typically 1.5 m with plug) Connects UPS safely to the mains supply AC Output (to Devices): Flexible copper wire, PVC insulated Standard 230 V output cable / power lead Feeds connected devices like PCs, routers, and small servers Battery Connection (External / 48 V DC): Stranded highcurrent copper cable, flexible 10 AWG 6 AWG recommended for safe current handling PVC or rubber insulation suitable for DC battery voltage Keep cable short and direct to reduce voltage drop and heating Earthing / Grounding: Copper conductor, minimum 2.5 mm Insulated/shielded for safety Connects UPS chassis to earth for protection General Tips: Use stranded copper cables for battery connections for flexibility and reliability Avoid aluminum cables; copper is preferred for lower resistance Ensure all cables are rated for expected current and meet local electrical codes

MAX LIFE 5 KVA ONLINE UPS Price : 68403.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 year Color : black Usage : backup Material : steel Usage & Applications : power supply Product Type : online ups Size : Dimensions (L W H): ~465 mm 190 mm 318 mm (approx.) standard chassis size for the UPS Frequency (MHz) : 50hz Hertz (HZ) Rated Current : 5000 VA Volt (v) Weight : 12.1 Kilograms (kg) Display Type : LCD (Liquid Crystal Display) shows important UPS information such as: Load level Battery level Operating mode (AC/Battery/Bypass) Fault and warning indicators Configurable settings menu (charging, alarms, etc. Protection : Protection Features MAX LiFe 5 KVA Online UPS Overload Protection Automatically limits current if load exceeds rated capacity, preventing damage to UPS and connected devices. ShortCircuit Protection Detects and immediately disconnects the output in case of a shortcircuit to prevent damage or fire hazards. Overvoltage & Undervoltage Protection Protects connected equipment from voltage spikes or dips outside safe limits. Battery Overcharge / Deep Discharge Protection Prevents battery damage by controlling charge/discharge limits; prolongs battery life. Surge & Spike Protection Safeguards electronics from sudden transient voltage surges caused by lightning or mains fluctuations. Thermal / Over Temperature Protection Shuts down or throttles UPS operation if internal temperature exceeds safe limits. Reverse Polarity Protection Ensures the UPS or connected battery isn t damaged if battery is connected incorrectly. Automatic Bypass / Generator Compatible In case of internal fault, UPS automatically switches to bypass mode to continue supplying mains power. LED / LCD Fault Indication Alerts user about overload, battery fault, or other abnormal conditions for quick corrective action. Dimension (L*W*H) : (L W H): 53 cm 14.5 cm 22 cm Centimeter (cm) Frequency : 50 Hertz (HZ) Rated Voltage : 220 V AC Volt (V) Phase : single phase Operating Temperature : 0 40 C Celsius (oC) Standard : Safety Standards IEC/EN 62040 1: Safety requirements for UPS systems. IS/IEC 60950 1: Safety of information technology equipment. EMC / Electrical Compatibility IEC/EN 62040 2: Electromagnetic compatibility for UPS. Meets limits for conducted and radiated emissions. Performance / Quality IEC/EN 62040 3: Performance and test methods for UPS. ISO 9001 / ISO 14001 certified manufacturer (Microtek). Battery Standards Lead acid batteries conform to IS 15549 / IEC 60896 21/22. Lithium ion compatible batteries follow IEC 62133 safety requirements. Environmental Standards RoHS compliant: Restriction of hazardous substances. WEEE compliant: Waste Electrical and Electronic Equipment directive. Other Features Generator compatible (meets standards for stable operation with gensets). Designed for indoor use at 0 40 C and 0 95 % noncondensing humidity. Features : Core Performance & Output True Double Conversion Online Technology continuous power conversion with zero break transfer to battery. Pure Sine Wave Output clean output safe for all sensitive electronics. Unity Power Factor delivers maximum usable power to connected loads. Wide Input Voltage Range stable operation even with fluctuating mains. Battery & Charging Supports 48 V External Batteries (lead acid or lithium ion compatible). Configurable Charging Current via LCD set charger current to match battery capacity. Powerful 60 A AC Charger for faster recharge. Cold Start Functionality UPS can start directly from battery when mains is absent. Smart & Scalable Intelligent LCD Display shows load, battery level, operating mode (AC/Battery/Bypass), and fault alerts. Optional Parallel Operation (in some models) allows multiple UPS units for extra capacity or redundancy (up to 9 units). Protection & Compatibility Generator Compatible works smoothly with gensets. Overload and Short Circuit Protection protects both UPS and connected equipment. Advanced Battery Management (ABM) protects batteries, improves life & performance (especially for lithium ion). Efficiency & Design High Efficiency reduces energy losses and heat. Stable Output Waveform low harmonic distortion and clean power. Suitable for Critical Loads ideal for servers, networking gear, CCTV/DVR, home offices, and small business systems. Conductor : Conductor / Cable Guidelines AC Input Conductor (Mains Supply) Type: Multicore, flexible copper conductor (H05VVF / ISI 694:1986 standard in India) Core Count: 3core (Live, Neutral, Earth) Recommended Size: 4 mm 6 mm copper (depending on distance and load, rated for ~22 25 A) Insulation: PVC, rated for 300 500 V AC AC Output Conductor (Load Side) Type: Multistrand copper or armored cable for higher safety Core Count: Singlephase, usually 3core or individual cables per phase + neutral + earth Recommended Size: 2.5 mm 4 mm copper for typical office/server loads (~20 A) Termination: Properly crimped lugs or sockets Battery / DC Conductor (48 V Battery Bank) Type: Flexible, thick copper cable with low resistance Recommended Size: 25 35 mm (depending on battery Ah and distance) Insulation: Heatresistant PVC or XLPE Termination: Crimped lugs + proper torque; fuse or breaker close to battery for protection Earth / Ground Conductor Type: Solid or stranded copper wire Recommended Size: 4 mm copper Connection: UPS chassis to building earth/ground rod Cable Type : thick multi core power cable (typically 3 core: live, neutral, earth) / hard wired terminals

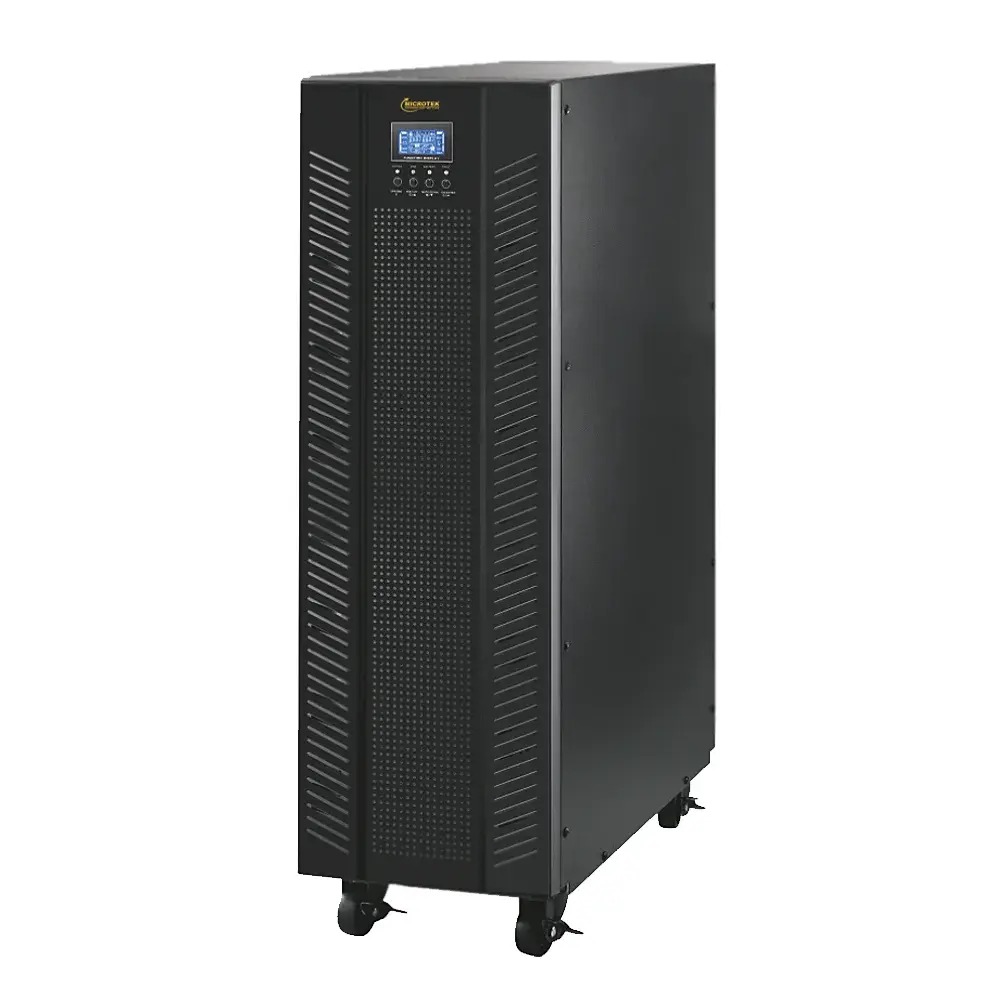

MICROTEK 120 KVA ONLINE UPS 3 PHASE IN 3 PHASE OUT without isolation transformer Price : 854377.82 INR/Unit Minimum Order Quantity : 1 Warranty : 1 year Color : BLACK Usage : BACKUP Material : steel Usage & Applications : power supply Product Type : ONLINE UPS Size : standard Frequency (MHz) : 50 Hz or 60 Hz Hertz (HZ) Rated Current : 167A (perphase) Microampere (A) Weight : 250 Kilograms (kg) Display Type : Digital Protection : Short Circuit Protection Dimension (L*W*H) : Length: ~60 cm Breadth: ~79 cm Height: ~160 cm Centimeter (cm) Frequency : 50 Hz or 60 Hz Hertz (HZ) Rated Voltage : 3 380 / 400 / 415 V AC Volt (V) Phase : 3PHASE IN 3 PHASE OUT Operating Temperature : 0 C to 40 C Celsius (oC) Power Rating : 120KVA Features : Input & Output Features

MICROTEK 20 KVA ONLINE UPS 3 PHASE IN 3 PHASE OUT without isolation transformer super max+30 KVA & 40 KVA HIGH FREQUENCY Price : 236342.0 INR/Unit Minimum Order Quantity : 1 Warranty : 1 YEAR Color : BLACK Usage : BACKUP Material : STEEL Usage & Applications : POWER SUPPLY Product Type : ONLINE UPS Size : STANDARD Frequency (MHz) : 50 Hz and 60 Hz Hertz (HZ) Rated Current : 20,000 W Watt (w) Weight : 67 Kilograms (kg) Display Type : displays voltage, frequency, load %, battery level etc. for easy monitoring Protection : Protection Features 1. Input Protection Overvoltage and undervoltage protection: UPS automatically bypasses or regulates if mains voltage goes beyond safe limits. Phase failure / Phase sequence protection: Ensures 3phase input is correct; prevents damage from reversed or missing phases. Input surge and spikes protection: Safeguards internal electronics from lightning surges or sudden voltage spikes. Dimension (L*W*H) : 25 cm 63 cm 75 cm Centimeter (cm) Frequency : 50 Hz and 60 Hz Hertz (HZ) Rated Voltage : 380 V 415 V AC Volt (V) Phase : 3 PHASE IN 3 PHASE OUT Operating Temperature : 0 C to 45 C Celsius (oC) Power Rating : Microtek Online UPS 20 kVA Super Max+ Series 3PH:3PH Standard : industrial 3 phase Microtek Super Max+ UPS (20 kVA / 30 kVA / 40 kVA), the standard voltage ratings
