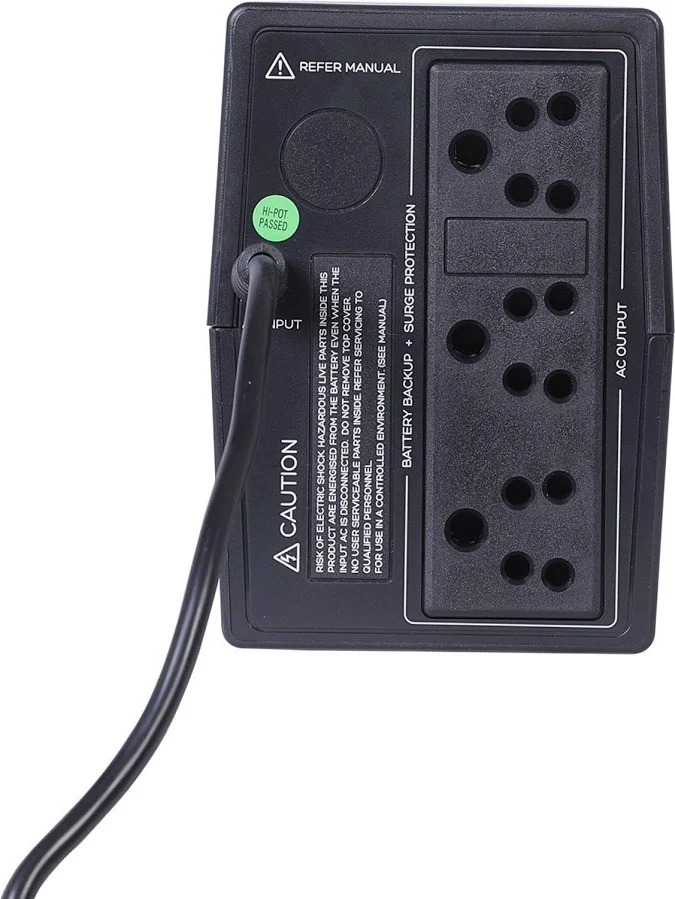

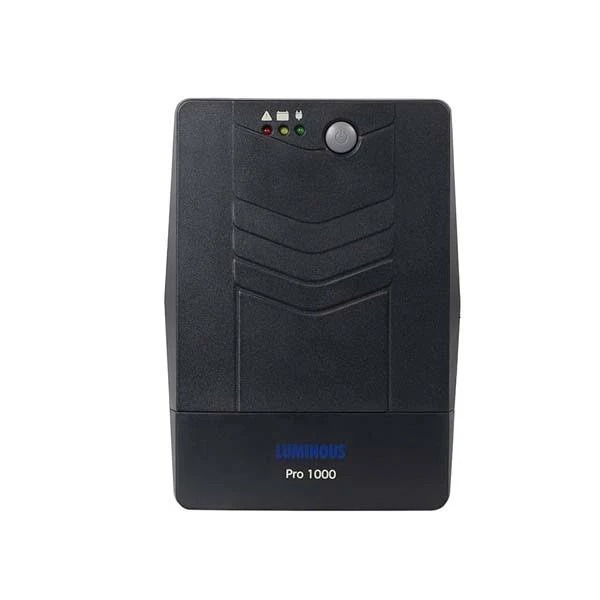

LUMINOUS (LB1000Pro)Line interactive UPS

UPS LEGEND 650VA Price : 1991.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Rated Voltage : 230V AC Volt (V) Warranty : 2 YEARS Product Type : UPS LEGEND 650VA Frequency (MHz) : 50 Hertz (HZ) Size : Typical Retail Box Size 30 cm 15 cm 15 cm Phase : Single PhasE Frequency : 50 Hertz (HZ) Material : durable fireretardant ABS plastic Dimension (L*W*H) : ~28.1 cm (L) 10 cm (W) 14.3 cm (H) Centimeter (cm) Rated Current : 2.8 A Ampere (amp) Cable Type : The UPS comes with a built in input power cable that ends in a standard Indian 3 pin plug (6 A) for mains connection. You plug this directly into your wall socket. Operating Temperature : 0 C to 40 C Celsius (oC) Usage & Applications : POWER SUPPLY Features : Automatic Voltage Regulation (Boost & Buck) Weight : 4.16 Kilograms (kg) Protection : Battery Discharge & Overcharge Protection Standard : Dimensions (L W H): ~28.1 10.0 14.3 cm (approx. footprint of the unit) Power Rating : 650 VA Usage : Desktop Computers & Monitors Display Type : Mains ON (LED) Battery Mode (LED) Fault / Low Battery (LED) Conductor : Material: Copper conductor (most small UPS units use copper for good conductivity and low resistance)

DESIREPRO+LINE INTERACTIVE UPS 2000VA Price : 9800.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Rated Voltage : 220 230 V AC Volt (V) Warranty : 2 YEARS Product Type : DESIREPRO+LINE INTERACTIVE UPS 2000VA Frequency (MHz) : 50 Hertz (HZ) Size : UPS Unit Dimensions Length (L): 395 mm Width (W): 145 mm Height (H): 220 mm Weight: ~14.25 kg Package / Box Dimensions Length (L): 395 mm Width (W): 145 mm Height (H): 220 mm Approx. Package Weight: ~15 kg (includes protective packing) Phase : 1 PHASE Frequency : 50 Hertz (HZ) Material : STEEL Dimension (L*W*H) : (L W H): 14.5 cm 39.5 cm 22 cm Centimeter (cm) Rated Current : 1200 W (Watts) Watt (w) Cable Type : UPS Cable Types 1. AC Input Cable The UPS has an India 3 pin 6 A mains input socket on the back. You connect it to a wall power socket using a standard 3 pin Indian mains power cord with an Indian Type D plug (6 A). 2. Output Power Sockets / Cables The UPS provides output through Indian standard output sockets (typically 6 A or 10 A rated). You plug your devices using their standard 3 pin Indian plug power cords into the UPS output. 3. Battery Connection Cables This model uses external batteries (not built in). You connect them with thick battery cables (24 V DC) between the UPS battery terminals and the external SMF/lead acid battery set. Battery cables are not a typical mains cable but heavy gauge DC wires with ring terminals (size based on battery Ah and distance). 4. Communication Cable (Optional) This UPS does not usually include a data/communication port or cable (like USB or RS 232) for PC monitoring that feature is common only in UPS models with smart communication. There s no manufacturer documentation showing such connectors on this line interactive model. Operating Temperature : 0 40 C Celsius (oC) Usage & Applications : POWER SUPPLY Features : Line Interactive Technology Provides stable power by regulating input voltage and switching to battery only when needed helps extend battery life and improves reliability. Weight : 14.25 kg Kilograms (kg) Protection : Protection Type Description / Function Overload Protection Prevents damage to UPS and connected devices if the load exceeds the rated capacity (2000 VA / 1200 W). UPS will sound an alarm and may shut down to protect itself. Short Circuit Protection Detects any short circuit in the connected load and immediately disconnects the output to avoid damage. Battery Overcharge Protection Prevents the connected battery from overcharging, extending battery life and preventing leakage or damage. Battery Deep Discharge Protection Automatically disconnects the battery when voltage drops below safe limits to prevent deep discharge, which can permanently damage the battery. Surge / Spike Protection Protects connected devices from voltage spikes and transient surges from the mains supply. Undervoltage / Overvoltage Protection Automatic Voltage Regulation (AVR) with Boost & Buck stabilizes low or high mains voltage without switching to battery unnecessarily. Fuse Protection Internal fuses provide additional safety against unexpected electrical faults. Alarm Indicators Audio/visual alarms notify the user of battery low, overload, fault, or mains failure conditions. Standard : Standard Features of DESIRE PRO+ 2000VA UPS Power Rating : 2000 VA (Volt Ampere) Usage : BACKUP Display Type : Shows UPS operating status using LED indicator lights on the front panel. Conductor : Purpose: Supplies AC mains power to the UPS

UPS LINE INTERATIVE LEGEND 1000 Price : 3983.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Rated Voltage : 140 V 300 V AC Volt (V) Warranty : 2 years Product Type : UPS LINE INTERATIVE LEGEND 1000 Frequency (MHz) : 50 Hertz (HZ) Size : Size & Weight: Roughly ~315 130 183 mm and ~8 9 kg Phase : 1 PHASE Frequency : 50 Hertz (HZ) Material : steel Dimension (L*W*H) : 315 130 183 mm Millimeter (mm) Rated Current : 2.6A Ampere (amp) Cable Type : Input cable: The UPS comes with a standard Indian 3pin mains power cable (with an Indian 3pin plug for wall socket) typically about 1.5 m long on units like this. Operating Temperature : 0 40 C Celsius (oC) Usage & Applications : power supply Features : Protection Features: AVR boost/buck for voltage stabilization, overload protection, auto restart when mains returns, cold start capability. Weight : 8.2 Kilograms (kg) Protection : Protection & Features Boost & Buck AVR: automatic voltage stabilisation without using battery. Overload, discharge & overcharge protection. Autorestart when AC power returns. Cold start support (can start from battery alone). OffMode Charging (charges battery even when UPS is off). Generator compatibility option. Standard : Type: LineInteractive UPS (AVR voltage regulation) Capacity: 1000 VA / 600 W Battery: 2 12 V 7 Ah sealed maintenancefree (SMF) leadacid batteries Input Voltage Range: 140 V 300 V AC Output Voltage: 230 V AC nominal Transfer Time: ~4 8 ms when switching to battery Output Waveform (Battery Mode): Modified sine wave Power Rating : 1000VA Usage : BACKUP Display Type : It doesn t have a digital display screen (no LCD or numeric screen). Instead, it uses a **basic LED status display on the front panel a set of LEDs that light up to show power mode and UPS status (like mains power, battery mode, or fault/overload)

BPE UPSX1102L4 LINE INTERACTIVE UPS Price : 17000.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Rated Voltage : 24V / 36V / 48V DC ( Volt (V) Warranty : 1 YEAR Product Type : BPE UPSX1102L4 LINE INTERACTIVE UPS Frequency (MHz) : 45 65 Hz (Auto Sensing) Hertz (HZ) Size : Overall Dimensions: 220 350 340 mm (W D H) Phase : 1 PHASE Frequency : 45 65 Hz (Auto Sensing) Hertz (HZ) Material : STEEL Dimension (L*W*H) : 220 350 340 mm Millimeter (mm) Rated Current : 8.7A Ampere (amp) Cable Type : 3 Core 2.5 sq.mm Operating Temperature : 0 C 50 C Celsius (oC) Usage & Applications : POWER SUPPLY Features : Feature Description Microcontroller Based PWM Technology Uses advanced PWM technology with MOSFET switching for efficient and stable UPS operation. Pure Sine Wave Output Provides clean and stable sinewave power suitable for sensitive electronic equipment. Wide Input AVR Range Builtin Automatic Voltage Regulation handles wide input voltage fluctuations without switching to battery frequently. Fast Transfer Time Transfer time of about 4 8 ms, ensuring uninterrupted power to connected devices. Overload & ShortCircuit Protection Protects the UPS and connected equipment from excessive load or electrical faults. Battery DeepDischarge Protection Prevents batteries from excessive discharge, extending battery life. High Battery Charging Capacity Supports up to 10 A charging for external batteries to allow longer backup time. Generator Compatibility Can operate with generator power sources without affecting performance. LCD / LED Status Display Provides visual indicators for AC mode, battery mode, overload, and fault conditions. Optional Communication Port RS232 / USB port for monitoring and automatic shutdown software. Cold Start Function Allows the UPS to start directly from battery when AC power is not available. Weight : 25 Kilograms (kg) Protection : Battery low, overload, short circuit, AC input high/low Standard : ISO 9001, ISO 14001, ISO 45001, BIS, RoHS Power Rating : 230 V AC Usage : BACKUP Display Type : LCD + LED indicators
