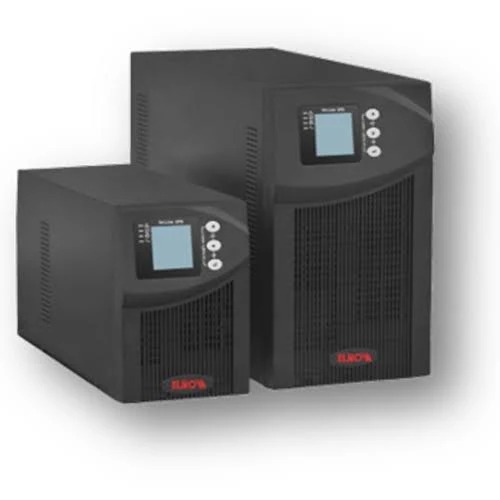

ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
24955.0 INR/Piece
Product Details:
- Product Type Online UPS
- Standard IS 9001:2015 Certified
- Rated Voltage 220/230V AC
- Frequency (MHz) 50 Hz
- Protection Overload, Short Circuit, Over Temperature, Input Over/Under Voltage
- Usage Industrial and Commercial Applications
- Size 2 KVA
- Click to View more
X
ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity
- 24955.0 INR/Piece
- 1 Piece
ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications
- 50 Hz
- Industrial and Commercial Applications
- Online UPS
- IS 9001:2015 Certified
- 2 KVA
- 390 x 192 x 380 mm
- ~15 kg
- Overload, Short Circuit, Over Temperature, Input Over/Under Voltage
- 220/230V AC
- Black
- 0.8
- ES2004L
- 90%
- Battery Low, Overload, Fault
- 0-95%, Non-condensing
- RS232/USB (Optional)
- 0 ms (Online)
- External Battery
- LCD Display
- Single Phase In - Single Phase Out (1:1)
- 110-300V AC
- Pure Sine Wave
- 0-40C
- 220V 1% AC
Product Description
ELNOVA ES2004L 2KVA 1:1 Phase Online UPS (External Battery) Description
The ELNOVA ES2004L 2KVA Online UPS is a high-performance double-conversion uninterruptible power supply designed to provide continuous, clean, and stable power to critical electrical equipment. It is a 1 phase input / 1 phase output (1:1) system and operates with an external battery bank, allowing flexible backup time based on battery capacity.
This UPS uses advanced DSP-controlled technology and delivers pure sine wave output, making it ideal for sensitive electronic loads such as servers, networking devices, CCTV systems, medical equipment, and office IT infrastructure.
ELNOVA ES2004L Specifications Table
| Specification | Details |
|---|---|
| Model | ES2004L |
| Capacity | 2 KVA / 1600 W |
| Phase | 1 Phase Input / 1 Phase Output (1:1) |
| Technology | True Online Double Conversion (DSP Controlled) |
| Output Waveform | Pure Sine Wave |
| Input Voltage Range | 120300 VAC (approx.) |
| Nominal Input Voltage | 220/230/240 VAC |
| Input Frequency | 4555 Hz (auto sensing 50/60 Hz) |
| Output Voltage | 220 VAC (selectable 208/220/230/240V) |
| Output Frequency | 50 Hz 0.05 Hz (synchronized) |
| Transfer Time | 0 ms (mains to battery) |
| Efficiency | Up to 94% |
| Power Factor | 0.8 standard (0.9 optional) |
| Battery Type | External SMF lead-acid batteries |
| Battery Configuration | Typically 68 12V batteries (depends on backup) |
| DC Bus Voltage | 96V DC (typical for 2KVA) |
| Charging Current | 5A10A (model dependent) |
| Recharge Time | 68 hours to 90% |
| Protection | Overload, short circuit, over/under voltage, over temperature |
| Communication | RS232 (USB/SNMP optional) |
| Display | LCD (voltage, load, battery, mode, fault status) |
| Operating Temp | 0C to 45C |
| Noise Level | Low audible noise |
| Cooling | Forced air cooling (fan) |
| Applications | Servers, CCTV, networking, offices, medical equipment |
WARRANTY :- 1YEAR
If you want, I can also make:
Battery wiring diagram (68 battery setup)
Backup time chart (1 hour / 2 hour / 4 hour setup)
Comparison with APC / Luminous 2KVA UPS
Price estimate in Delhi market
Pure Sine Wave Stability and Reliability
The ES2004L delivers a pure sine wave output, essential for powering sensitive and mission-critical equipment across industrial and commercial sectors. This ensures maximum device compatibility, minimal distortion, and dependable protection from electrical anomalies during both utility and backup operations.
Exceptional Power Protection Features
With comprehensive protection measures such as overload, short circuit, over temperature, and input voltage safeguards, the ES2004L provides robust defense against electrical risks. Its alarm system promptly notifies users of faults, battery status, or overloads, ensuring continuous uptime and peace of mind.
User-Friendly Interface and Connectivity
An intuitive LCD display provides real-time insights into operational status and system parameters. Optional RS232/USB communication ports allow easy system monitoring and integration, enhancing the management and control of your power backup infrastructure for optimal performance.
FAQ's of ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY:
Q: How does the ELNOVA ES2004L UPS provide uninterrupted power protection?
A: The ES2004L operates as a true online UPS, continuously supplying conditioned power from its inverter. Should input voltage deviate or power outage occur, seamless transfer with zero milliseconds ensures connected devices remain powered without interruption.Q: What kind of applications is the ES2004L UPS suitable for?
A: This model suits a broad range of settings, including industrial machinery, commercial IT infrastructure, and sensitive electronic systems that require stable, regulated power for optimal performance and protection against outages.Q: When should I consider using an external battery with the ES2004L UPS?
A: External batteries are recommended when extended backup time is required beyond the unit's standard runtime. They provide flexibility, allowing you to tailor the backup duration according to your operational needs or critical workload demands.Q: Where can I monitor the status of my ES2004L UPS?
A: You can check real-time system information and alerts using the integrated LCD display on the unit. Optional RS232 or USB interfaces allow remote monitoring from compatible management software or connected devices as well.Q: What benefits does the pure sine wave output provide for my equipment?
A: Pure sine wave output replicates utility power, ensuring that even the most sensitive or sophisticated devices receive clean and stable electricity. This minimizes risk of malfunctions, data loss, or hardware damage caused by inferior or erratic power.Q: How is the ES2004L protected from electrical and operational faults?
A: The UPS incorporates multiple protection features, including overload, short circuit, over temperature, and input over/undervoltage safeguards. Audible alarms for battery low, overload, and faults further ensure prompt attention to abnormal conditions.Tell us about your requirement
