BPE MFP1101L3 1KVA ONLINE UPS

15000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE MFP1101L3 1KVA ONLINE UPS
Power Rating 1 kVA
Standard CE, ISO quality systems, BIS & RoHS compliance (reported)
Frequency (MHz) 50/60 Hz Hertz (HZ)
Protection Over/under voltage, overload, short circuit, battery low, temp protection (standard safety)
Size Usually written as 144 400 215 mm (W D H).
Warranty 1 YEAR
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MFP1101L3 1KVA ONLINE UPS Price And Quantity

Price 15000.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE MFP1101L3 1KVA ONLINE UPS Product Specifications

Protection Over/under voltage, overload, short circuit, battery low, temp protection (standard safety)
Product Type BPE MFP1101L3 1KVA ONLINE UPS
Power Rating 1 kVA
Warranty 1 YEAR
Standard CE, ISO quality systems, BIS & RoHS compliance (reported)
Dimension (L*W*H) Spec Measurement Width ~ 144 mm (~14.4 cm) Depth ~ 400 mm (~40 cm) Height ~ 215 mm (~21.5 cm) Millimeter (mm)
Size Usually written as 144 400 215 mm (W D H).
Display Type LCD/LED voltage, frequency, load, battery status
Features Shows input & output voltages, frequency, battery status, load percent, and modes like Online, Battery, or Bypass for real time monitoring.
Cable Type This UPS typically uses a hard wired 3 wire connection (live, neutral, earth) rather than a simple plug in power cord i.e., the mains wires are connected directly to the UPS terminal block.
Frequency (MHz) 50/60 Hz Hertz (HZ)
Rated Voltage 220 V / 230 V / 240 V AC Volt (V)
Phase 1 PHASE
Frequency 50/60 Hz Hertz (HZ)
Usage & Applications POWER SUPPLY
Material STEEL
Rated Current 1 kVA ( 0.8 kW) Volt (v)

BPE MFP1101L3 1KVA ONLINE UPS Trade Information

Delivery Time 7 Days

Product Description

Product Description BPE MF1101L3 1kVA Online UPS

The BPE MF1101L3 is a true online doubleconversion UPS designed to provide uninterrupted, clean power to critical equipment such as PCs, servers, networking gear, medical devices, and other sensitive electronics. It constantly conditions incoming AC mains power and supplies a pure sine wave output even during grid failures ensuring zero transfer time when switching to battery backup.

BPEMF1101L31kVA Online UPS Specifications

Specification	Details
Model	MF1101L3 (1kVA / 0.8kW)
UPS Type	Online DoubleConversion (True Online)
Input Voltage	110300V AC (wide range, load dependent)
Input Frequency	50/60Hz 10% AutoSensing
Input Power Factor	0.99
Output Voltage	220/230/240V AC 1%
Output Frequency	50/60Hz Sync/Battery Mode 0.1Hz
Output Power Factor	0.8 (standard), 0.9 (optional)
Load Capacity	1kVA (0.8kW)
Efficiency	~94% (Dual Conversion), up to ~99% (ECO mode)
Output Waveform	Pure Sine Wave
Crest Factor	3:1
THD (Output)	1% (very low distortion)
Battery System	External battery bank (configurable)
Battery DC Voltage	Typically 36V or higher, depending on external batteries
Recharge Time	~48hrs to 90% capacity
Display/Interface	LCD/LED voltage, frequency, load, battery status
Communication Ports	RS232 (optional SNMP/USB)
Protection Modes	Overload, over/under voltage, short circuit, battery low, over temperature
Bypass	Internal Automatic/Manual Bypass available
Physical	Typical Tower form factor (may vary slightly by seller)
Application	PCs, servers, networking, sensitive electronics, medical equipment

Notes

True online UPS means zero transfer time during mains failure ideal for sensitive devices like computers and servers.
Backup time depends on the external battery bank size you connect (VAh rating). Typical runtime from small batteries is short (minutes), longer runtimes require bigger battery banks.
The unit includes standard safety protections and digital display for monitoring.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Price : 25000.0 INR/Unit Minimum Order Quantity : 1 Protection : Protection Features 3 kVA Online UPS Protection Type Description / Function Overload Protection Automatically limits or shuts down output if connected load exceeds rated capacity to prevent damage. Short Circuit Protection Detects short circuits in the output and disconnects the load immediately to prevent UPS or equipment damage. Battery Low / Over Discharge Protection Prevents deep discharge of the inbuilt battery, prolonging battery life and avoiding failures. Input Surge / Spike Protection Protects connected devices from voltage spikes or surges caused by lightning, switching, or grid fluctuations. Overvoltage / Undervoltage Protection (AVR) Automatic Voltage Regulation keeps output voltage within safe limits for sensitive electronics. Over Temperature Protection Monitors internal UPS temperature and shuts down or alerts in case of overheating. Reverse Polarity Protection Prevents damage in case battery terminals are connected incorrectly. Short Transfer Time / Zero Transfer Protection Ensures uninterrupted power supply during mains failure with zero milliseconds transfer to battery mode. EMI / RFI Filtering Protects against electromagnetic and radiofrequency interference affecting sensitive equipment. Usage : BACKUP Weight : 50 kg Kilograms (kg) Power Rating : 3 kVA (~2400 W) Product Type : BPE MS1103B6 3KVA ONLINE UPS INBUILT BATTERY Warranty : 1 YEAR Standard : IEC 620401 / IEC 620402 / IEC 620403 Color : BLACK Size : 360 mm 580 mm 280 mm (~14.2 22.8 11 ) Dimension (L*W*H) : Parameter Details (Approx.) Width (W) 360 mm (~14.2 in) Height (H) 580 mm (~22.8 in) Depth (D) 280 mm (~11 in) Weight 45 50 kg (includes inbuilt batteries) Millimeter (mm) Display Type : Advanced LCD showing voltages, battery, load, mode Rated Voltage : 220/230/240 V AC Volt (V) Frequency (MHz) : 50/60 Hz Hertz (HZ) Material : STEEL Usage & Applications : POWER SUPPLY Rated Current : 2400 W Watt (w) Frequency : 50/60 Hz Hertz (HZ) Phase : 1 PHAE Operating Temperature : 0 C ~45 C Celsius (oC) Cable Type : 3core, 4 mm to 6 mm copper wire (L, N, E) depending on distance and load; rated for 16 A or more. Features : Feature Description / Benefit True Online Double Conversion (VFI) Provides uninterrupted, clean AC power with zero transfer time during mains failure. Inbuilt VRLA/SMF Batteries Compact internal battery bank for plugandplay installation, eliminating the need for external batteries. Wide Input Voltage Range (100 300 V AC) Protects equipment against brownouts, voltage sags, and spikes without switching to battery unnecessarily. Pure Sine Wave Output Safe for sensitive electronics like PCs, servers, networking devices, medical equipment, and lab instruments. Advanced LCD/LED Display Realtime display of input/output voltage, load percentage, battery status, and operating mode. Automatic Voltage Regulation (AVR) Stabilizes output voltage, ensuring reliable operation of connected devices. High Efficiency (~94%) & ECO Mode Reduces energy consumption while maintaining reliable operation. Generator Compatible Can safely work with backup generators without damage to UPS or connected devices. Multiple Protections Overload, short circuit, battery low, overvoltage, undervoltage, surge, EMI/RFI filtering, and temperature monitoring. Compact Tower Design Suitable for office floors, server rooms, and homes without requiring separate battery racks. Zero Transfer Time Ensures uninterrupted operation for critical systems during power cuts. Long Battery Life Builtin batteries with proper charging and protection provide reliable backup and extended service life. Crest Factor 3:1 Can handle equipment with high inrush current (like servers, laser printers, networking gear). Easy Maintenance Frontaccess panel for monitoring, quick battery replacement, and servicing.

Send Inquiry

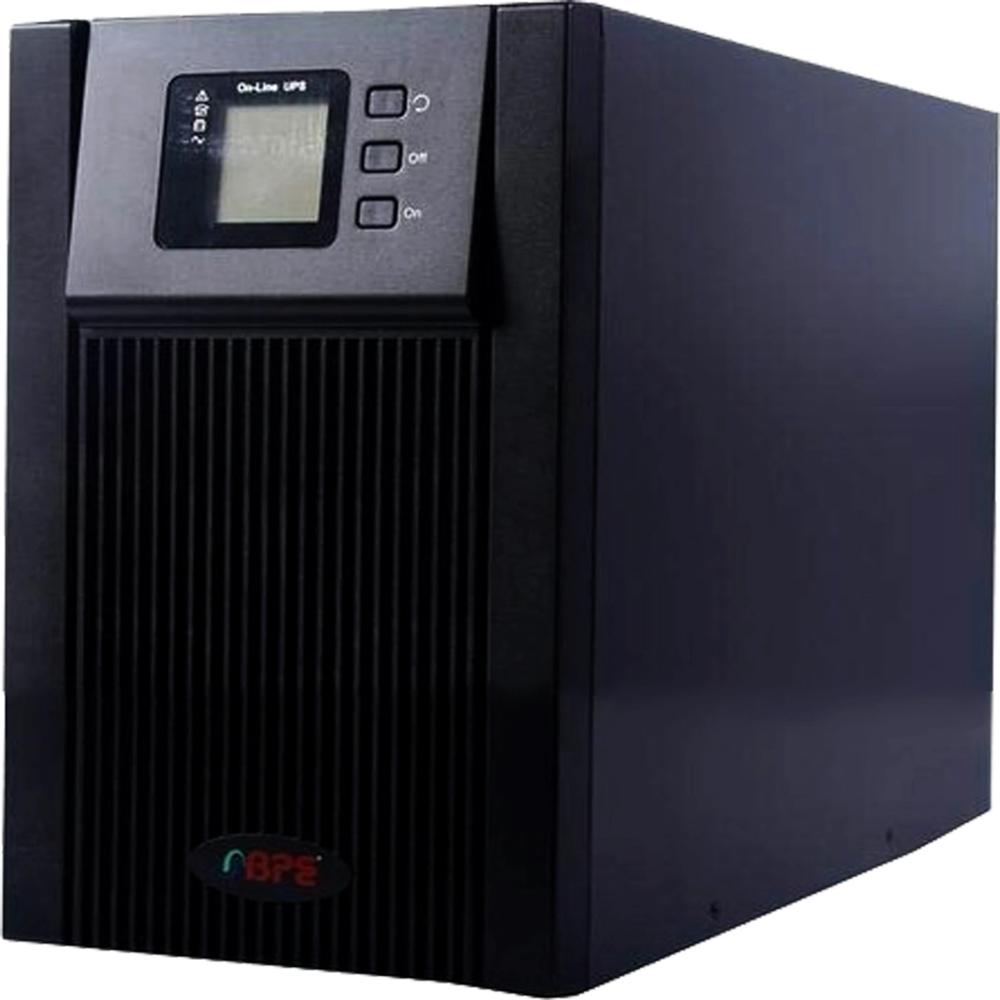

BPE MF1101B3 1KVA ONLINE UPS INBUILT BATTERY Price : 15000.0 INR/Unit Minimum Order Quantity : 1 Protection : Overload, short circuit, overtemperature, battery low Usage : BACKUP Weight : 10.6 Kilograms (kg) Power Rating : 1 kVA Product Type : BPE MF1101L3 1KVA ONLINE UPS EXTERNAL BATTERY Warranty : 1 YEAR Standard : Standards BPE MF1101L3 1kVA Online UPS Standard Description IEC 620401 Safety requirements for UPS systems IEC 620402 Electromagnetic compatibility (EMC) for UPS IEC 620403 UPS performance and test methods CE European Conformity certification for safety and health RoHS Restriction of Hazardous Substances compliance BIS / IS Compliance Indian safety and electrical equipment standards ISO 9001 Manufacturing Quality management system used by manufacturer Color : BLACK Size : Full Size (W D H): 144 400 215 mm Dimension (L*W*H) : Dimension (L W H): 40 14.4 21.5 cm Millimeter (mm) Display Type : LCD + LED indicators Rated Voltage : 220 / 230 / 240 V AC Volt (V) Frequency (MHz) : 50 Hertz (HZ) Material : STEEL Usage & Applications : POWER SUPPLY Rated Current : 4.3 A Volt (v) Frequency : 50 Hertz (HZ) Phase : 1 PHASE Operating Temperature : 0 C to 45 C Celsius (oC) Cable Type : RS 232 cable or SNMP network cable (Cat5e / Cat6) Features : Feature Description True Online Double Conversion Provides continuous clean power without switching delay. Pure Sine Wave Output Safe for sensitive devices like servers, computers, and medical equipment. DSP Digital Control Technology Improves system reliability and performance control. High Input Power Factor (>0.99) Reduces power loss and improves efficiency. Wide Input Voltage Range Operates from about 110 300 V AC, suitable for unstable power areas. ECO Mode Improves efficiency up to 99% to reduce energy consumption. LCD Display Shows input voltage, output voltage, battery level, load %, temperature, and status. LED Status Indicators Displays modes such as normal operation, bypass, battery mode, and fault. Advanced Battery Management (ABM) Protects battery life and optimizes charging. Cold Start Function UPS can start directly from battery without mains power. Automatic & Manual Bypass Allows power to bypass UPS during overload or maintenance. Communication Ports RS232 / SNMP support for monitoring and remote management. Generator Compatible Works with generators and solar systems. Configurable Output Settings Output voltage, frequency conversion, ECO mode configurable through LCD. External Battery Support Uses 3 12V batteries (36V system) for extended backup time.

Send Inquiry

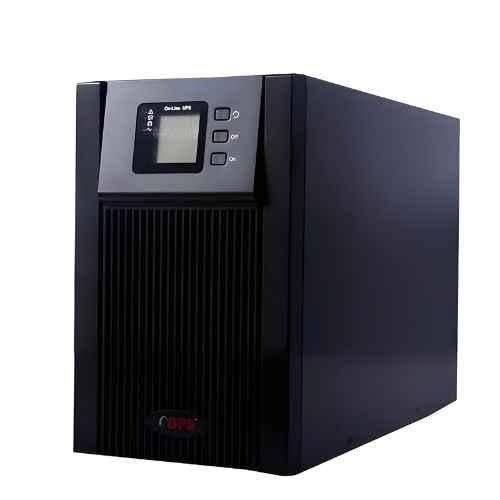

BPE MFX1102L6 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price : 26923.0 INR/Unit Minimum Order Quantity : 1 Protection : Overload, Short Circuit, Battery Deep Discharge, Surge Protection Usage : BACKUP Weight : 26.7 Kilograms (kg) Power Rating : 1.6 kW (1600 watts). Product Type : BPE MFX1102L6 2KVA ONLINE BPE BPE MFX1102L6 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Warranty : 1 YEAR Standard : Standard Description IEC 620401 General and safety requirements for UPS systems IEC 620402 Electromagnetic Compatibility (EMC) requirements IEC 620403 Method of specifying performance and test requirements IS 16242 (Part 1) Indian standard equivalent for UPS safety CE Certification Conformity with European safety, health, and environmental protection standards RoHS Compliance Restriction of hazardous substances in electrical equipment ISO 9001 Quality management system for manufacturing Color : BLACK Size : Parameter Size Height 399 mm Width 192 mm Depth 469 mm Dimension (L*W*H) : Parameter Dimension Height 399 mm Width 192 mm Depth 469 mm Weight ~26 27 kg (without batteries) Millimeter (mm) Display Type : LCD Display Rated Voltage : 220 / 230 / 240 V AC Volt (V) Frequency (MHz) : 50 / 60 Hz Hertz (HZ) Material : STEEL Usage & Applications : POWER SUPPLY Rated Current : 2000VA Volt (v) Frequency : 50 / 60 Hz Hertz (HZ) Phase : 1 PHASE Operating Temperature : 0 C to 40 C Celsius (oC) Cable Type : Type: Copper PVC insulated multicore cable Features : Feature Description True Online Double Conversion Technology Provides continuous clean power with 0 ms transfer time during power failure Pure Sine Wave Output Ensures safe operation for sensitive equipment Inbuilt Isolation Transformer Provides electrical isolation, reduces noise, and improves safety Wide Input Voltage Range Operates within 110 300 V AC without switching to battery High Input Power Factor >0.99 reduces input current and improves efficiency LCD Display Panel Displays input/output voltage, load level, battery status, and fault alarms Static & Manual Bypass Ensures power supply to load during UPS maintenance or fault Advanced Battery Management Automatic charging and protection against deep discharge Generator Compatible Works smoothly with generator power Communication Interface RS232 / SNMP for remote monitoring Protection Features Overload, short circuit, surge, and battery protection High Efficiency Up to 94% efficiency in online mode EMI / RFI Noise Filter Protects connected equipment from electrical interference Suitable For: Servers, networking equipment, medical devices, laboratory equipment, and industrial control systems. If you want, I can also prepare a complete technical datasheet format (Description + Specs + Size + Standards + Features) ready for tender documents.
