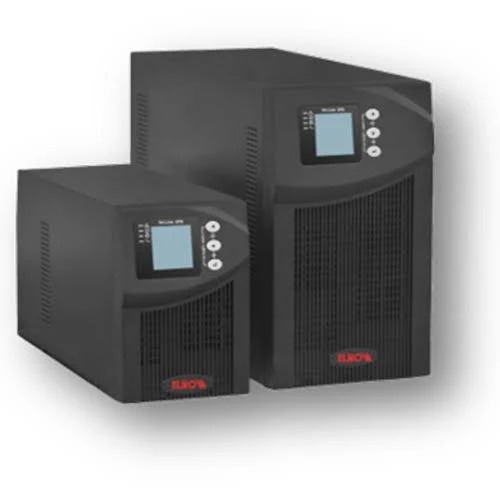

ELNOVA (ES3004B8) 3KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY
37720.0 INR/Unit
Product Details:
- Power Rating 3KVA
- Product Type ELNOVA (ES3004B8) 3KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY
- Standard IEC/EN62040, CE, BIS
- Frequency (MHz) 55 65 Hz Hertz (HZ)
- Protection Overload, Short Circuit, Battery Deep Discharge, Surge Protection
- Usage BACKUP
- Size DIMENSION
- Click to View more
X
ELNOVA (ES3004B8) 3KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY Price And Quantity
- 37720.0 INR/Unit
- 1 Unit
ELNOVA (ES3004B8) 3KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY Product Specifications
- ~15 16 Amps Ampere (amp)
- 3KVA
- 29 Kilograms (kg)
- BLACK
- 55 65 Hz Hertz (HZ)
- 1 YEAR
- DIMENSION
- IEC/EN62040, CE, BIS
- 220V / 230V AC Volt (V)
- 55 65 Hz Hertz (HZ)
- BACKUP
- ELNOVA (ES3004B8) 3KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY
- POWER SUPPLY
- Copper Flexible FRLS Cable
- 469 191 339 mm Millimeter (mm)
- Overload, Short Circuit, Battery Deep Discharge, Surge Protection
- DSP Control, Static Bypass, ECO Mode, Generator Compatible, Cold Start
- STEEL
- 1:1 PHASE
- 0 C to 45 C Celsius (oC)
- Input/Output Voltage, Frequency, Load %, Battery Status, Fault Codes
ELNOVA (ES3004B8) 3KVA 1:1 PHASE ONLINE UPS INBUILT BATTERY Trade Information
- 7 Days
Product Description
Product Description
- Model: ES3004B8
- Capacity: 3KVA / 2400W
- Input/Output: Single Phase In Single Phase Out (1:1 Phase)
- UPS Type: True Online Double Conversion
- Battery Type: Inbuilt Battery (commonly 8 7Ah configuration)
- Output Waveform: Pure Sine Wave
- Backup Time: Approx. 15 minutes (depending on connected load)
- Technology: DSP Digital Control with PWM Technology
- Efficiency: Up to 94%
- Input Voltage Range: Wide operating range up to 120V300V AC
- Communication Ports: RS232 standard, optional USB/SNMP support
- Cooling: Intelligent fan cooling with low audible noise
- LCD Display: Real-time status for voltage, battery, load, and operating mode
- Weight: Approx. 29 kg
- Dimensions: 469 191 339 mm
Main Features
- True online double-conversion protection
- Pure sine wave output for sensitive equipment
- Near unity input power factor (0.99)
- Generator compatible
- EMI/RFI noise filtering
- Static bypass and cold start function
- Auto restart after power recovery
- ECO mode for energy saving
- Advanced battery management system
- Compact tower design
Applications
Suitable for:
- Servers & IT infrastructure
- CCTV & security systems
- Networking equipment
- Small data centers
- Medical devices
- Office workstations
- Telecom & automation systems
Approximate Price
- Official listing price: around 37,720
- Market/reseller pricing: 25,00035,000 depending on battery and warranty package.
Official Product Links
Specification Table ELNOVA ES3004B8 (3KVA Online UPS)
Specification
Details
Model
ES3004B8
Brand
ELNOVA
UPS Type
Online Double Conversion UPS
Capacity
3KVA / 2400W
Phase
Single Phase In / Single Phase Out (1:1)
Input Voltage
120V 300V AC
Rated Output Voltage
220V / 230V / 240V AC (Selectable)
Output Waveform
Pure Sine Wave
Output Power Factor
0.8 (Standard), up to 0.9 (Optional)
Efficiency
Up to 94%
Frequency Range
50Hz / 60Hz Auto Sensing
Transfer Time
0 ms (Online Mode)
Battery Type
Inbuilt Sealed Lead Acid Batteries
Battery Bank
8 12V 7Ah (typical configuration)
Backup Time
1015 minutes (depends on load)
Recharge Time
68 hours to 90%
Display
LCD (Voltage, Load, Battery, Status, Fault)
Communication
RS232 (USB/SNMP optional)
Protection Features
Overload, short circuit, low battery, surge protection
Cooling
Intelligent fan cooling
Noise Level
Low audible noise
Operating Temperature
0C to 45C
Weight
29 kg (approx.)
Dimensions
469 191 339 mm
Bypass Mode
Automatic static bypass support
Generator Compatibility
Yes
Certifications
IEC/EN 62040, CE, BIS compliant
| Specification | Details |
|---|---|
| Model | ES3004B8 |
| Brand | ELNOVA |
| UPS Type | Online Double Conversion UPS |
| Capacity | 3KVA / 2400W |
| Phase | Single Phase In / Single Phase Out (1:1) |
| Input Voltage | 120V 300V AC |
| Rated Output Voltage | 220V / 230V / 240V AC (Selectable) |
| Output Waveform | Pure Sine Wave |
| Output Power Factor | 0.8 (Standard), up to 0.9 (Optional) |
| Efficiency | Up to 94% |
| Frequency Range | 50Hz / 60Hz Auto Sensing |
| Transfer Time | 0 ms (Online Mode) |
| Battery Type | Inbuilt Sealed Lead Acid Batteries |
| Battery Bank | 8 12V 7Ah (typical configuration) |
| Backup Time | 1015 minutes (depends on load) |
| Recharge Time | 68 hours to 90% |
| Display | LCD (Voltage, Load, Battery, Status, Fault) |
| Communication | RS232 (USB/SNMP optional) |
| Protection Features | Overload, short circuit, low battery, surge protection |
| Cooling | Intelligent fan cooling |
| Noise Level | Low audible noise |
| Operating Temperature | 0C to 45C |
| Weight | 29 kg (approx.) |
| Dimensions | 469 191 339 mm |
| Bypass Mode | Automatic static bypass support |
| Generator Compatibility | Yes |
| Certifications | IEC/EN 62040, CE, BIS compliant |
WARRANTY :1YEAR
