ELNOVA (ES3004L6) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY

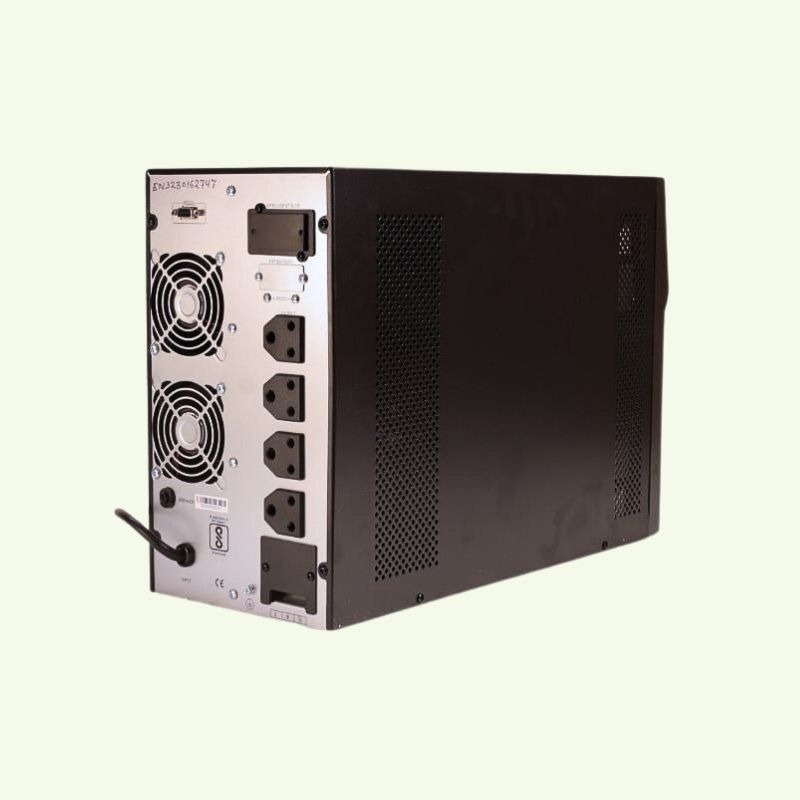

Name: ELNOVA (ES3004L6) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 27200.0 INR
Availability: InStock

27200.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type ELNOVA (ES3004L6) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 3KVA
Standard IEC/EN62040, CE, BIS
Frequency (MHz) 50Hz Hertz (HZ)
Protection Overload, Short Circuit, Battery Deep Discharge
Usage BACKUP
Size DIMENSION
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELNOVA (ES3004L6) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 27200.0 INR/Unit
Minimum Order Quantity 1 Unit

ELNOVA (ES3004L6) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Protection Overload, Short Circuit, Battery Deep Discharge
Product Type ELNOVA (ES3004L6) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 3KVA
Display Type LCD + LED Indicators
Standard IEC/EN62040, CE, BIS
Color BLACK
Size DIMENSION
Dimension (L*W*H) 469 191 339 mm Millimeter (mm)
Phase 1:1 PHASE
Rated Current 13 15 Amps Ampere (amp)
Operating Temperature 0 C to 45 C Celsius (oC)
Material STEEL
Usage BACKUP
Weight 11 Kilograms (kg)
Cable Type Copper FR/FRLS insulated power cable
Frequency (MHz) 50Hz Hertz (HZ)
Usage & Applications POWER SUPPLY
Rated Voltage 220V / 230V / 240V AC Volt (V)
Warranty 1 YEAR
Features Provides continuous clean and stable power supply
Frequency 50 Hertz (HZ)

ELNOVA (ES3004L6) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The Elnova Online Ups 3KVA ES3004 is a high-frequency true online UPS system designed to provide uninterrupted and clean power supply for sensitive electronic equipment. It uses double-conversion online technology, ensuring zero transfer time during power failures and complete isolation from voltage fluctuations, surges, spikes, and electrical noise.

This 3KVA single-phase UPS supports an external battery bank, making it suitable for applications requiring extended backup time. The system is built with advanced DSP digital control technology and an IGBT-based inverter, delivering stable pure sine wave output with high efficiency and reliability.

Specification	Details
Model	ES3004L6
UPS Type	True Online Double Conversion UPS
Capacity	3 KVA / 2400 Watts
Phase Configuration	1 Phase Input 1 Phase Output
Input Voltage Range	120V 300V AC
Input Frequency	4555 Hz / 5565 Hz Auto Sensing
Input Power Factor	0.99
Output Voltage	208V / 220V / 230V / 240V Selectable
Output Waveform	Pure Sine Wave
Output Frequency	50Hz 0.05Hz
Transfer Time	0 ms
Efficiency	Up to 94%
Output Power Factor	0.8 Standard / 0.9 Optional
Battery Type	External Battery Bank
Charging Current	6A / 12A
Recharge Time	68 Hours (90% Capacity)
Communication Ports	RS232 Standard, USB/SNMP Optional
Display	LCD + LED Indicators
Protection Features	Overload, Short Circuit, Battery Deep Discharge
Operating Temperature	0C to 45C
Humidity	095% RH Non-Condensing
Dimensions	469 191 339 mm
Weight	Approx. 11 kg
Noise Level	Low Audible Noise
Compatibility	Generator & Solar Compatible
Certifications	IEC/EN62040, CE, BIS
Applications	Servers, CCTV, Networking, Medical, Office Equipment

WARRANTY :- 1YEAR

Main Features

DSP digital control technology
IGBT-based inverter & rectifier
Static bypass & cold start
Auto restart function
EMI/RFI noise filter
ECO mode operation
Long backup support with external batteries

Common Battery Configuration

For long backup:

6 12V batteries (72V DC system)
Usually paired with:
- 26Ah
- 42Ah
- 65Ah
- 100Ah batteries depending on backup requirement

Estimated Backup Examples

Load	Battery Bank	Approx Backup
500W	6100Ah	78 Hours
1000W	6100Ah	3.54 Hours
2000W	6100Ah	1.52 Hours
