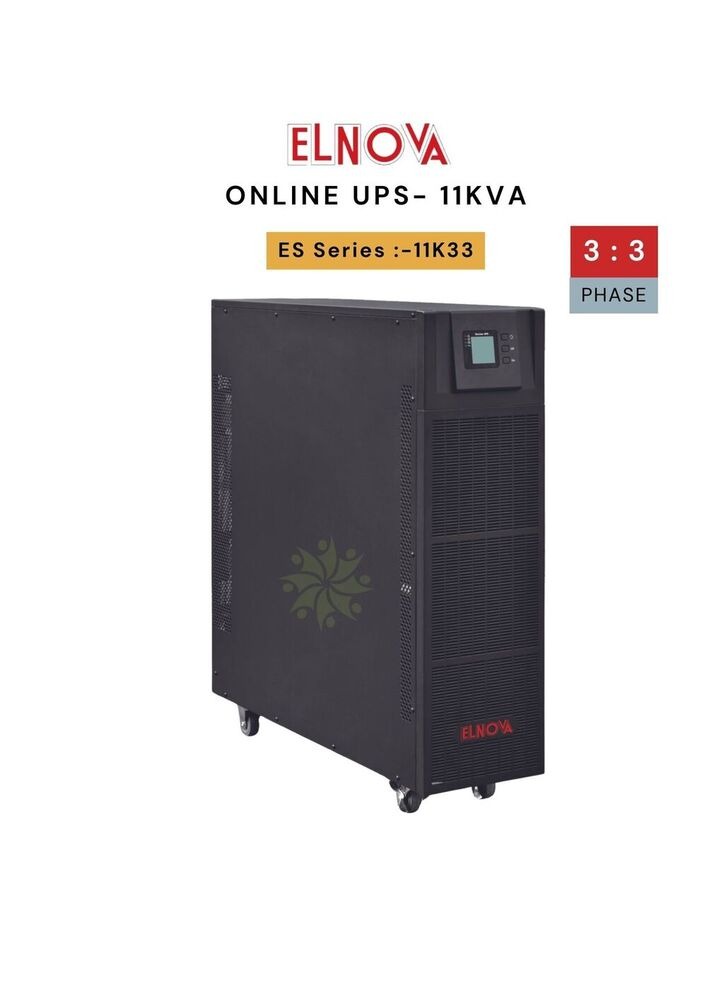

ELNOVA (11k33) 11KVA 3:3 PHASE ONLINE UPS

170199.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type ELNOVA (11k33) 11KVA 3:3 PHASE ONLINE UPS
Power Rating 11 KVA
Standard IEC/EN 62040-1 (UPS Safety Requirements)
Frequency (MHz) 45 55 Hz (50 Hz system) Hertz (HZ)
Protection IP20
Usage BACKUP
Size 828 250 868 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELNOVA (11k33) 11KVA 3:3 PHASE ONLINE UPS Price And Quantity

Price 170199.0 INR/Piece
Minimum Order Quantity 1 Unit

ELNOVA (11k33) 11KVA 3:3 PHASE ONLINE UPS Product Specifications

Cable Type Copper, XLPE/PVC Insulated, Armoured or Unarmoured
Features True Online Double Conversion Technology
Frequency (MHz) 45 55 Hz (50 Hz system) Hertz (HZ)
Phase 3:3
Usage & Applications power supply
Color BLACK
Size 828 250 868 mm
Protection IP20
Product Type ELNOVA (11k33) 11KVA 3:3 PHASE ONLINE UPS
Frequency 45 55 Hz (50 Hz system) Hertz (HZ)
Usage BACKUP
Display Type LCD + LED
Rated Current 15.9 A Ampere (amp)
Warranty 1 year
Power Rating 11 KVA
Material steel
Weight 57 Kilograms (kg)
Standard IEC/EN 62040-1 (UPS Safety Requirements)
Dimension (L*W*H) 828 250 868 mm Millimeter (mm)
Operating Temperature 0 C to 40 C Celsius (oC)
Rated Voltage 380/400/415 VAC Volt (V)

ELNOVA (11k33) 11KVA 3:3 PHASE ONLINE UPS Trade Information

Delivery Time 7 Days

Product Description

The ELNOVA 11K33 is a high-performance 3-phase input / 3-phase output online UPS designed to provide uninterrupted and clean power for mission-critical applications. It uses true online double-conversion technology, which continuously converts incoming AC power to DC and back to AC, ensuring complete protection against voltage fluctuations, surges, spikes, harmonics, and power outages.

ELNOVA (11K33) 11 kVA 3:3 Phase Online UPS Specifications

Specification	Details
Model	ELNOVA ES11K33 / KL11K33
UPS Type	True Online Double Conversion UPS
Capacity	11 kVA / 9.9 kW
Input Phase	3 Phase + Neutral + Earth
Output Phase	3 Phase + Neutral + Earth
Rated Input Voltage	380V / 400V / 415V AC
Input Voltage Range	208478 VAC (load dependent)
Input Frequency Range	4070 Hz
Input Power Factor	0.99
Input THDi	< 3%
Output Voltage	380V / 400V / 415V AC (selectable)
Output Power Factor	0.9
Voltage Regulation	1%
Output Frequency	50/60 Hz
Output Waveform	Pure Sine Wave
Output THD	2% (Linear Load)
Crest Factor	3:1
Efficiency	> 93% at Full Load
Battery Bus Voltage	384 VDC
Battery Type	SMF / VRLA Compatible
Battery Capacity Range	17200 Ah
Maximum Charger Current	20 A
Parallel Operation	Up to 4 Units
Communication Ports	RS-232, USB, Optional SNMP
Display	LCD + LED Display
Isolation Transformer	Optional (ES Series) / Inbuilt (KL Series)
Generator Compatibility	Supported
Cold Start	Available
Static Bypass	Available
Operating Temperature	0C to 40C
Relative Humidity	095% (Non-Condensing)
Protection Class	IP20
Dimensions (W D H)	250 868 828 mm
Net Weight	Approx. 57 kg
Compliance	BIS Certified

The UPS provides protection against power failures, voltage fluctuations, surges, harmonics, and frequency disturbances, making it suitable for servers, data centers, telecom equipment, industrial automation, and
