ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY

Name: ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 16699.0 INR
Availability: InStock

16699.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 1KVA
Standard True Online Double Conversion UPS Technology
Frequency (MHz) 50/60 Hz Hertz (HZ)
Protection Industrial-grade electronic protection system
Usage backup
Size 415 145 220 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 16699.0 INR/Unit
Minimum Order Quantity 1 Unit

ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Standard True Online Double Conversion UPS Technology
Power Rating 1KVA
Usage backup
Frequency 50/60 Hz Hertz (HZ)
Warranty 1 YEAR
Operating Temperature 0 C 45 C Celsius (oC)
Usage & Applications POWER SUPPLY
Material STEEL
Display Type LED / LCD status indicators
Protection Industrial-grade electronic protection system
Cable Type Type: 3-core PVC insulated copper cable
Size 415 145 220 mm
Weight 5.8 Kilograms (kg)
Phase 1:1 phase
Rated Voltage 220 / 230 / 240 V AC Volt (V)
Product Type ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Rated Current 4.5 5.5 A Ampere (amp)
Frequency (MHz) 50/60 Hz Hertz (HZ)
Color black
Features https://chatgpt.com/#:~:text=%E2%9A%A1%20True%20Online%20Double%20Conversion%20Technology%20for%20continuous%20power%20protection
Dimension (L*W*H) 415 145 220 mm Millimeter (mm)

ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

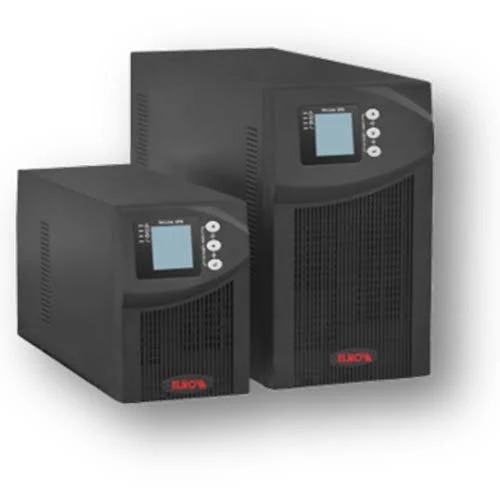

The Elnova ES1004L 1KVA Online UPS is a single-phase (1:1) double-conversion online UPS designed to provide continuous, clean, and stable power backup for sensitive electronic equipment.

It works with an external battery bank, meaning backup time can be customized based on battery capacity.

Specification Table

Specification	Details
Model	Elnova ES1004L
Capacity	1 KVA / 800 W
UPS Type	Online Double Conversion
Phase Configuration	Single Phase Input / Single Phase Output (1:1)
Input Voltage Range	120 300 V AC
Input Frequency	45 55 Hz (Auto sensing 50/60 Hz)
Output Voltage	208 / 220 / 230 / 240 V AC (Selectable)
Output Waveform	Pure Sine Wave
Transfer Time	0 ms (No interruption)
Efficiency	Up to 94%
Power Factor	0.99 (input)
Battery Type	External Battery (not included)
Battery System	36V DC (typically 3 12V batteries)
Battery Compatibility	7Ah 100Ah SMF / Tubular
Charging System	Intelligent battery management
Protection	Overload, short circuit, low battery, overcharge
Display	LED / LCD status indicators
Communication Port	RS232 (optional SNMP support)
Operating Temperature	0C 45C
Cooling	Intelligent fan cooling
Application	Server, CCTV, router, PC, medical & office use

WARRANTY :- 1YEAR
