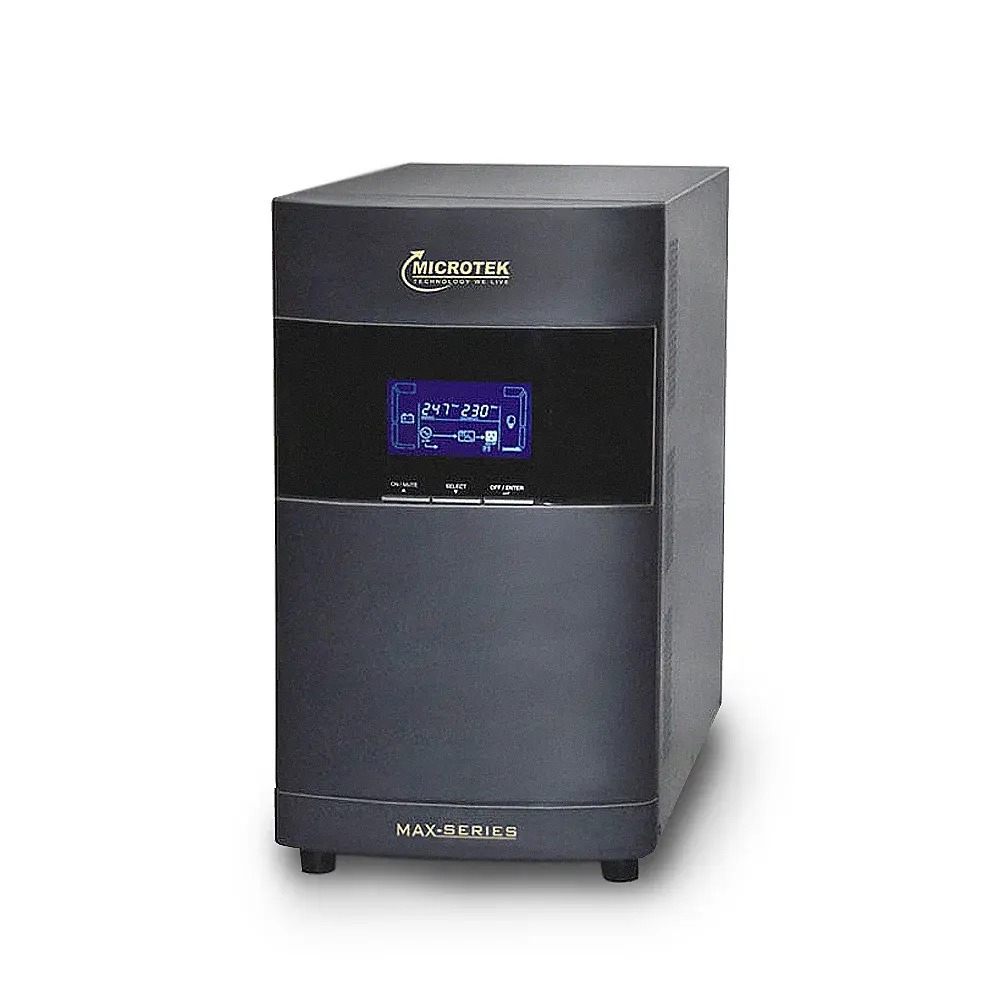

MICROTEK MAX+ 2 KVA ONLINE UPS 1:1 WITH ISOLATION TRANSFORMER

Product Description

Description

The Microtek Online UPS 2KVA 72V Max+ is a true doubleconversion online UPS designed to provide uninterrupted pure sine wave power for critical loads such as computers, servers, networks, labs, pointofsale systems, and other sensitive electronics. The online topology ensures theres no transfer time during power cuts the inverter supplies power continuously from either mains or battery, offering consistent and stable output even with severe voltage fluctuations, brownouts, or surges.

This UPS supports a 72V external battery bank (typically using six 12V SMF/VRLA batteries), so you add the battery capacity you need based on your desired backup time ideal if you want flexibility in runtime. It features highfrequency, IGBTbased double conversion technology with advanced microcontroller and power factor correction (PFC) for efficiency and stable output.

Key Features

• True Online DoubleConversion Technology: Continuous pure sine wave output ensures clean power to sensitive equipment without switchover interruptions.

• External Battery Support (72V): Works with an external battery bank (typically 612V batteries) so you can scale backup time independently.

• Wide Input Voltage Range: Handles voltage fluctuations from 118V up to 295V, keeping output stable.

• Advanced Battery Management: Intelligent charging and maintenance algorithms help preserve battery life.

• Protection & Reliability: Includes overload protection, shortcircuit protection, overtemperature safeguards, and optional SNMP monitoring.

• Generator Compatible: Works smoothly with generator input if mains power is unavailable.

• LCD/LED Display: Shows realtime status of UPS operation and battery conditions (varies by configuration).

Typical UseCases

This UPS is suitable for:

• Offices and small businesses needing reliable power for PCs, servers, networking gear, and POS terminals.

• Home labs or critical setups where power cuts or voltage fluctuations are common.

• Situations where longer backup times are needed because you can configure the external battery capacity to match your requirements.


  Specification	Details

  Model / Series

  2 KVA 1:1 Phase 72V Max+ Online UPS with Isolation Transformer

  Rated Capacity

  2 KVA / 1.8 kW

  UPS Technology

  Double-conversion Online (True Online)

  Input Phase

  Single-phase in

  Input Voltage

  240 V AC nominal

  Input Voltage Range

  160 285 V (derated)

  Input Frequency

  50/60 Hz 3 Hz

  Output Phase

  Single-phase out

  Output Voltage

  208 / 220 V AC

  Output Power Factor

  0.9

  Output Waveform

  Pure Sine Wave

  Output Frequency

  50/60 Hz 3 Hz

  Efficiency (Full Load)

  > 90 %

  Output Voltage Distortion

  < 2 %

  Load Crest Factor

  3:1

  Isolation Transformer

  Built-in / Included

  Battery DC Bus Voltage

  72 V DC

  Battery Type

  External SMF / VRLA batteries

  Approved Battery Capacity

  7100 Ah per string (612 V)

  Battery Charger Capacity

  8 A max

  Communication / Display

  LCD / LED indicators; RS232 / monitoring optional

  Protections

  Overload, short circuit, over-temperature, EMI/RFI noise filter

  Operating Temperature

  0 40 C

  Dimensions (LWH)

  421 190 336 mm

  Weight

  12.1 kg

  Warranty

  2 Years
