Luminous

LUMINOUS (LD1000IN)1KVA ONLINE UPS INBUILT BATTERY

Name: LUMINOUS (LD1000IN)1KVA ONLINE UPS INBUILT BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 16571.0 INR
Availability: InStock

16571.0 INR/Piece

Get a Price/Quote

Product Details:

Power Rating 1KVA
Product Type LUMINOUS (LD1000IN)1KVA ONLINE UPS INBUILT BATTERY
Standard 395 145 220 mm
Frequency (MHz) 40 70 Hz Hertz (HZ)
Protection Overload, Short Circuit, Battery Deep Discharge, Overcharge, Over Temperature
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

LUMINOUS (LD1000IN)1KVA ONLINE UPS INBUILT BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 16571.0 INR/Piece

LUMINOUS (LD1000IN)1KVA ONLINE UPS INBUILT BATTERY Product Specifications

Dimension (L*W*H) 395 145 220 mm Millimeter (mm)
Cable Type Heavy-duty PVC insulated copper power cable
Material STEEL
Standard 395 145 220 mm
Usage BACKUP
Rated Current 3.48 A Ampere (amp)
Color BLACK
Warranty 1 YEAR
Features True Online Double Conversion Technology for continuous, clean, and regulated power.
Size STANDARD
Frequency (MHz) 40 70 Hz Hertz (HZ)
Product Type LUMINOUS (LD1000IN)1KVA ONLINE UPS INBUILT BATTERY
Display Type LCD Display
Frequency 40 70 Hz Hertz (HZ)
Phase 1:1 PHASE
Weight 14 16 kg Kilograms (kg)
Power Rating 1KVA
Rated Voltage 220/230/240 VAC Volt (V)
Operating Temperature 0 C to 40 C Celsius (oC)
Usage & Applications POWER SUPLY
Protection Overload, Short Circuit, Battery Deep Discharge, Overcharge, Over Temperature

LUMINOUS (LD1000IN)1KVA ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 7 Days

Product Description

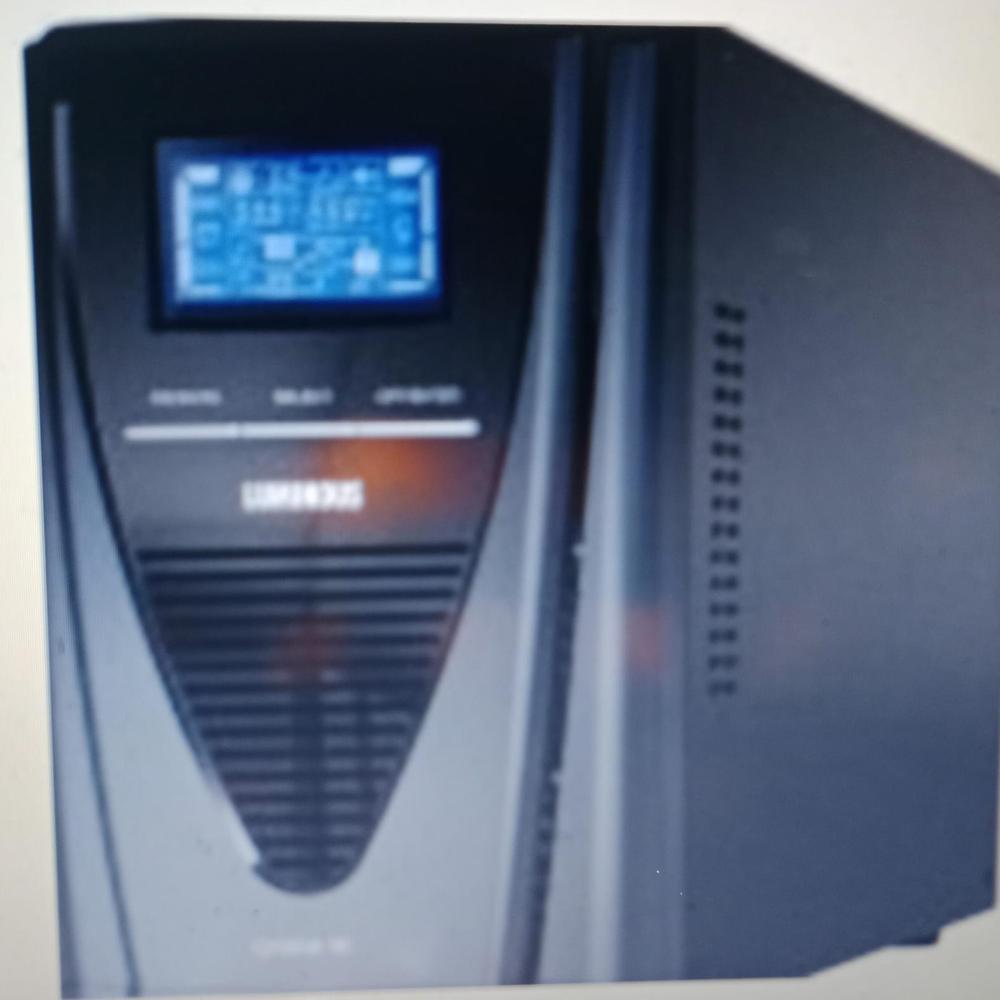

Product Description Luminous LD1000IN 1KVA Online UPS with Inbuilt Battery

The Luminous LD1000IN is a 1 kVA (800 W) true online double-conversion UPS designed to provide uninterrupted, clean, and stable power for critical electronic equipment. Equipped with three inbuilt 12 V, 7 Ah sealed maintenance-free (SMF VRLA) batteries, it ensures continuous power during outages while protecting connected devices from voltage fluctuations, surges, spikes, and electrical noise.

Its true online (double-conversion) technology delivers zero transfer time, making it suitable for sensitive applications such as desktop computers, servers, networking equipment, CCTV systems, medical devices, workstations, and professional AV equipment. The UPS features input power factor correction, a wide input voltage range (110300 V), ECO mode for improved energy efficiency, automatic bypass, and generator compatibility to ensure reliable operation in varied power conditions.

With a compact tower design, microprocessor-based control, and comprehensive protection against overload, short circuit, overcharge, deep battery discharge, and overheating, the Luminous LD1000IN offers dependable backup power and enhanced equipment protection for both home and small business

Luminous LD1000IN 1 kVA Online UPS (Inbuilt Battery) Specifications

Parameter	Specification
Model	LD1000IN
UPS Type	Online (True Double Conversion)
Capacity	1000 VA / 800 W
Output Power Factor	0.8
Input Phase	Single Phase
Output Phase	Single Phase
Input Voltage Range	110300 VAC
Nominal Input Voltage	230 VAC
Input Frequency	4070 Hz
Output Voltage	200/208/220/230/240 VAC (Selectable)
Output Voltage Regulation	1% (Battery Mode)
Output Waveform	Pure Sine Wave
Transfer Time	Zero (Online UPS)
Battery Type	Sealed Maintenance-Free (SMF) VRLA
Battery Configuration	3 12 V, 7 Ah (36 V DC)
Battery Charger	1 A
Battery Position	Internal
Backup Time	Approximately 1020 minutes (depending on load)
Recharge Time	Approximately 46 hours to 90%
Efficiency	Up to 90% (ECO Mode)
Input Power Factor	0.99
Communication Port	USB / RS-232
SNMP Support	Optional
Protection	Overload, Short Circuit, Battery Deep Discharge, Overcharge, Over Temperature
Cooling	Forced Air Cooling
Noise Level	< 50 dB at 1 meter
Dimensions (D W H)	395 145 220 mm
Weight	Approximately 1416 kg
Operating Temperature	0C to 40C
Humidity	2090% RH (Non-condensing)

True Online Double Conversion Technology

With double conversion technology, this UPS ensures continuous, high-quality power by converting incoming AC to DC and then back to AC. This removes voltage fluctuations and delivers stable and clean power to sensitive equipment, making it an ideal choice for mission-critical applications requiring reliability.

Comprehensive Protection Features

The LUMINOUS LD1000IN UPS is designed with multiple layers of protection, including safeguards against overload, short circuit, battery deep discharge, overcharge, and over temperature. These features not only enhance the longevity of your equipment but also provide peace of mind during power disturbances.

User-Friendly LCD Display

Monitor your system's performance with ease using the integrated LCD display. It provides real-time updates about input and output voltage, battery status, load level, and fault indicators, enabling you to ensure optimal operation and timely maintenance.

FAQ's of LUMINOUS (LD1000IN)1KVA ONLINE UPS INBUILT BATTERY:

Q: How does the LUMINOUS LD1000IN UPS ensure continuous power supply?

A: The UPS utilizes true online double conversion technology, which continuously converts incoming AC power to DC and back to AC, providing a seamless and uninterrupted power output for connected devices, even during voltage fluctuations.

Q: What devices can I safely connect to the 1KVA Online UPS?

A: This UPS is ideal for computers, servers, networking equipment, and other sensitive electronics requiring stable power, typically with a total load not exceeding 1KVA (1000 VA).

Q: When should I perform maintenance on the UPS system?

A: Regularly check the LCD display for status updates or fault indications. Routine maintenance, such as ensuring proper ventilation and checking battery health, is recommended every 3-6 months. Refer to the user manual for specific guidelines.

Q: Where can the LUMINOUS LD1000IN UPS be installed?

A: The UPS should be placed in a cool, dry indoor environment, with ambient temperatures between 0C and 40C. Ensure that there is sufficient space (dimensions: 395 x 145 x 220 mm) for airflow and easy access for monitoring and maintenance.

Q: What is the process for switching to battery backup during a power outage?

A: The UPS automatically switches to battery operation within milliseconds during a power failure, ensuring uninterrupted power supply to connected devices without manual intervention.

Q: How does the integrated protection benefit my equipment?

A: The multi-layered protection system helps prevent damage to both the UPS and connected equipment from overloads, short circuits, deep battery discharge, overcharging, and excessive temperatures, ensuring long-term reliability.

Q: What is included in the warranty for the LUMINOUS LD1000IN UPS?

A: The product comes with a 1-year warranty covering manufacturing defects. For extended support, you can contact the distributor, manufacturer, or service provider.
