MAX LIFE 3 KVA ONLINE UPS

Name: MAX LIFE 3 KVA ONLINE UPS
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 47884.0 INR
Availability: InStock

47884.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type ONLINE UPS
Power Rating Rated Power Capacity: 3 kVA (kilovolt ampere)
Standard Standard packaging includes protective padding around the UPS, so overall shipping box may be ~5 7 cm larger in each dimension and a few kg heavier. Typical total package weight 17 18 kg.
Frequency (MHz) 50 HZ Hertz (HZ)
Protection Overload Protection / Short CircuiGenerator Compatibility/ t ProOver Voltage & Under Voltage Protection/ Wide Input Voltage Range
Usage BACKUP
Size Physical Size / Dimensions: Length: ~46.5 cm Width: ~19 cm Height: ~31.8 cm (L W H)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

MAX LIFE 3 KVA ONLINE UPS Price And Quantity

Price 47884.0 INR/Unit
Minimum Order Quantity 1 Unit

MAX LIFE 3 KVA ONLINE UPS Product Specifications

Material steel / metal sheet body with powder coated finish
Product Type ONLINE UPS
Standard Standard packaging includes protective padding around the UPS, so overall shipping box may be ~5 7 cm larger in each dimension and a few kg heavier. Typical total package weight 17 18 kg.
Operating Temperature 0 C 50 C Celsius (oC)
Usage BACKUP
Rated Current 3 kVA ~2700 W Watt (w)
Display Type load level, battery level, AC mode or battery mode, bypass mode, and fault indicators.
Usage & Applications POWER SUPPLY
Protection Overload Protection / Short CircuiGenerator Compatibility/ t ProOver Voltage & Under Voltage Protection/ Wide Input Voltage Range
Color BLACK
Frequency 50 HZ Hertz (HZ)
Size Physical Size / Dimensions: Length: ~46.5 cm Width: ~19 cm Height: ~31.8 cm (L W H)
Rated Voltage 220 V / 230 V / 240 VAC Volt (V)
Phase SINGLE
Features True online double conversion with pure sine wave output Adjustable charging current via LCD panel Cold start from battery High current charger (60 A) Generator compatible and wide input range Overload and short circuit protection Advanced battery support with parallel scaling option
Power Rating Rated Power Capacity: 3 kVA (kilovolt ampere)
Cable Type Recommended Cable Types Input AC Cable (Mains to UPS) Type: 3-core flexible copper cable (Live, Neutral, Earth) Specification: 4 mm copper, heat resistant PVC or FRLS (Fire Retardant Low Smoke) insulation Voltage Rating: 300 V AC Notes: Properly fused; follow local electrical codes. Output AC Cable (UPS to Equipment / Load) Type: Flexible copper wire or standard IEC extension cabling Specification: 4 mm copper for full load (~2700 W / 12 A at 230 V) Voltage Rating: 300 450 V AC, depending on insulation standard DC Battery Cable (UPS to Battery Bank) Type: Flexible, stranded copper cable Specification: 10 16 mm (depending on battery AH and distance) Voltage Rating: 60 V DC Insulation: Heat resistant, battery-grade PVC or XLPE Notes: Keep cable runs short and use properly rated terminals to handle up to 60 A charging current. Material Conductor: High-conductivity copper (preferred over aluminum for low resistance and heat) Insulation: Fire-resistant, heat-resistant, and flexible for safe routing
Dimension (L*W*H) 46.5 19 31.8 cm (L W H) Centimeter (cm)
Conductor Recommended Cable Types Input AC Cable (Mains to UPS) Type: 3-core flexible copper cable (Live, Neutral, Earth) Specification: 4 mm copper, heat resistant PVC or FRLS (Fire Retardant Low Smoke) insulation Voltage Rating: 300 V AC Notes: Properly fused; follow local electrical codes. Output AC Cable (UPS to Equipment / Load) Type: Flexible copper wire or standard IEC extension cabling Specification: 4 mm copper for full load (~2700 W / 12 A at 230 V) Voltage Rating: 300 450 V AC, depending on insulation standard DC Battery Cable (UPS to Battery Bank) Type: Flexible, stranded copper cable Specification: 10 16 mm (depending on battery AH and distance) Voltage Rating: 60 V DC Insulation: Heat resistant, battery-grade PVC or XLPE Notes: Keep cable runs short and use properly rated terminals to handle up to 60 A charging current. Material Conductor: High-conductivity copper (preferred over aluminum for low resistance and heat) Insulation: Fire-resistant, heat-resistant, and flexible for safe routing
Weight 15.5 Kilograms (kg)
Warranty 1 YEAR
Frequency (MHz) 50 HZ Hertz (HZ)

MAX LIFE 3 KVA ONLINE UPS Trade Information

Delivery Time 7 Days

Product Description

Heres a clear description and key features of the ONLINE UPS MAX LiFe 3KVA 1PH:1PH 48V / similar Microtek MAXLife 3kVA online UPS you asked about ideal for computers, servers, routers, CCTV, and other critical equipment where clean, uninterrupted power matters

Key Highlights

True Online DoubleConversion UPS Provides continuous pure sine-wave AC output.
3kVA / 2700W Capacity Suitable for PCs, servers, networking, CCTV, and other sensitive electronics.
48V DC External Battery Support Flexible for different backup durations.
Pure Sine-Wave Output Safe for sensitive devices; avoids heating, noise, or damage.
High Charger Current (60A) Fast battery recharge.
Cold Start Capability Can start UPS on battery without mains power.
Wide Input Voltage Range Works reliably even with unstable mains.
Unity Power Factor Output Maximum usable power delivered to connected loads.
Generator Compatible Can safely operate with generator input.
LCD Display Shows load, battery status, mode, and fault warnings.

Protection Features Overload, short-circuit, and fault protection for both UPS and connected devices.

Specification	Details
Rated Capacity	3kVA / 2700W output
Output Waveform	Pure Sine Wave
Output Voltage	208V / 220V / 230V / 240V AC
Output Power Factor	0.99 / Unity
Output Frequency (Sync)	50/60Hz 3Hz
Output Frequency (Battery)	0.1% for 50/60Hz
Output THD	<2% (linear load)
Load Crest Factor	3:1
Input Voltage Range	119295V AC (wide range)
Input Phase	Single Phase
Input Frequency	50/60Hz 3Hz
Input Power Factor	>0.99
Battery DC Bus	48V DC (external batteries)
Max Charger Capacity	60A (configurable via LCD)
Cold Start	Supported (start UPS on battery)
Transfer Time	0ms (electronic online) / 4ms to bypass
Efficiency	Up to 90%+
Communication Interfaces	RS232, USB; SNMP/MODBUS optional
Operating Temp Range	0C 50C
Noise Level	<50dB (@ 1m)
Dimensions (LWH)	465190318mm
Weight	15.5kg
Display	LCD (load, battery, mode, fault)

warranty :- 1 year
Notes

This UPS uses true doubleconversion online topology the best for critical systems where power quality matters.
External batteries required backup time depends on battery AH you choose.
Configurable charging current and voltage lets you tailor performance to leadacid or Liion battery packs.

If youd like, I can also prepare a backup time estimate chart (minutes of backup vs battery AH) for this UPS. Just tell me the battery size (AH) youre planning to use!

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MICROTEK i MAXX SERIES 10.0 KVA ONLINE UPS 16/18 battery system with isolation transformer Price : 95829.0 INR/Unit Minimum Order Quantity : 1 Usage : BACKUP Rated Voltage : 208V AC/ 220V AC / 230V AC Volt (V) Product Type : ONLINE UPS Phase : 1 PHASE Frequency (MHz) : 50 Hertz (HZ) Weight : 86 Kilograms (kg) Usage & Applications : power supply Color : BLACK Size : standard Warranty : 1 year Dimension (L*W*H) : 562 250 830 mm Millimeter (mm) Material : steel Power Rating : 10.0KVA/8.0KW Frequency : 50 Hertz (HZ) Rated Current : 8000 Watt (w) Display Type : Smart LCD Display (Liquid Crystal Display) Protection : UPS Protection Features Protection Type Description / Function Overload Protection Automatically bypasses or shuts down if connected load exceeds rated capacity (~110 125 % for a few minutes, >150 % instant). Prevents inverter damage. Short Circuit Protection Instant shutdown in case of short circuit in load or output cabling to prevent fire or internal damage. Over Voltage Protection Shuts down or bypasses UPS if input mains voltage exceeds safe limits, protecting the UPS and connected equipment. Under Voltage Protection UPS goes on battery or shuts down if mains voltage drops below Cable Type : Copper multistrand, PVC / XLPE insulated Standard : Microtek i MAXX 10 kVA Online UPS Standard Specs Parameter Specification Model / Series i MAXX Transformer Based Online UPS Rated Power 10 kVA / 8 kW Input Single phase, 208 230 VAC 15 % Input Frequency 40 55 Hz Output Single phase, 208 230 VAC 1 % Output Frequency 50 Hz 0.1 Hz (Battery mode) Waveform Pure sine wave DC Voltage 192 VDC (16 18 12 V batteries Operating Temperature : 0 C to 45 C Celsius (oC) Features : Microtek i MAXX 10 kVA Online UPS Features Feature Description / Benefit True Online Double Conversion (CVCF) Provides pure sine wave output, maintaining voltage and frequency regulation independent of mains fluctuations. Builtin Isolation Transformer Protects sensitive loads from electrical noise, voltage spikes, and ground loops; adds safety. Wide Input Voltage Range 165 285 VAC allows operation in unstable or lowvoltage conditions without switching to battery unnecessarily. Pure Sine Wave Output Ensures compatibility with servers, networking equipment, medical devices, and industrial electronics.

Send Inquiry

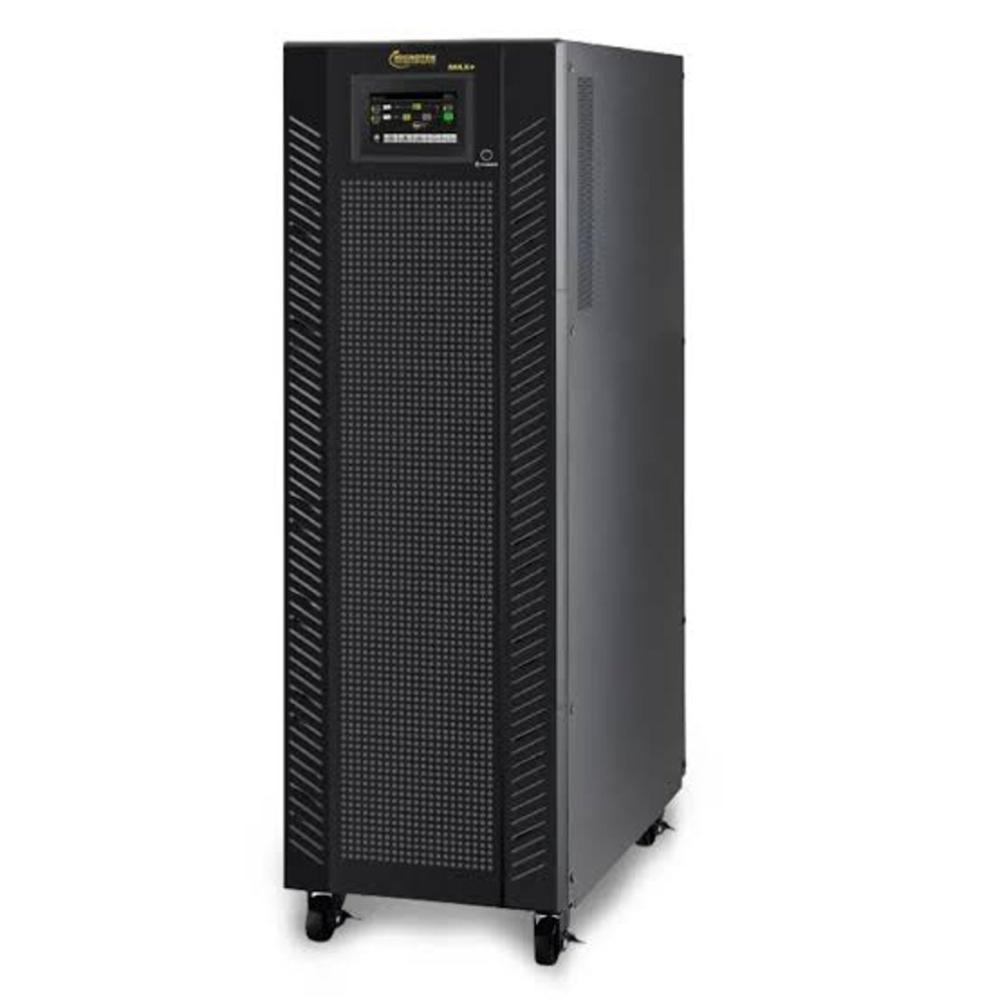

MICROTEK 80 KVA ONLINE UPS 3 PHASE IN 3 PHASE OUT without isolation transformer Price : 496041.0 INR/Unit Minimum Order Quantity : 1 Usage : backup Rated Voltage : 380/400/415 V AC Volt (V) Product Type : online ups Phase : 3Phase Input / 3Phase Frequency (MHz) : 50 Hz / 60 Hz Hertz (HZ) Weight : 113 Kilograms (kg) Usage & Applications : power supply Color : black Size : STANDARD Warranty : 1 year Dimension (L*W*H) : 79 cm (L) 36 cm (W) 101 cm (H) Centimeter (cm) Material : steel Power Rating : 80 kW/ Frequency : 50 Hz / 60 Hz Hertz (HZ) Rated Current : 80 kVA at ~400 V) Volt (v) Display Type : digital Protection : Shortterm overload capability up to 150 % of rated load without tripping Operating Temperature : 0 C to 40 C Celsius (oC)

Send Inquiry

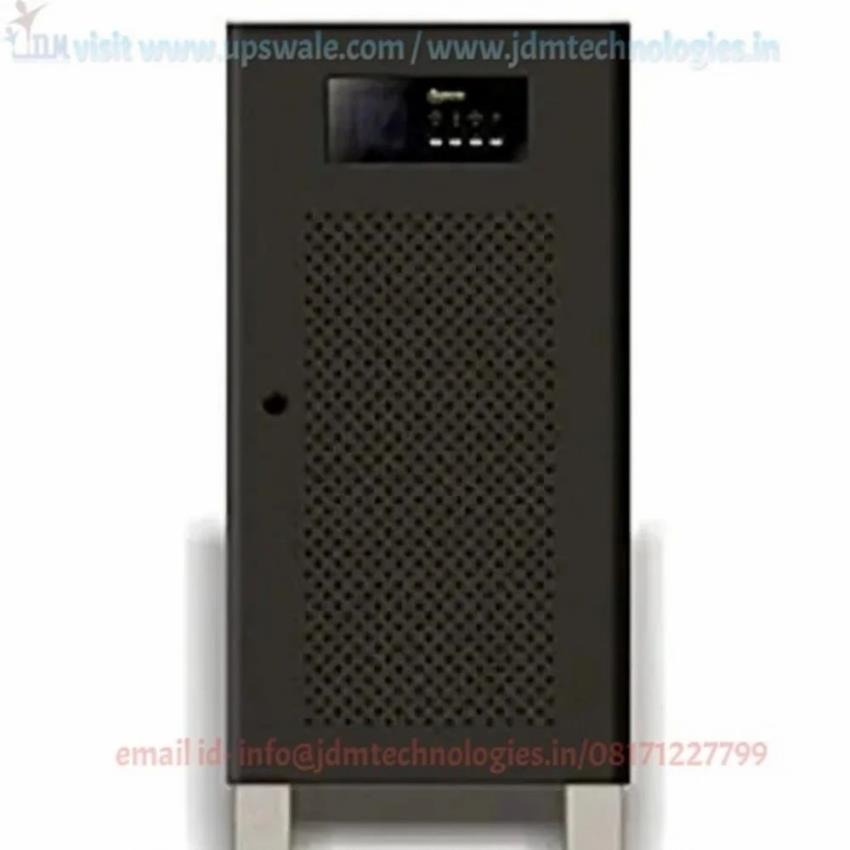

MICROTEK 20 KVA ONLINE UPS 3 PHASE IN -1 PHASE OUT with isolation transformer Price : 240935.0 INR/Unit Minimum Order Quantity : 1 Usage : backup Rated Voltage : 380 415 V AC Volt (V) Product Type : online ups Phase : 3 phase in 1 phase out Frequency (MHz) : 50 Hertz (HZ) Weight : 145 Kilograms (kg) Usage & Applications : power supply Color : black Size : standard Warranty : 1 year Dimension (L*W*H) : 656 405 941 mm Millimeter (mm) Material : steel Power Rating : 20 kVA/16kw Frequency : 50 Hertz (HZ) Rated Current : 16000w Watt (w) Display Type : Microtek Online UPS 20KVA i Max Series 3PH:1PH 360V Inbuilt LCD display Protection : UPS Protection Features Overload Protection Automatically trips or limits output if load exceeds rated capacity (~20 kVA). Prevents damage to UPS and connected equipment. ShortCircuit Protection Instant shutdown in case of short circuit on output. Prevents fire hazards and UPS damage. Overvoltage & Undervoltage Protection Protects connected equipment from spikes or drops in mains voltage. The UPS stabilizes output voltage at 230 V even if input fluctuates. Battery Protection Prevents deep discharge or overcharge of internal/external batteries. Extends battery life and prevents overheating. Isolation Transformer Protection Builtin isolation transformer provides galvanic isolation from mains. Protects equipment from surges, spikes, and commonmode noise. Surge & Spike Protection Absorbs sudden voltage surges from lightning or industrial equipment. Thermal Protection / Overtemperature Monitors internal UPS temperature; shuts down if overheating occurs. Bypass / Maintenance Mode Allows safe maintenance without interrupting power to critical loads. Short Circuit / Reverse Polarity Battery Protection Prevents damage if batteries are connected incorrectly.
