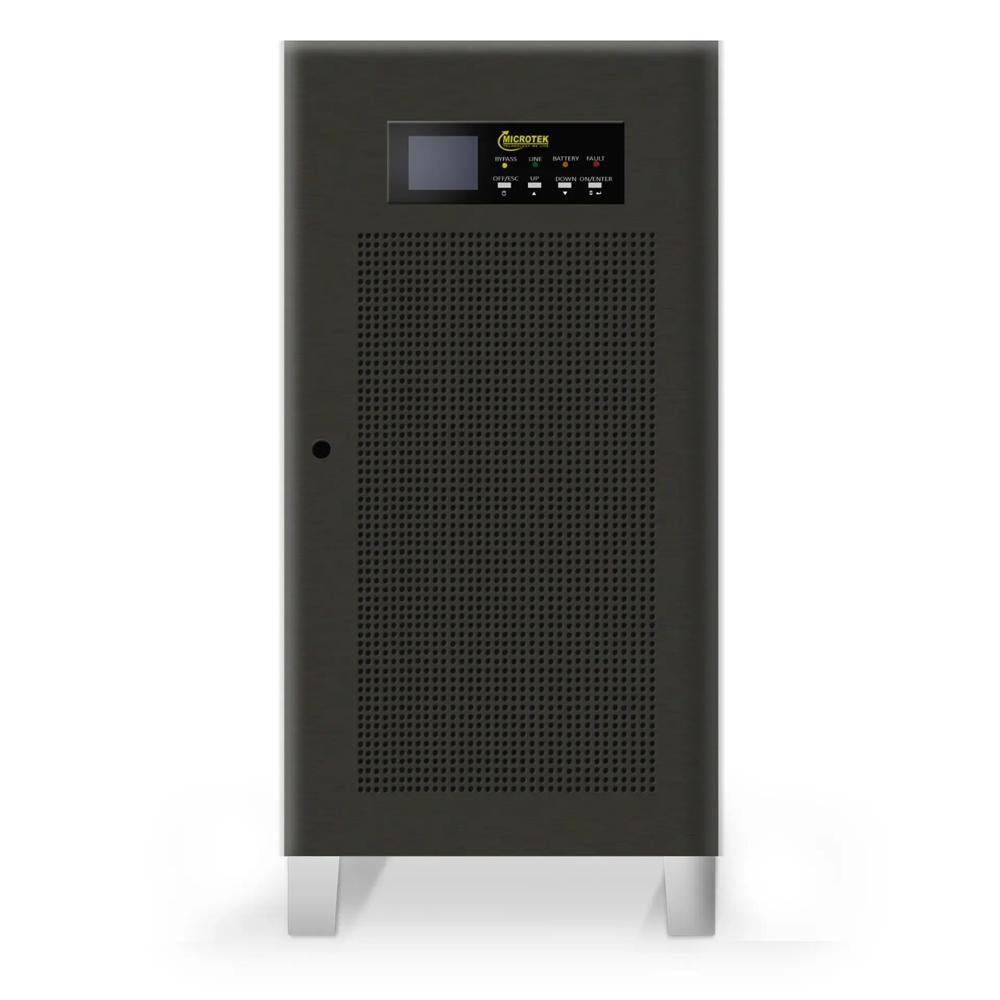

MICROTEK i MAX SERIES 10 KVA ONLINE UPS 3 PHASE IN -1 PHASE OUT with isolation transformer

Product Description

Product Description 10 kVA Microtek Online UPS (3PH 1PH with Isolation Transformer)

This type of UPS is a true online, double-conversion industrial UPS built for reliable power conditioning and continuous operation of sensitive equipment in commercial, industrial, or mission-critical environments.

Technical Specifications 10 kVA 31 Online UPS (Transformer-Based)

General

• Type: True Online Double-Conversion UPS with built-in isolation transformer (3 Phase in 1 Phase out)

• Capacity: 10 kVA / 8 kW (rated power)

• Topology: Online double conversion (always inverter-on, cleanest power)

• Output Waveform: Pure sine wave

• Transfer Time: < 0 ms seamless between mains and inverter/battery

• Weight: 6090 kg range (varies by model & configuration)

• Display: Smart LCD panel showing input, output, battery, load & alerts

Input (Mains)

• Input Phase: 3 Phase (R, Y, B + Neutral)

• Input Frequency: 50/60 Hz 3 Hz

• Voltage Range: Typical acceptable range (varies by product) often 185 V to 285 V (per phase) when derated output capability applies

• Neutral & Earth Supported: Yes (standard 3 + N + G connection)

• Generator Compatibility: Yes (most units can run from standby generators with proper sizing)

Output (Load)

• Output Phase: Single phase (230 V typical)

• Output Voltage: 230 VAC 1 % (regulated)

• Output Frequency: 50 Hz (synchronised to mains) or on battery 50 Hz 0.1 Hz

• Power Factor: 0.8

• Total Harmonic Distortion (THD): < 3 % (linear load), < 5 % (non-linear load)

• Load Crest Factor: 3:1 (good handling of short inrush loads)

Battery & DC

• DC Voltage / Battery Bus: 192 VDC (often using 16 12 V external batteries)

• External Battery Pack: Required (not built-in)

• Battery Charger Current: 8 A (typical; may vary by unit & option)

• Battery Configuration: SMF/VRLA or tubular recommended for runtimes you choose (AH decides backup time)

Protection & Features

• Overload Protection: Automatic trip/protection on excessive load

• Short Circuit Protection: Yes

• Over-temperature Protection: Yes

• Phase Sequence & Neutral Loss Immunity: Designed to handle phase reversal cases

• Static Bypass/Maintenance Bypass: Some models include these for easier service without shutdown

• Communication Ports: LCD + often RS232/USB; SNMP optional on some models

Environmental & Physical

• Operating Temp: 0 C to 40 C

• Relative Humidity: 595 % non-condensing

• Noise Level: Typically < 60 dBA @1 m (varies by model)

• Dimensions: Roughly 562 250 830 mm (varies)

What This Means

Youre looking at a true online UPS with isolation transformer, meaning it always supplies conditioned power through its inverter giving very stable 230 V single-phase output even with dirty or fluctuating 3-phase mains entering.

Backup time is not fixed it depends on the number and capacity (AH) of the external batteries you choose.

WARRANTY :- 1 YEAR
Notes:

• These models are transformer-based online UPS units that continuously convert incoming AC DC AC, giving instant, clean, pure sine power to critical loads.

• Backup runtimes depend on the battery bank you choose (AH rating number of batteries).

• Generator compatibility allows smoother transition with standby gensets if mains power fails.
