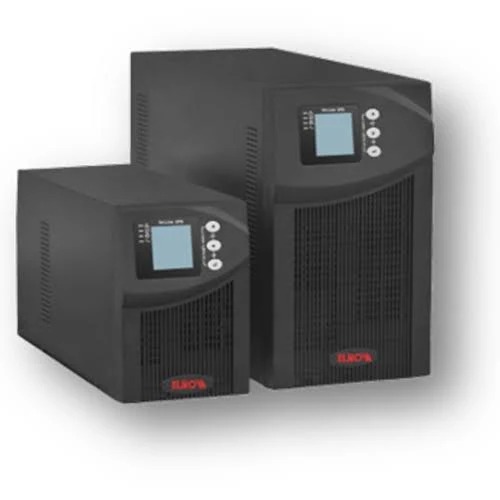

ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY

Name: ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 24955.0 INR
Availability: InStock

24955.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 2KVA
Product Type ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Standard IEC 62040-1
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, Short Circuit, Deep Discharge, Surge Protection
Usage BACKUP
Size DIMENSION
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 24955.0 INR/Unit
Minimum Order Quantity 1 Unit

ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Features Overload, Short Circuit, Deep Discharge, Surge Protection
Protection Overload, Short Circuit, Deep Discharge, Surge Protection
Color BLACK
Size DIMENSION
Weight 11.4 Kilograms (kg)
Usage BACKUP
Material STEEL
Standard IEC 62040-1
Frequency 50 Hertz (HZ)
Usage & Applications POWER SUPPLY
Frequency (MHz) 50 Hertz (HZ)
Display Type LCD Display
Cable Type Heavy Duty DC Copper Cable
Dimension (L*W*H) Dimension Parameter Size Height 339 mm Width 191 mm Depth 469 mm Net Weight Approx. 11 11.4 kg Form Factor Tower Type Millimeter (mm)
Rated Voltage 208V / 220V / 230V / 240V AC Volt (V)
Operating Temperature 0 C to 40 C Celsius (oC)
Product Type ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 2KVA
Rated Current 8.7 A Ampere (amp)
Warranty 1 YEAR
Phase 1:1 PHASE

ELNOVA (ES2004L) 2KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

The ES2004L uses advanced DSP digital control technology with IGBT-based inverter and rectifier architecture to provide stable pure sine wave output. It protects connected equipment from voltage fluctuations, spikes, surges, harmonics, and power interruptions.

This model requires an external battery bank, allowing users to configure backup time according to requirement. It supports long backup durations and is suitable for critical loads where uninterrupted power is essential.

Specification	Details

Model

ELNOVA ES2004L

UPS Type

Online Double Conversion UPS

Capacity

2 KVA / 1600 Watts

Phase Configuration

1 Phase Input 1 Phase Output

Input Voltage Range

120V 300V AC

Input Frequency

40Hz 70Hz

Output Voltage

208V / 220V / 230V / 240V AC

Output Waveform

Pure Sine Wave

Transfer Time

0 Milliseconds

Efficiency

Up to 94%

Battery Type

External Battery Bank

Battery Voltage

96V DC

Typical Battery Configuration

8 12V Batteries

Battery Charging

Intelligent Multi-stage Charging

Backup Time

Depends on Battery AH Rating

Display

LCD Display

Communication Ports

RS232 / USB / Optional SNMP

Protection Features

Overload, Short Circuit, Deep Discharge, Surge Protection

Cooling System

Forced Air Cooling

Noise Level

Low Noise Operation

Operating Temperature

0C to 40C

Relative Humidity

095% Non-condensing

Applications

Servers, CCTV, Networking, Telecom, Medical, Industrial

Mounting Type

Tower Model

Special Features

Cold Start, ECO Mode, Generator Compatible, Auto Restart

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

Microtek 3 KVA Online UPS with Internal batteries Price : 32294.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Protection : Power & Equipment Protection Features Size : Approximate Size & Weight (Online UPS 3 KVA with Internal Batteries Weight : 28.9 Kilograms (kg) Usage : BACKUP Standard : Doubleconversion online topology zero transfer time; best for sensitive electronics. Pure sine wave output ideal for computers, servers, networking gear. Wide input voltage tolerance good for areas with unstable mains. Internal SMF batteries (72 V) reduces need for external battery bank setup. Smart protection & monitoring status display and optional connectivity. Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 110 VAC300 VAC Volt (V) Product Type : Microtek Online UPS 3 KVA Dimension (L*W*H) : 42 19 32 Centimeter (cm) Features : Why These Features Matter Stable power: Double conversion and pure sine output protect sensitive electronics. Better battery health: Advanced charging and management reduce wear. Improved safety: Multiple protection layers prevent damage during surges, temperature rise, or overload. Easy monitoring: LCD and communication options keep you informed and connected. Material : STEEL Frequency : 50 Hertz (HZ) Display Type : LCDLED Combo Display Cable Type : Input Conductor (AC Mains) Singlephase AC input (230 V typical) Recommended wire size depends on load (rated current ~13 A at full load) Typical wire size: 2.5 mm copper conductor for short distances (<10 m), heavier if longer run. Must have earthing / grounding for safety. Output Conductor (UPS to Load) UPS outputs ~230 V AC, max rated current ~13 A Wire size: 2.5 mm copper is typically sufficient for most office/home equipment If supplying multiple highload devices, a 4 mm conductor may be considered to minimize voltage drop. Battery Conductors (Internal) Inside the UPS, VRLA/SMF batteries are connected via internal copper bus bars or flexible braided copper wires Designed to handle high DC currents safely (~12 15 A continuous for a 3 KVA system) Usage & Applications : POWER SUPPLY Operating Temperature : 0 C to 40 C Celsius (oC) Rated Current : 3 KVA (3000 VA) Volt (v) Power Rating : 3 KVA (3000 VA) Phase : SINGLE PHASE Warranty : 2 YEAR Conductor : Input Conductor (AC Mains) Singlephase AC input (230 V typical) Recommended wire size depends on load (rated current ~13 A at full load) Typical wire size: 2.5 mm copper conductor for short distances (<10 m), heavier if longer run. Must have earthing / grounding for safety. Output Conductor (UPS to Load) UPS outputs ~230 V AC, max rated current ~13 A Wire size: 2.5 mm copper is typically sufficient for most office/home equipment If supplying multiple highload devices, a 4 mm conductor may be considered to minimize voltage drop. Battery Conductors (Internal) Inside the UPS, VRLA/SMF batteries are connected via internal copper bus bars or flexible braided copper wires Designed to handle high DC currents safely (~12 15 A continuous for a 3 KVA system)

Send Inquiry

MAX LIFE 2 KVA ONLINE UPS Price : 31467.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Protection : Overload Protection/ ShortCircuit PrBattery Low / Deep Discharge ProtectionotOUnder Voltage Protection (UVP)/ ver Voltage Protection (OVP)/ ection / Size : (L W H): 53 cm 14.5 cm 22 cm (length width height) Weight : 8.6 Kilograms (kg) Usage : BACKUP Standard : Standard Features / Specifications Frequency (MHz) : 50 Hertz (HZ) Rated Voltage : 220 / 230 / 240 V AC Volt (V) Product Type : ONLINE UPS Dimension (L*W*H) : Length: 53 cm Width: 14.5 cm Height: 22 cm Weight: ~8.6 kg Centimeter (cm) Features : True Double Conversion Online TechMicroprocessor Controlnology/ Material : STEEL Frequency : 50 Hertz (HZ) Display Type : comprehensive LCD screen Cable Type : AC Input (Mains): Use 2.5 mm 4 mm copper wire for singlephase 230 V input. AC Output (Load): Use 2.5 mm copper wire, depending on connected devices. Battery Connection (48 V DC): Use 10 AWG 6 AWG copper wire for safe handling of high DC current. Earthing / Grounding: Minimum 2.5 mm copper wire; essential for safety and lightning protection. Wire Quality: Use flexible, highquality copper conductors rated for the expected current. Battery Wiring: Keep short and direct to reduce losses and heating. Usage & Applications : POWER SUPLY Operating Temperature : 0 C to 45 C Celsius (oC) Rated Current : 2 KVA ( 1600 W Ampere (amp) Power Rating : 2 KVA / 2000 VA Phase : SINGLE phase Warranty : 1 YEAR Conductor : AC Input (Mains): Use 2.5 mm 4 mm copper wire for singlephase 230 V input. AC Output (Load): Use 2.5 mm copper wire, depending on connected devices. Battery Connection (48 V DC): Use 10 AWG 6 AWG copper wire for safe handling of high DC current. Earthing / Grounding: Minimum 2.5 mm copper wire; essential for safety and lightning protection. Wire Quality: Use flexible, highquality copper conductors rated for the expected current. Battery Wiring: Keep short and direct to reduce losses and heating.

Send Inquiry

BPE MFP1102L8 2KVA ONLINE UPS Price : 23000.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Protection : Overload, shortcircuit, over/under voltage, surge, EMI/RFI filtering Size : Height: 399 mm Width: 469 mm Depth: 192 mm Net Weight: 26.7 kg Weight : 10 Kilograms (kg) Usage : BACKUP Standard : IEC 620401 / IS 13252 (Part 1) Frequency (MHz) : 50 Hz Hertz (HZ) Rated Voltage : 220 V / 230 V / 240 V AC Volt (V) Product Type : BPE MFP1102L8 2KVA ONLINE UPS Dimension (L*W*H) : Physical Dimensions Height: 399 mm Width: 469 mm Depth: 192 mm Net Weight: 26.7 kg Millimeter (mm) Features : True online double conversion topology for continuous clean power with zero transfer time. Material : STEEL Frequency : 50 Hertz (HZ) Display Type : LCD panel for input/output voltage, battery status, load %, UPS mode; RS232/optional SNMP Cable Type : External battery bank cables (from UPS to battery terminals) are thicker, typically multistrand copper battery cables, sized to match the battery bank current and length (e.g., 25 mm to 35 mm for external batteries on 96 V DC systems). This ensures minimal voltage drop and safe current flow. (General UPS battery practice) Usage & Applications : POWER SUPPLTY Operating Temperature : 0 C to 40 C Celsius (oC) Rated Current : 8.7 A Microampere (A) Power Rating : 2,000 VA (2 KVA) Phase : 1 PHASE Warranty : 1 YEAR Conductor : External battery bank cables (from UPS to battery terminals) are thicker, typically multistrand copper battery cables, sized to match the battery bank current and length (e.g., 25 mm to 35 mm for external batteries on 96 V DC systems). This ensures minimal voltage drop and safe current flow. (General UPS battery practice)

Send Inquiry

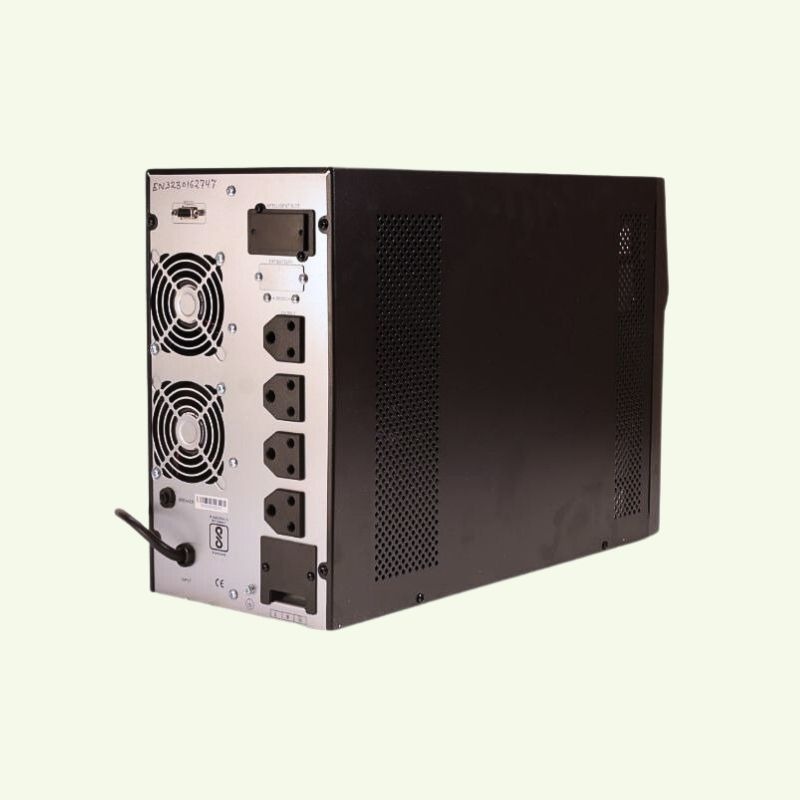

ELNOVA (ES3004L) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Price : 23000.0 INR/Unit Minimum Order Quantity : 1 Color : BLACK Protection : Overload, Short circuit, Battery low, Overheat Size : STANDARD Weight : 12 Kilograms (kg) Usage : BACKUP Standard : 469 191 339 mm Frequency (MHz) : 55 Hertz (HZ) Rated Voltage : 220 / 230 / 240 V AC Volt (V) Product Type : ELNOVA (ES3004L) 3KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Dimension (L*W*H) : 469 191 339 mm Millimeter (mm) Features : True Online Double Conversion Technology for zero interruption power supply Material : STEEL Frequency : 55 Hertz (HZ) Display Type : LCD Display (status monitoring) Cable Type : Copper, multistrand flexible cable Usage & Applications : POWER SUPPLY Operating Temperature : 0 C 40 C Celsius (oC) Rated Current : 13.6 A Ampere (amp) Power Rating : 3KVA Phase : 1:1 PHASE Warranty : 1 YEAR
