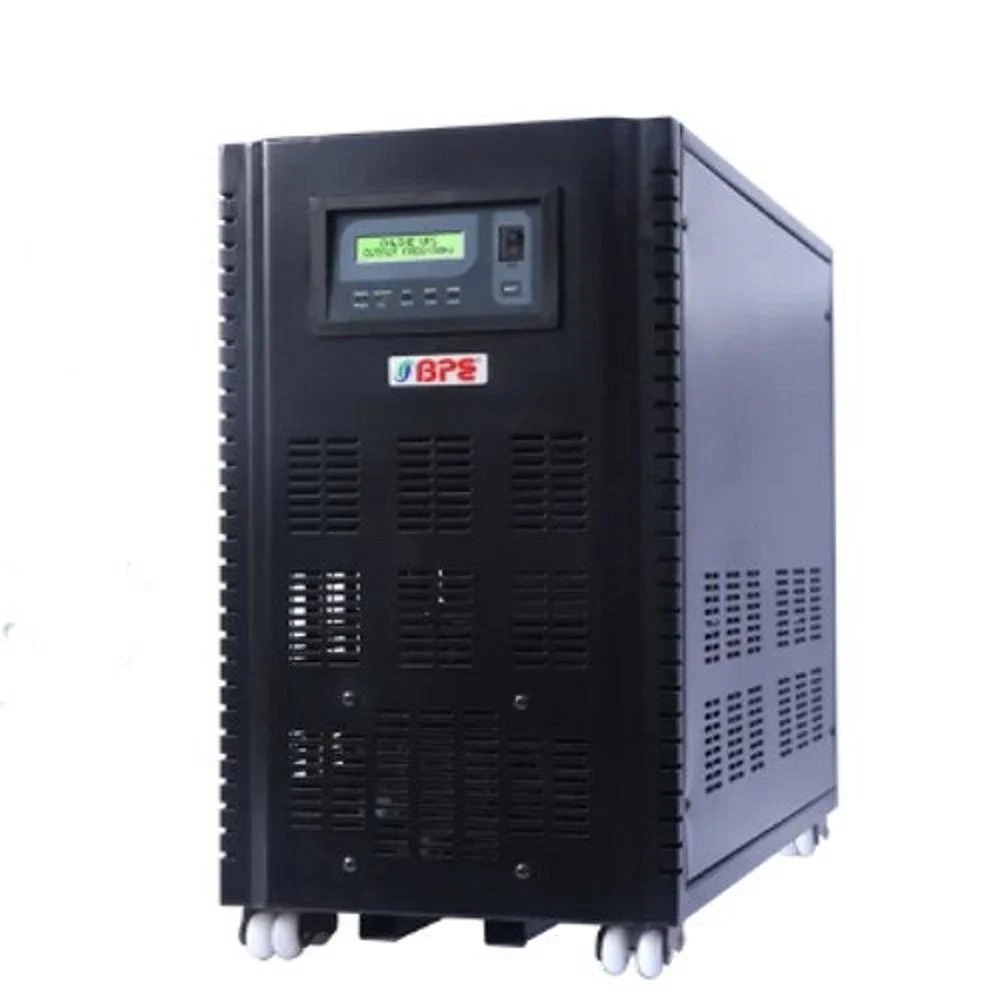

BPE (CP3305L16) 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer

Name: BPE (CP3305L16) 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 25000.0 INR
Availability: InStock

25000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 5KVA
Product Type BPE CP3305L16 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Standard Width: 615 mm Depth: 280 mm Height: 685 mm
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, over/under voltage, overheating
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (CP3305L16) 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Price And Quantity

Minimum Order Quantity 1 Unit
Price 25000.0 INR/Unit

BPE (CP3305L16) 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Product Specifications

Usage & Applications POWER SUPPLY
Frequency (MHz) 50 Hertz (HZ)
Size STANDARD
Frequency 50 Hertz (HZ)
Rated Voltage 380V / 400V / 415V AC Volt (V)
Dimension (L*W*H) Width: 615 mm Depth: 280 mm Height: 685 mm Millimeter (mm)
Power Rating 5KVA
Protection Overload, short circuit, over/under voltage, overheating
Operating Temperature 0 C to 40 C Celsius (oC)
Usage BACKUP
Cable Type Type: XLPE insulated copper cable (industrial grade)
Features Continuously converts AC DC AC
Color BLACK
Rated Current 8 10 A per phase (approx. Ampere (amp)
Standard Width: 615 mm Depth: 280 mm Height: 685 mm
Material STEEL
Warranty 1 YEAR
Display Type LCD panel (voltage, load, battery status)
Product Type BPE CP3305L16 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Phase 3 PHASE
Weight 180 Kilograms (kg)

BPE (CP3305L16) 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Trade Information

Delivery Time 7 Days

Product Description

BPE CP3305L16 5KVA 3-Phase Online UPS with Inbuilt Isolation Transformer

The BPE CP3305L16 is a true online double-conversion industrial UPS designed to provide uninterrupted, clean, and stable power for critical 3-phase electrical systems.

Overview

This UPS delivers 5 KVA ( 4 kW) capacity with a 3-phase input and 3-phase output, making it suitable for industrial and commercial environments where power stability is essential.

It uses online double conversion technology, meaning incoming AC power is continuously converted to DC and then back to AC, ensuring zero transfer time (0 ms) during power failures.

Specification Table

Specification	Details
Model	CP3305L16
Capacity	5 KVA (4 kW approx.)
UPS Type	Online Double Conversion
Phases	3 Phase Input / 3 Phase Output
Output Voltage	380415V AC (400V nominal)
Input Voltage Range	320480V AC (3-phase)
Frequency	50/60 Hz 10%
Power Factor	0.8 (standard)
Efficiency	Up to 94%
Waveform	Pure Sine Wave
Transfer Time	0 ms (no break supply)
Isolation Transformer	Inbuilt (galvanic isolation)
Battery DC Bus	192V DC
Battery Type	SMF (Sealed Maintenance Free)
Overload Capacity	125%150% short duration support
Protection	Overload, short circuit, over/under voltage, overheating
Bypass System	Built-in maintenance bypass
Display	LCD panel (voltage, load, battery status)
Cooling	Forced air cooling (fan-based)
Operating Temp	0C 40C
Noise Level	60 dB
Communication	RS-232 / SNMP optional
Enclosure Protection	IP20
Applications	Industrial machines, CNC, hospitals, data centers

If you want, I can also make:

Single-page datasheet (PDF style)
Wiring diagram (3-phase connection)
Battery backup calculation (how many hours it will run your load)
Price range in India comparison

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

BPE (MP1102L6) 2KVA ONLINE UPS EXTERNAL BATTERY Price : 42826.0 INR/Unit Minimum Order Quantity : 1 Rated Voltage : 220 240 V AC Volt (V) Usage : backup Product Type : BPE (MP1102L6) 2KVA ONLINE UPS EXTERNAL BATTERY Usage & Applications : power supply Size : Parameter Size Height 399 mm Width 192 mm Depth 469 mm Weight ~26.7 kg Frequency (MHz) : 40 70 Hz Hertz (HZ) Features : True Online Double Conversion Technology Ensures continuous, clean power with zero transfer time Pure Sine Wave Output Safe for sensitive equipment like servers, PCs, and medical devices PWM & IGBTBased Design Improves efficiency and reliability Cable Type : 3 Core Copper Cable (Phase + Neutral + Earth) Protection : Overload, short circuit, surge protection Warranty : 1 year Color : black Weight : 26.7 kg Kilograms (kg) Phase : single phase Dimension (L*W*H) : Parameter Dimension Height 399 mm Width 192 mm Depth 469 mm Weight ~26.7 kg Millimeter (mm) Power Rating : 2 KVA Frequency : 40 70 Hz Hertz (HZ) Operating Temperature : 0 40 C Celsius (oC) Rated Current : 7 8 Amps Ampere (amp) Standard : ISO 9001:2015 Material : steel Display Type : LCD Display

Send Inquiry

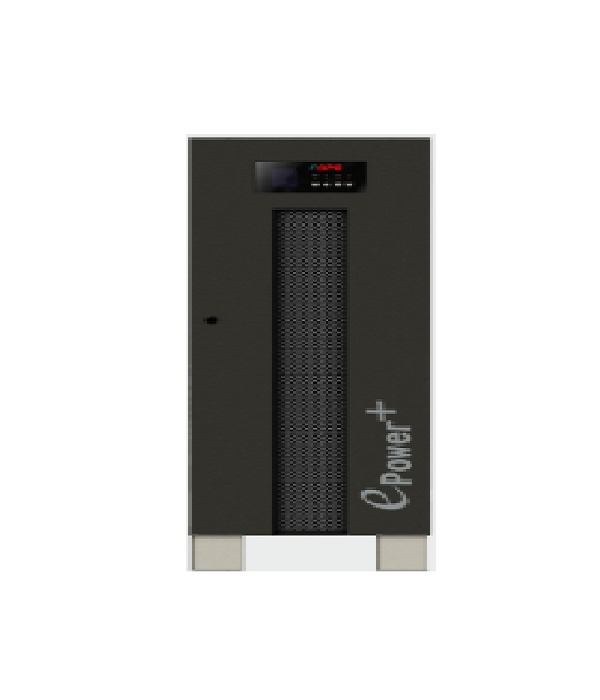

BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price : 450000.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 380 / 400 / 415 V AC Volt (V) Usage : BACKUP Product Type : BPE (GTM3390L32) 90KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Usage & Applications : POWER SUPPLY Size : Parameter Details Enclosure Type Floorstanding cabinet Width ~650 800 mm Depth ~800 900 mm Height ~1700 2000 mm Weight ~450 650 kg (UPS only, without batteries) Installation Type Indoor, ventilated electrical room Frequency (MHz) : 50 Hertz (HZ) Features : True Online Double Conversion Technology (continuous clean power) Cable Type : Copper, XLPE insulated, armoured (if outdoor) Protection : Overload, short circuit, low battery, fault alarms Warranty : 1 YEAR Color : BLACK Weight : 650 Kilograms (kg) Phase : 3:3 PHASE Dimension (L*W*H) : Parameter Details Enclosure Type Floorstanding cabinet Width ~650 800 mm Depth ~800 900 mm Height ~1700 2000 mm Weight ~450 650 kg (UPS only, without batteries) Installation Type Indoor, ventilated electrical room Millimeter (mm) Power Rating : 90KVA Frequency : 50 Hertz (HZ) Operating Temperature : 0 C to 50 C Celsius (oC) Rated Current : 130 Amps Ampere (amp) Standard : IEC/EN 620401 (UPS Safety Requirements) Material : STEEL Display Type : LCD / LED status panel
