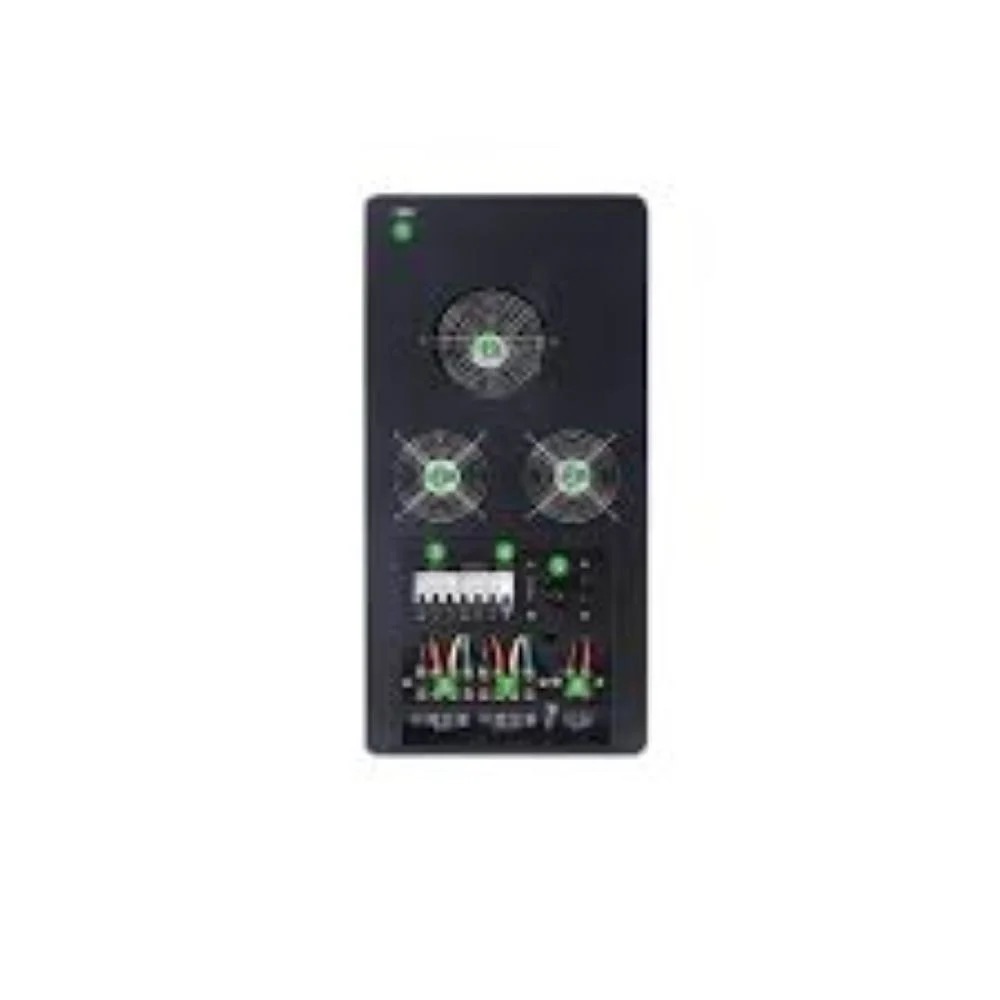

BPE (CP3320L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer

Name: BPE (CP3320L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 184080.0 INR
Availability: InStock

184080.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (CP3320L30) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Power Rating 30KVA
Standard IEC/EN62040-1, IEC/EN62040-2, CE
Frequency (MHz) 50 Hertz (HZ)
Protection Short Circuit, Over Temperature, Overload, Battery Under/Over Voltage
Usage BACKUP
Size 280 615 685 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (CP3320L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Price And Quantity

Price 184080.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (CP3320L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Product Specifications

Color BLACK
Material STEEL
Standard IEC/EN62040-1, IEC/EN62040-2, CE
Frequency 50 Hertz (HZ)
Power Rating 30KVA
Usage & Applications POWER SUPPLY
Rated Voltage 380V / 400V / 415V AC Volt (V)
Weight 225 Kilograms (kg)
Warranty 1 YEAR
Operating Temperature 0 C to 50 C Celsius (oC)
Dimension (L*W*H) Parameter Dimension Width (W) 280 mm Depth (D) 615 mm Height (H) 685 mm Weight Approx. 225 Kg Millimeter (mm)
Features Provides continuous clean and regulated power without interruption
Product Type BPE (CP3320L30) 20KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
Display Type LCD Display
Frequency (MHz) 50 Hertz (HZ)
Cable Type Copper Armoured XLPE Cable
Size 280 615 685 mm
Phase 3:3 PHASE
Protection Short Circuit, Over Temperature, Overload, Battery Under/Over Voltage
Rated Current 43A Ampere (amp)
Usage BACKUP

BPE (CP3320L30) 30KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Trade Information

Delivery Time 7 Days

Product Description

The BPE CP3320L30 is a high-performance 30kVA online UPS engineered with advanced DSP-controlled double-conversion technology. It continuously converts incoming AC power to DC and back to AC, ensuring complete isolation from mains disturbances such as voltage fluctuations, spikes, harmonics, and frequency instability.

An integrated isolation transformer provides galvanic isolation between the utility supply and connected load, enhancing protection for sensitive equipment and reducing electrical noise.

The system is ideal for industrial automation, data centers, medical systems, telecom infrastructure, CNC machinery, and enterprise IT environments where downtime is unacceptable.

Specification	Details
Model	BPE CP3320L30
UPS Type	True Online Double Conversion UPS
Capacity	30 KVA
Configuration	3 Phase Input / 3 Phase Output
Topology	Online Double Conversion
Isolation Transformer	Inbuilt Isolation Transformer
Input Voltage Range	320V 480V AC
Input Frequency Range	50 / 60 Hz 10%
Input Power Factor	>0.95
Output Voltage	400V AC
Output Frequency	50Hz 0.1%
Output Waveform	Pure Sine Wave
Output Power Factor	0.8 Standard / 0.9 Optional
Efficiency	94%
THDv	3%
Transfer Time	Zero
Overload Capacity	125% for 10 min, >125% for 60 sec, >150% for 1 sec
Battery Voltage	360V DC
Charging Current	1A 10A Standard (Optional Higher Rating)
Charging Time	<8 Hours to 95%
Display	LCD Display
LED Indications	Mains, AC Mode, DC Mode, Low Battery, Overload
Alarm Functions	Battery Low, Abnormal Supply, UPS Failure, Overload
Protection	Short Circuit, Over Temperature, Overload, Battery Under/Over Voltage
Communication Interface	SNMP / ModBus / RS-232 / USB / RS-485 (Optional)
Cooling	Forced Air Cooling
Noise Level	<50 dBA
Operating Temperature	0C to 50C
Humidity	095% RH Non-Condensing
Dimensions (WDH)	280 615 685 mm
Weight	Approx. 225 Kg
Standards	IEC/EN62040-1, IEC/EN62040-2, CE
Applications	Data Centers, CNC Machines, Hospitals, Telecom, Industrial Automation

WARRANTY :- 1 YEAR

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MICROTEK i MAXX SERIES 10.0 KVA ONLINE UPS 16/18 battery system with isolation transformer Price : 95829.0 INR/Unit Minimum Order Quantity : 1 Product Type : ONLINE UPS Dimension (L*W*H) : 562 250 830 mm Millimeter (mm) Features : Microtek i MAXX 10 kVA Online UPS Features Feature Description / Benefit True Online Double Conversion (CVCF) Provides pure sine wave output, maintaining voltage and frequency regulation independent of mains fluctuations. Builtin Isolation Transformer Protects sensitive loads from electrical noise, voltage spikes, and ground loops; adds safety. Wide Input Voltage Range 165 285 VAC allows operation in unstable or lowvoltage conditions without switching to battery unnecessarily. Pure Sine Wave Output Ensures compatibility with servers, networking equipment, medical devices, and industrial electronics. Frequency (MHz) : 50 Hertz (HZ) Display Type : Smart LCD Display (Liquid Crystal Display) Size : standard Phase : 1 PHASE Protection : UPS Protection Features Protection Type Description / Function Overload Protection Automatically bypasses or shuts down if connected load exceeds rated capacity (~110 125 % for a few minutes, >150 % instant). Prevents inverter damage. Short Circuit Protection Instant shutdown in case of short circuit in load or output cabling to prevent fire or internal damage. Over Voltage Protection Shuts down or bypasses UPS if input mains voltage exceeds safe limits, protecting the UPS and connected equipment. Under Voltage Protection UPS goes on battery or shuts down if mains voltage drops below Cable Type : Copper multistrand, PVC / XLPE insulated Usage : BACKUP Rated Current : 8000 Watt (w) Color : BLACK Power Rating : 10.0KVA/8.0KW Frequency : 50 Hertz (HZ) Material : steel Standard : Microtek i MAXX 10 kVA Online UPS Standard Specs Parameter Specification Model / Series i MAXX Transformer Based Online UPS Rated Power 10 kVA / 8 kW Input Single phase, 208 230 VAC 15 % Input Frequency 40 55 Hz Output Single phase, 208 230 VAC 1 % Output Frequency 50 Hz 0.1 Hz (Battery mode) Waveform Pure sine wave DC Voltage 192 VDC (16 18 12 V batteries Rated Voltage : 208V AC/ 220V AC / 230V AC Volt (V) Warranty : 1 year Weight : 86 Kilograms (kg) Usage & Applications : power supply Operating Temperature : 0 C to 45 C Celsius (oC) Conductor : Copper cable, 4 sq mm 10 sq mm depending on distance & installation

Send Inquiry

MAX LIFE 3 KVA ONLINE UPS Price : 47884.0 INR/Unit Minimum Order Quantity : 1 Product Type : ONLINE UPS Dimension (L*W*H) : 46.5 19 31.8 cm (L W H) Centimeter (cm) Features : True online double conversion with pure sine wave output Adjustable charging current via LCD panel Cold start from battery High current charger (60 A) Generator compatible and wide input range Overload and short circuit protection Advanced battery support with parallel scaling option Frequency (MHz) : 50 HZ Hertz (HZ) Display Type : load level, battery level, AC mode or battery mode, bypass mode, and fault indicators. Size : Physical Size / Dimensions: Length: ~46.5 cm Width: ~19 cm Height: ~31.8 cm (L W H) Phase : SINGLE Protection : Overload Protection / Short CircuiGenerator Compatibility/ t ProOver Voltage & Under Voltage Protection/ Wide Input Voltage Range Cable Type : Recommended Cable Types Input AC Cable (Mains to UPS) Type: 3core flexible copper cable (Live, Neutral, Earth) Specification: 4 mm copper, heat resistant PVC or FRLS (Fire Retardant Low Smoke) insulation Voltage Rating: 300 V AC Notes: Properly fused; follow local electrical codes. Output AC Cable (UPS to Equipment / Load) Type: Flexible copper wire or standard IEC extension cabling Specification: 4 mm copper for full load (~2700 W / 12 A at 230 V) Voltage Rating: 300 450 V AC, depending on insulation standard DC Battery Cable (UPS to Battery Bank) Type: Flexible, stranded copper cable Specification: 10 16 mm (depending on battery AH and distance) Voltage Rating: 60 V DC Insulation: Heat resistant, batterygrade PVC or XLPE Notes: Keep cable runs short and use properly rated terminals to handle up to 60 A charging current. Material Conductor: Highconductivity copper (preferred over aluminum for low resistance and heat) Insulation: Fireresistant, heatresistant, and flexible for safe routing Usage : BACKUP Rated Current : 3 kVA ~2700 W Watt (w) Color : BLACK Power Rating : Rated Power Capacity: 3 kVA (kilovolt ampere) Frequency : 50 HZ Hertz (HZ) Material : steel / metal sheet body with powder coated finish Standard : Standard packaging includes protective padding around the UPS, so overall shipping box may be ~5 7 cm larger in each dimension and a few kg heavier. Typical total package weight 17 18 kg. Rated Voltage : 220 V / 230 V / 240 VAC Volt (V) Warranty : 1 YEAR Weight : 15.5 Kilograms (kg) Usage & Applications : POWER SUPPLY Operating Temperature : 0 C 50 C Celsius (oC) Conductor : Recommended Cable Types Input AC Cable (Mains to UPS) Type: 3core flexible copper cable (Live, Neutral, Earth) Specification: 4 mm copper, heat resistant PVC or FRLS (Fire Retardant Low Smoke) insulation Voltage Rating: 300 V AC Notes: Properly fused; follow local electrical codes. Output AC Cable (UPS to Equipment / Load) Type: Flexible copper wire or standard IEC extension cabling Specification: 4 mm copper for full load (~2700 W / 12 A at 230 V) Voltage Rating: 300 450 V AC, depending on insulation standard DC Battery Cable (UPS to Battery Bank) Type: Flexible, stranded copper cable Specification: 10 16 mm (depending on battery AH and distance) Voltage Rating: 60 V DC Insulation: Heat resistant, batterygrade PVC or XLPE Notes: Keep cable runs short and use properly rated terminals to handle up to 60 A charging current. Material Conductor: Highconductivity copper (preferred over aluminum for low resistance and heat) Insulation: Fireresistant, heatresistant, and flexible for safe routing

Send Inquiry

BPE MFX1102L6 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price : 26923.0 INR/Unit Minimum Order Quantity : 1 Product Type : BPE MFX1102L6 2KVA ONLINE BPE BPE MFX1102L6 2KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Dimension (L*W*H) : Parameter Dimension Height 399 mm Width 192 mm Depth 469 mm Weight ~26 27 kg (without batteries) Millimeter (mm) Features : Feature Description True Online Double Conversion Technology Provides continuous clean power with 0 ms transfer time during power failure Pure Sine Wave Output Ensures safe operation for sensitive equipment Inbuilt Isolation Transformer Provides electrical isolation, reduces noise, and improves safety Wide Input Voltage Range Operates within 110 300 V AC without switching to battery High Input Power Factor >0.99 reduces input current and improves efficiency LCD Display Panel Displays input/output voltage, load level, battery status, and fault alarms Static & Manual Bypass Ensures power supply to load during UPS maintenance or fault Advanced Battery Management Automatic charging and protection against deep discharge Generator Compatible Works smoothly with generator power Communication Interface RS232 / SNMP for remote monitoring Protection Features Overload, short circuit, surge, and battery protection High Efficiency Up to 94% efficiency in online mode EMI / RFI Noise Filter Protects connected equipment from electrical interference Suitable For: Servers, networking equipment, medical devices, laboratory equipment, and industrial control systems. If you want, I can also prepare a complete technical datasheet format (Description + Specs + Size + Standards + Features) ready for tender documents. Frequency (MHz) : 50 / 60 Hz Hertz (HZ) Display Type : LCD Display Size : Parameter Size Height 399 mm Width 192 mm Depth 469 mm Phase : 1 PHASE Protection : Overload, Short Circuit, Battery Deep Discharge, Surge Protection Cable Type : Type: Copper PVC insulated multicore cable Usage : BACKUP Rated Current : 2000VA Volt (v) Color : BLACK Power Rating : 1.6 kW (1600 watts). Frequency : 50 / 60 Hz Hertz (HZ) Material : STEEL Standard : Standard Description IEC 620401 General and safety requirements for UPS systems IEC 620402 Electromagnetic Compatibility (EMC) requirements IEC 620403 Method of specifying performance and test requirements IS 16242 (Part 1) Indian standard equivalent for UPS safety CE Certification Conformity with European safety, health, and environmental protection standards RoHS Compliance Restriction of hazardous substances in electrical equipment ISO 9001 Quality management system for manufacturing Rated Voltage : 220 / 230 / 240 V AC Volt (V) Warranty : 1 YEAR Weight : 26.7 Kilograms (kg) Usage & Applications : POWER SUPPLY Operating Temperature : 0 C to 40 C Celsius (oC)

Send Inquiry

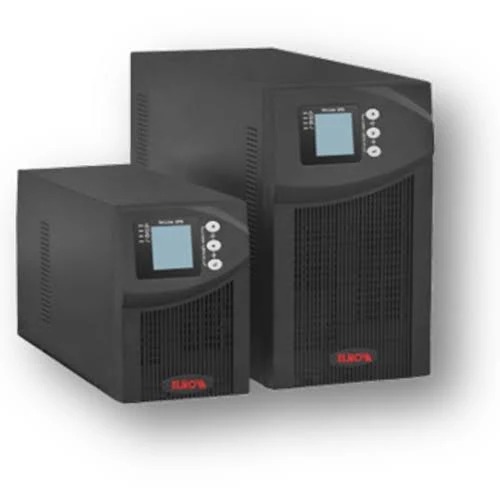

ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Price : 16699.0 INR/Unit Minimum Order Quantity : 1 Product Type : ELNOVA (ES1004L) 1KVA 1:1 PHASE ONLINE UPS EXTERNAL BATTERY Dimension (L*W*H) : 415 145 220 mm Millimeter (mm) Features : https://chatgpt.com/#:~:text=%E2%9A%A1%20True%20Online%20Double%20Conversion%20Technology%20for%20continuous%20power%20protection Frequency (MHz) : 50/60 Hz Hertz (HZ) Display Type : LED / LCD status indicators Size : 415 145 220 mm Phase : 1:1 phase Protection : Industrialgrade electronic protection system Cable Type : Type: 3core PVC insulated copper cable Usage : backup Rated Current : 4.5 5.5 A Ampere (amp) Color : black Power Rating : 1KVA Frequency : 50/60 Hz Hertz (HZ) Material : STEEL Standard : True Online Double Conversion UPS Technology Rated Voltage : 220 / 230 / 240 V AC Volt (V) Warranty : 1 YEAR Weight : 5.8 Kilograms (kg) Usage & Applications : POWER SUPPLY Operating Temperature : 0 C 45 C Celsius (oC)
