BPE (MF1110B16) 10KVA ONLINE UPS INBUILT BATTERY

90000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (MF1110B16) 10KVA ONLINE UPS INBUILT BATTERY
Power Rating 10 kVA
Standard IEC/EN 62040 2, FCC Part 15
Frequency (MHz) 50 Hertz (HZ)
Protection Short circuit, overload, over/under voltage, over temp, battery low, DC bus protection
Usage BACKUP
Size STANDARD
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MF1110B16) 10KVA ONLINE UPS INBUILT BATTERY Price And Quantity

Minimum Order Quantity 1 Unit
Price 90000.0 INR/Unit

BPE (MF1110B16) 10KVA ONLINE UPS INBUILT BATTERY Product Specifications

Usage & Applications POWER SUPPLY
Color BLACK
Usage BACKUP
Standard IEC/EN 62040 2, FCC Part 15
Weight 94 kg Kilograms (kg)
Features DSP controlled double conversion topology continuously regenerates clean AC power for sensitive equipment, with zero switchover time during power failure.
Phase 1 PHASE
Dimension (L*W*H) 192 mm 460 mm 655 mm Millimeter (mm)
Frequency 50 Hertz (HZ)
Rated Current 43.5 Ampere (amp)
Protection Short circuit, overload, over/under voltage, over temp, battery low, DC bus protection
Warranty 1 YAER
Material STEEL
Size STANDARD
Power Rating 10 kVA
Display Type LCD: Vin, Vout, frequency, battery, load %, alarms
Operating Temperature 0 50 C Celsius (oC)
Frequency (MHz) 50 Hertz (HZ)
Cable Type ~43 44 A @ 230 V AC (single-phase, unity power factor)
Product Type BPE (MF1110B16) 10KVA ONLINE UPS INBUILT BATTERY
Rated Voltage 220 V / 230 V / 240 V AC Volt (V)

BPE (MF1110B16) 10KVA ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 7 Days

Product Description

Description 10KVA BPE Online UPS (Typical MF/MFII/MFP Series)

Type: True Online DoubleConversion UPS
Capacity: 10kVA ( 8kW typical)
Input:

Specification 10KVA BPE Online UPS (e.g., MFII1110B16 / MF1110L16)

Specification	Details
Model	MFII1110B16 / MF1110L16 Series (10kVA / ~8kW)
UPS Type	True Online DoubleConversion (DSP/IGBT)
Input Voltage	220V / 230V / 240V AC (L+N+PE)
Input Voltage Range	~100V300V AC (Load dependent)
Input Frequency	50/60Hz 10% (Auto sensing)
Input Power Factor	0.99
Output Voltage	220V / 230V / 240V AC (Configurable)
Output Power Factor	1.0 (Unity)
Voltage Regulation	1%
Output Frequency	50/60Hz (Sync to mains) / Battery mode 0.51Hz
Output Waveform	Pure Sine Wave
Crest Factor	3:1
Total Harmonic Distortion (THDv)	1%
Efficiency	~94% (Online mode), ~99% (ECO mode)
Battery Configuration	Inbuilt 16 12V batteries (192V DC) (Configurable)
Typical Battery Recharge	~45h to 90%
Charge Current	~1014A (Configurable)
Bypass & Cold Start	Builtin static bypass, cold start feature
Display/Monitoring	LCD: Vin, Vout, frequency, battery, load %, alarms
Protections	Short circuit, overload, over/under voltage, over temp, battery low, DC bus protection
Communication	RS232 standard; optional SNMP / USB / Modbus cards
Parallel Capability	Up to 4 units (optional)
Operating Temp/Humidity	050C / 095% noncondensing
Noise Level	<55dBA
Mounting / Form Factor	Tower or rack (varies by submodel)
Approx. Dimensions & Weight	~460192655mm; ~94kg (varies)
Standards / Safety	IEC/EN620401, 2, 3; BIS; RoHS; CE; FCC
Generator Compatibility	Yes
ECO Mode	Supported

WARRANTY :- 1YEAR
Key Notes

These UPS units are doubleconversion online meaning the output is always regenerated, offering the best protection against power fluctuations and outages.
Battery voltage like 192V DC implies 16 12V batteries; many sellers configure this as inbuilt battery packs, especially for models ending with B16 (16 batteries).
ECO mode lets the UPS operate more efficiently during stable mains to save energy.

Typical Applications

Servers & networking equipment
Data centers & telecom systems
Industrial machinery requiring stable power
Medical and IT systems needing uninterrupted backup

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MAX LIFE 1 KVA ONLINE UPS Price : 23258.0 INR/Unit Minimum Order Quantity : 1 Weight : 6.4 Kilograms (kg) Color : BLACK Usage : BACKUP Usage & Applications : POWER SUPPLY Rated Current : 3.5A Ampere (amp) Frequency : 50 Hertz (HZ) Dimension (L*W*H) : (L W H) of ~39.7 14.5 22 cm Centimeter (cm) Phase : 1 PHASE Warranty : 1 YEAR Protection : BuiltIn Protection Features These are common protection mechanisms in doubleconversion online UPS designs from Microtek (especially MAX LiFe / MAX+ series): True Online DoubleConversion Provides continuous power conditioning (AC DC AC) to eliminate spikes, sags, and electrical noise. ShortCircuit Protection Detects and cuts output in the event of a short, preventing damage to UPS and connected gear. Overload Protection UPS shuts down or switches to bypass if input/current exceeds safe limits. OverTemperature Protection Automatically shuts down or limits operation if internal heat gets too high. EMI / RFI Noise Filtering Suppresses electromagnetic and radio frequency interference on the power line. OverVoltage & UnderVoltage CutOff Prevents output when mains voltage is outside safe bounds (protects electronics from spikes/sags). DC Fan Failure Protection Shuts down or alarms if cooling fan fails, avoiding overheating. Advanced Battery Management (ABM) Protects battery life and prevents overcharging or deep discharge. Generator Compatibility Automates safe operation with generator power without erratic switching. Optional Static Bypass Enable/Disable Protects load if the UPS inverter has an internal fault by routing directly to mains (configurable). RS232/SNMP Communication (optional) Alerts and logging for system faults and protection events. Why These Matter Clean & continuous power: Online designs mean zero switchover time and stable sinewave output ideal for PCs, routers, NAS, etc. Battery safety: ABM helps prevent battery damage from improper charging or deep discharge. Device safety: Surge/overvoltage cutoff and noise filtering reduce risk of electrical stress on sensitive electronics. Rated Voltage : 110280VAC Volt (V) Frequency (MHz) : 50 Hz Hertz (HZ) Product Type : ONLINE UPS Power Rating : Rated Output Capacity: 1 KVA (1000 VA) Display Type : LCD display provides clear information on UPS status such as load level, battery level, AC mode, battery mode, bypass mode, fault indications and other operating parameters. Operating Temperature : 0 C to 40 C Celsius (oC) Size : Length: 397 mm Width: 145 mm Height: 220 mm Material : STEEL Standard : Standard Physical & Package Dimensions (Product Spec) Features : Core Performance & Technology / DispSummary Feature HighlightsProtection & Reliability/ lay & Monitoring/ Efficiency & Eco Modes Cable Type : Here s a bulletpoint summary of recommended cable types for the Max Life 1 KVA Online UPS: AC Input (Mains Supply): Flexible copper cable, PVC or FRLS insulated Standard 230 V AC power cable (typically 1.5 m with plug) Connects UPS safely to the mains supply AC Output (to Devices): Flexible copper wire, PVC insulated Standard 230 V output cable / power lead Feeds connected devices like PCs, routers, and small servers Battery Connection (External / 48 V DC): Stranded highcurrent copper cable, flexible 10 AWG 6 AWG recommended for safe current handling PVC or rubber insulation suitable for DC battery voltage Keep cable short and direct to reduce voltage drop and heating Earthing / Grounding: Copper conductor, minimum 2.5 mm Insulated/shielded for safety Connects UPS chassis to earth for protection General Tips: Use stranded copper cables for battery connections for flexibility and reliability Avoid aluminum cables; copper is preferred for lower resistance Ensure all cables are rated for expected current and meet local electrical codes

Send Inquiry

MICROTEK MAX+ 2 KVA ONLINE UPS 1:1 WITH ISOLATION TRANSFORMER Price : 29671.0 INR/Unit Minimum Order Quantity : 1 Weight : 17.8 Kilograms (kg) Color : BLACK Usage : BACKUP Usage & Applications : power supply Rated Current : 1800W Watt (w) Frequency : 50 Hertz (HZ) Dimension (L*W*H) : 19 cm (W) 42.1 cm (L) 31.8 cm (H) Centimeter (cm) Phase : 1 PHASE Warranty : 2 years Protection : IP20 Rated Voltage : 118 V 295 V AC Volt (V) Frequency (MHz) : 50 Hertz (HZ) Product Type : online ups Power Rating : 2 KVA / 1800W Display Type : Summary: You get a digital LCD interface for easy monitoring of UPS status and performance Operating Temperature : 0 40 C Celsius (oC) Size : Standard Material : steel Standard : 230 V AC Features : True Double Conversion Online Technology Converts AC DC AC for continuous pure sine wave power, ensuring no interruption even during mains disturbance. Cable Type : Standard mains single phase AC power cable (usually a 3 core cable with Live, Neutral, Earth) for connecting the UPS to the AC mains supply.

Send Inquiry

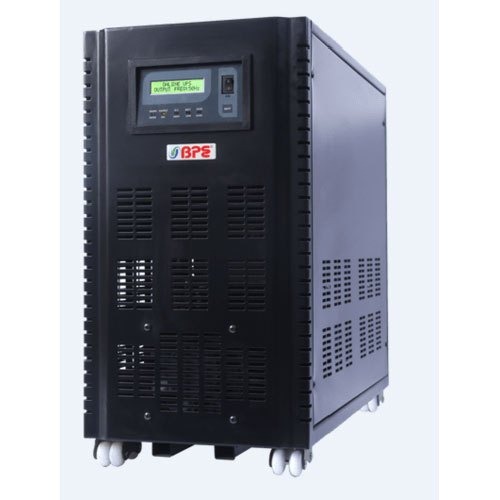

BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY Price : 150000.0 INR/Unit Minimum Order Quantity : 1 Weight : 37 Kilograms (kg) Color : BLACK Usage : BACKUP Usage & Applications : POWER SUPPLY Rated Current : 87 A Ampere (amp) Frequency : 50 Hertz (HZ) Dimension (L*W*H) : Dimension Value Height 616 mm Width 502 mm Depth 250 mm Net Weight 37 kg Millimeter (mm) Phase : 1 PHASE Warranty : 1 YEAR Protection : Internal automatic & manual bypass, overload protection, surge suppression Rated Voltage : 380 415 V AC, Volt (V) Frequency (MHz) : 50 Hertz (HZ) Product Type : BPE (MF3120L16) 20KVA ONLINE UPS EXTERNAL BATTERY PRICE Power Rating : 20 kVA Display Type : Multifunction LCD panel showing load, battery, alarms Operating Temperature : 0 45 C, Celsius (oC) Size : STANDARD Material : STEEL Standard : ISO 900 Features : Provides continuous clean power by converting AC DC AC, isolating the load from mains disturbances and eliminating transfer time during outages. Cable Type : 3 Core Flexible Copper Cable PVC Insulated, FRLS / Fire Retardant LSZH (preferred), 600/1000 V grade

Send Inquiry

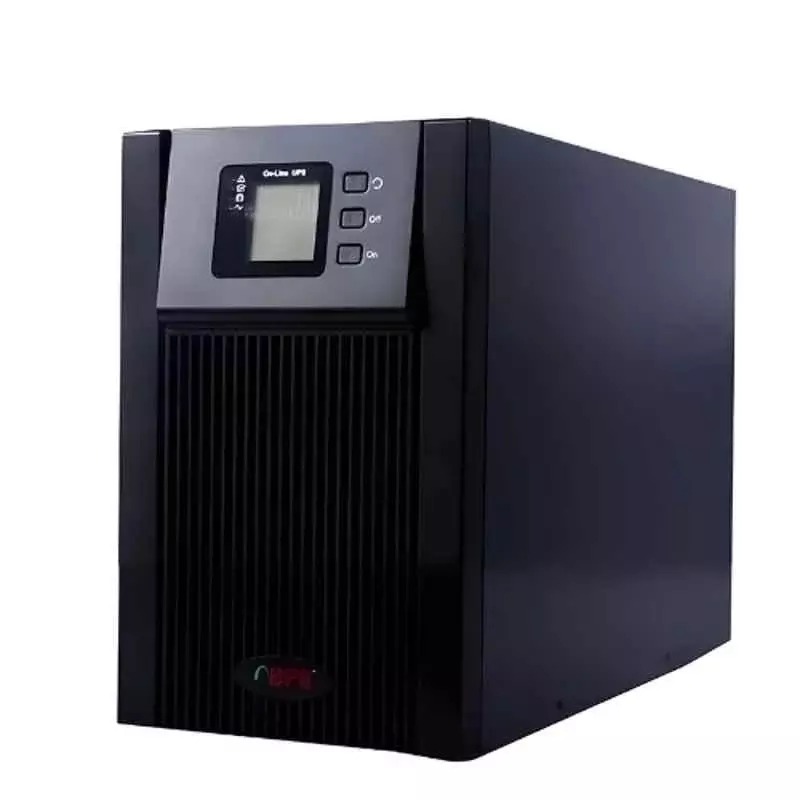

BPE (MF1105L16) 5KVA ONLINE UPS EXTERNAL BATTERY Price : 42000.0 INR/Unit Minimum Order Quantity : 1 Weight : 26.7 Kilograms (kg) Color : BLACK Usage : BACKUP Usage & Applications : POWER SUPPLY Rated Current : 17.4A Ampere (amp) Frequency : 50/60 Hertz (HZ) Dimension (L*W*H) : Unit Dimensions (W D H): 469 192 399 mm Millimeter (mm) Phase : SINGHLE PHASE Warranty : 1 YEAR Protection : Overload, short circuit, surge protection Rated Voltage : 220V / 230V / 240V AC Volt (V) Frequency (MHz) : 50/60 Hertz (HZ) Product Type : BPE (MF1105L16) 5KVA ONLINE UPS EXTERNAL BATTERY Power Rating : 5 KVA Display Type : LCD Display with status & alarms Operating Temperature : 0 C to 40 C Celsius (oC) Size : STANDARD Material : STEEL Standard : IEC 620401 (General safety requirements for UPS) Features : Performance Features Pure sine wave output safe for sensitive equipment High input power factor (>0.99) reduces power loss Efficiency up to 94% (online mode) & 99% in ECO mode Low harmonic distortion ( 1 3%) for stable performanc Cable Type : Copper, 3 Core (Phase + Neutral + Earth)
