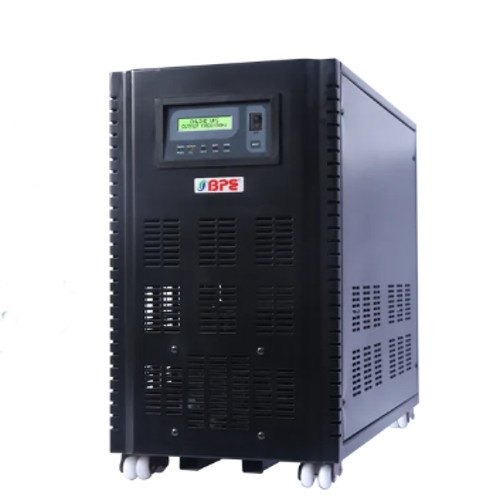

BPE (PB1108L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer

54500.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 8 KVA (8000 VA)
Product Type BPE (PB1108L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer
Standard IEC 62040-1
Frequency (MHz) 50/60 Hz Hertz (HZ)
Protection Protection against input over-voltage, under-voltage, and frequency fluctuations
Usage backup
Size 399 469 192 mm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (PB1108L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Price And Quantity

Price 54500.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (PB1108L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Product Specifications

Size 399 469 192 mm
Usage backup
Operating Temperature 0 C to 40 C Celsius (oC)
Power Rating 8 KVA (8000 VA)
Material steel
Rated Voltage 220V AC Volt (V)
Protection Protection against input over-voltage, under-voltage, and frequency fluctuations
Usage & Applications power supply
Frequency 50/60 Hz Hertz (HZ)
Standard IEC 62040-1
Dimension (L*W*H) 399 469 192 mm Millimeter (mm)
Product Type BPE (PB1108L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer
Phase 1 phase
Cable Type Copper, XLPE / PVC insulated 10 sq.mm
Warranty 1 year
Features True Online Double Conversion Technology Provides continuous, clean and stable power without interruption
Rated Current 36 37 Amps Ampere (amp)
Color black
Weight 26.7 Kilograms (kg)
Display Type LCD Display Panel
Frequency (MHz) 50/60 Hz Hertz (HZ)

BPE (PB1108L16) 10KVA ONLINE UPS INBUILT Isolation Transfarmer Trade Information

Delivery Time 7 Days

Product Description

Overview

The BPE PB1108L16 is a true online double-conversion UPS designed for critical equipment. It provides continuous, clean power with zero transfer time and includes an inbuilt isolation transformer for enhanced protection against electrical disturbances.

BPE PB1108L16 (8 KVA) Online UPS Specifications Table

BPE PB1106L16 / PB1108L16 Series Online UPS

43,000Aajjo.com

Specification	Details
Model	PB1108L16
Capacity	8 KVA / 6.4 KW
Technology	True Online Double Conversion
Phase	1 Phase Input 1 Phase Output
Isolation Transformer	Inbuilt
Output Voltage	220V (230V / 240V selectable)
Output Waveform	Pure Sine Wave
Efficiency	>90%
Power Factor	0.8
Voltage Distortion	<2%
Frequency	50/60 Hz
Transfer Time	0 ms (No interruption)
Input Voltage Range	140V 280V (working)
Extended Input Range	110V 285V
Input Power Factor	>0.99
Battery Type	External (SMF / Tubular)
Battery Voltage	192V DC
Battery Capacity	7Ah 100Ah
Charging Current	Up to 10A
Backup Time	20 min to 300+ min (depends on battery)
Bypass	Automatic & Manual
Display	LCD Display Panel
Communication	RS-232, SNMP Slot
Noise Level	<50 dB
Dimensions (HxWxD)	399 469 192 mm
Weight	~26.7 kg
Operating Temp	0C to 40C

Key Highlights

Inbuilt Isolation Transformer for safety
Zero transfer time (best for sensitive equipment)
Wide input range works well with DG sets / voltage fluctuation
Flexible backup depending on battery bank
