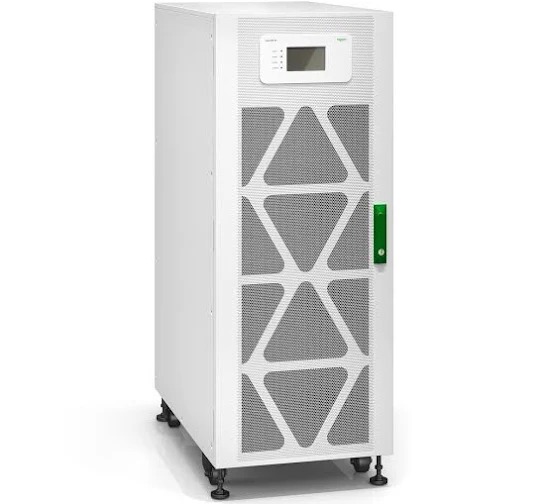

BPE (GTM33120L32) 120KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

Name: BPE (GTM33120L32) 120KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 681450.0 INR
Availability: InStock

681450.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (GTM33120L32) 120KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 120KVA
Standard IP20
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, Short Circuit, Battery Low, Over Temperature
Usage backup
Size 890 790 1600 mm (W D H)
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GTM33120L32) 120KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 681450.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (GTM33120L32) 120KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Rated Current 173A Ampere (amp)
Features True Online Double Conversion Technology
Rated Voltage 380V / 400V / 415V AC Volt (V)
Protection Overload, Short Circuit, Battery Low, Over Temperature
Size 890 790 1600 mm (W D H)
Usage & Applications POWER SUPPLY
Material STEEL
Warranty 1 YEAR
Frequency (MHz) 50 Hertz (HZ)
Color black
Usage backup
Product Type BPE (GTM33120L32) 120KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Power Rating 120KVA
Phase 3:3 phase
Cable Type 3.5 Core / 4 Core Copper Armoured XLPE Cabl
Frequency 50 Hertz (HZ)
Standard IP20
Operating Temperature 0 C to 50 C Celsius (oC)
Dimension (L*W*H) 890 790 1600 mm (W D H) Millimeter (mm)
Weight 635 Kilograms (kg)
Display Type 7 Color Touch Screen LCD

BPE (GTM33120L32) 120KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 7 Days

Product Description

BPE (GTM33120L32) 120KVA 3:3 Phase Online UPS with External Battery Description

The BPE GTM33120L32 is a high-performance 120KVA three-phase online UPS system engineered to deliver continuous, clean, and reliable power for critical industrial and commercial applications. Built with advanced DSP-controlled true online double-conversion technology, the UPS provides complete protection against power disturbances including voltage fluctuations, surges, spikes, harmonics, and outages.

Designed in a 3 Phase Input and 3 Phase Output configuration, the system ensures stable power distribution for heavy-duty loads such as data centers, medical equipment, industrial automation systems, telecom infrastructure, banking systems, and manufacturing facilities.

This model supports an external battery bank, allowing flexible backup time selection based on operational requirements. The UPS features an inbuilt isolation transformer, intelligent battery management, high input power factor, low harmonic distortion, and zero transfer time to guarantee uninterrupted operation of connected equipment.

The GTM33120L32 is equipped with a user-friendly LCD touch display for real-time monitoring and diagnostics. Its parallel redundancy capability supports scalability and enhanced reliability for mission-critical environments.

Palika bazar, Delhi

Tushar

Specification	Details
Model	BPE GTM33120L32 / EPX+33120L32
UPS Type	True Online Double Conversion UPS
Capacity	120 KVA / 108 KW
Input Phase	3 Phase
Output Phase	3 Phase
Input Voltage	380V / 400V / 415V AC
Output Voltage	380V / 400V / 415V AC
Frequency Range	50/60Hz Auto Sensing
Input Power Factor	0.99
Output Power Factor	0.9
Efficiency	Up to 9495%
Battery Type	External Battery Bank
Battery Voltage	384V DC
Battery Configuration	32 12V Batteries
Charging Current	Configurable
Waveform	Pure Sine Wave
Transfer Time	Zero Transfer Time
Voltage Regulation	1%
THDv	1%
Crest Factor	3:1
Overload Capacity	110% for 60 min, 125% for 10 min
Isolation Transformer	Inbuilt
Parallel Operation	Up to 6 Units
Display	7 Color Touch Screen LCD
Communication Ports	RS232 / SNMP / USB / Modbus / Dry Contact
Protection	Overload, Short Circuit, Battery Low, Over Temperature
Cooling System	Redundant Fan Cooling
Noise Level	<65 dBA
IP Rating	IP20
Operating Temperature	0C to 50C
Dimensions (WDH)	890 790 1600 mm
Weight	Approx. 635 Kg
Application	Data Centers, Hospitals, Industries, Telecom, CNC Machines

WARRANTY :- 1 YEAR

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MICROTEK i MAXX SERIES 7.5 KVA ONLINE UPS 16/18 battery system with isolation transformer Price : 81720.0 INR/Unit Minimum Order Quantity : 1 Product Type : ONLINE UPS Phase : Single phase Standard : Electrical standards / certifications the UPS complies with (like IS, IEC, CE, RoHS)? Standard features / configuration of the Microtek 7.5 kVA UPS? Operating Temperature : 0 C to 40 C Celsius (oC) Display Type : LCD (Liquid Crystal Display) Usage & Applications : power supply Warranty : 1 Year Color : BLACK Usage : Backup Power Rating : 7.5 KVA /6.0 KW Frequency : 50 Hertz (HZ) Dimension (L*W*H) : 562 mm 250 mm ~830 mm Millimeter (mm) Weight : 78 Kilograms (kg) Rated Current : 6000 Watt (w) Rated Voltage : 208V AC/ 220VAC / 230V AC Volt (V) Protection : Voltage spike/surge & over voltage cut off Size : STANDARD Material : steel Frequency (MHz) : 50 Hertz (HZ) Features : Protection & Safety Inbuilt OVCD (Over Voltage Cut Off Device) with surge suppression. Short circuit and overload protection protects UPS and load. Over temperature shutdown prevents overheating. EMI/RFI noise filtering reduces electrical interference. Protection from DC fan failure. Maintenance bypass & static bypass switch enables service without load interruption Cable Type : 4 mm 6 mm flexible copper PVC insulated singlecore for short runs (<10 m). Conductor : Type: Copper or aluminum wire (copper preferred for efficiency and heat tolerance)

Send Inquiry

Microtek 3 KVA Online UPS with Internal batteries Price : 32294.0 INR/Unit Minimum Order Quantity : 1 Product Type : Microtek Online UPS 3 KVA Phase : SINGLE PHASE Standard : Doubleconversion online topology zero transfer time; best for sensitive electronics. Pure sine wave output ideal for computers, servers, networking gear. Wide input voltage tolerance good for areas with unstable mains. Internal SMF batteries (72 V) reduces need for external battery bank setup. Smart protection & monitoring status display and optional connectivity. Operating Temperature : 0 C to 40 C Celsius (oC) Display Type : LCDLED Combo Display Usage & Applications : POWER SUPPLY Warranty : 2 YEAR Color : BLACK Usage : BACKUP Power Rating : 3 KVA (3000 VA) Frequency : 50 Hertz (HZ) Dimension (L*W*H) : 42 19 32 Centimeter (cm) Weight : 28.9 Kilograms (kg) Rated Current : 3 KVA (3000 VA) Volt (v) Rated Voltage : 110 VAC300 VAC Volt (V) Protection : Power & Equipment Protection Features Size : Approximate Size & Weight (Online UPS 3 KVA with Internal Batteries Material : STEEL Frequency (MHz) : 50 Hertz (HZ) Features : Why These Features Matter Stable power: Double conversion and pure sine output protect sensitive electronics. Better battery health: Advanced charging and management reduce wear. Improved safety: Multiple protection layers prevent damage during surges, temperature rise, or overload. Easy monitoring: LCD and communication options keep you informed and connected. Cable Type : Input Conductor (AC Mains) Singlephase AC input (230 V typical) Recommended wire size depends on load (rated current ~13 A at full load) Typical wire size: 2.5 mm copper conductor for short distances (<10 m), heavier if longer run. Must have earthing / grounding for safety. Output Conductor (UPS to Load) UPS outputs ~230 V AC, max rated current ~13 A Wire size: 2.5 mm copper is typically sufficient for most office/home equipment If supplying multiple highload devices, a 4 mm conductor may be considered to minimize voltage drop. Battery Conductors (Internal) Inside the UPS, VRLA/SMF batteries are connected via internal copper bus bars or flexible braided copper wires Designed to handle high DC currents safely (~12 15 A continuous for a 3 KVA system) Conductor : Input Conductor (AC Mains) Singlephase AC input (230 V typical) Recommended wire size depends on load (rated current ~13 A at full load) Typical wire size: 2.5 mm copper conductor for short distances (<10 m), heavier if longer run. Must have earthing / grounding for safety. Output Conductor (UPS to Load) UPS outputs ~230 V AC, max rated current ~13 A Wire size: 2.5 mm copper is typically sufficient for most office/home equipment If supplying multiple highload devices, a 4 mm conductor may be considered to minimize voltage drop. Battery Conductors (Internal) Inside the UPS, VRLA/SMF batteries are connected via internal copper bus bars or flexible braided copper wires Designed to handle high DC currents safely (~12 15 A continuous for a 3 KVA system)

Send Inquiry

BPE (MF3110L16) 10KVA ONLINE UPS EXTERNAL BATTERY Price : 95000.0 INR/Unit Minimum Order Quantity : 1 Product Type : BPE (MF3110L16) 10KVA ONLINE UPS EXTERNAL BATTERY Phase : 1 PHASE Standard : IEC 62040 1 / IS 13252 Part 1 / EN 62040 1 (ensures electrical safety) Operating Temperature : 0 50 C Celsius (oC) Display Type : Multi function LCD Display: Shows detailed UPS status information such as input voltage, output voltage, battery voltage, load level, frequency, and operation mode (online, battery, bypass etc.). It also displays alarms and fault conditions. Usage & Applications : POWER SUPPLY Warranty : 1 YEAR Color : black Usage : BAckup Power Rating : 10 kVA Frequency : 50 Hertz (HZ) Dimension (L*W*H) : Dimensions (UPS Unit Only) Width: 192 mm Depth: 460 mm Height: 350 mm Net Weight: ~33 kg Millimeter (mm) Weight : 100 kg Kilograms (kg) Rated Current : 8 kW (8000 W) Watt (w) Rated Voltage : 380 V / 400 V / 415 V AC Volt (V) Protection : Short circuit, overload, over/under voltage, battery low, thermal protection, etc. (standard UPS protections) Size : STANDARD Material : STEEL Frequency (MHz) : 50 Hertz (HZ) Features : Wide Input Voltage & Frequency Range Adapts to unstable mains or generator supply. Cable Type : ~16 mm copper flexible cable

Send Inquiry

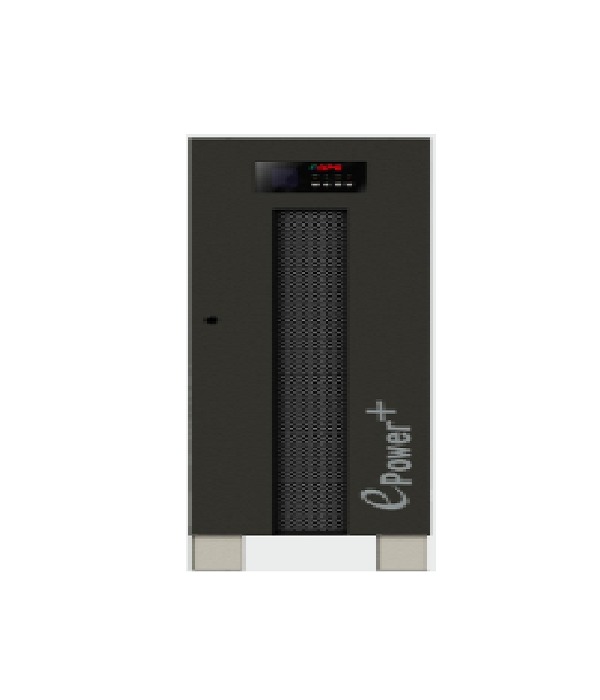

BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price : 161000.0 INR/Piece Minimum Order Quantity : 1 Product Type : BPE (GT330L20) 30KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Phase : 3:3 PHASE Standard : RS232/USB communication Operating Temperature : 0 C to 40 C Celsius (oC) Display Type : LCD / LED status panel Usage & Applications : POWER SUPPLY Warranty : 1 YEAR Color : black Usage : backup Power Rating : 30KVA Frequency : 50 Hertz (HZ) Dimension (L*W*H) : Parameter Details Width (W) ~592 mm Depth (D) ~250 mm Height (H) ~1000 mm Net Weight ~60 95 kg (varies by configuration) Millimeter (mm) Weight : 120 Kilograms (kg) Rated Current : 43 A per phase Ampere (amp) Rated Voltage : 380 / 400 / 415 V AC Volt (V) Protection : Overload, short circuit, surge, over/under voltage, thermal protection Size : Parameter Details Width (W) ~592 mm Depth (D) ~250 mm Height (H) ~1000 mm Net Weight ~60 95 kg (varies by configuration) Material : STEEL Frequency (MHz) : 50 Hertz (HZ) Features : Online Double Conversion Technology Provides continuous, clean power Zero transfer time (0 ms) for uninterrupted output Fully isolates load from mains disturbances Cable Type : XLPE Copper Armoured Cable (3.5 Core or 4 Core)
