BPE (GT330L40) 40KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY

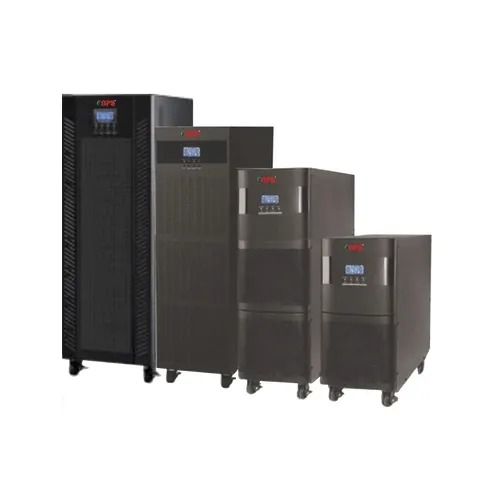

Name: BPE (GT330L40) 40KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Brand: NAIVE POWER PROJECTS PVT LTD
Price: 275000.0 INR
Availability: InStock

275000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Rating 40kva
Product Type BPE (GT330L40) 40KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Standard 360 850 950 mm (W D H)
Frequency (MHz) 50 Hertz (HZ)
Protection Overload, short circuit, overvoltage, undervoltage
Usage backup
Size standard
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (GT330L40) 40KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price And Quantity

Price 275000.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (GT330L40) 40KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Product Specifications

Rated Current 61 A Ampere (amp)
Protection Overload, short circuit, overvoltage, undervoltage
Usage & Applications power supply
Rated Voltage 380 / 400 / 415 VAC Volt (V)
Material steel
Size standard
Operating Temperature 0 C to 40 C Celsius (oC)
Standard 360 850 950 mm (W D H)
Dimension (L*W*H) Approx: 360 850 950 mm (W D H) Millimeter (mm)
Frequency (MHz) 50 Hertz (HZ)
Color black
Phase 3:3 phase
Cable Type 4C 16 sq.mm Copper XLPE
Frequency 50 Hertz (HZ)
Weight 800 Kilograms (kg)
Power Rating 40kva
Warranty 1 year
Display Type LCD / Digital / Touch Panel (variant based)
Features Key Features Power Technology True Online Double Conversion UPS Zero transfer time (0 ms switching) Pure sine wave output for sensitive loads DSP-based intelligent control system
Product Type BPE (GT330L40) 40KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY
Usage backup

BPE (GT330L40) 40KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Trade Information

Delivery Time 6 Days

Product Description

Product Overview

This UPS uses true online double-conversion technology, meaning it continuously converts incoming AC power to DC and then back to AC. This ensures:

Zero transfer time (0 ms switching)
Stable and clean sine wave output
Protection from voltage fluctuations, spikes, and outages

It is built for mission-critical applications such as data centers, hospitals, telecom systems, and industrial automation.

BPE GT330L40 / ePX+3340L32 40KVA 3:3 Phase Online UPS (External Battery)

Specification Table

Specification	Details
Model	BPE GT330L40 / ePX+3340L32
Capacity	40 KVA / 36 kW
Phase Configuration	3 Phase Input / 3 Phase Output (3:3)
Technology	Online Double Conversion UPS
Power Factor	0.8 0.9 (model dependent)
Output Voltage	380 / 400 / 415 VAC (selectable)
Input Voltage Range	Wide range (supports industrial fluctuations)
Frequency	50 / 60 Hz (auto sensing)
Waveform	Pure Sine Wave
Transfer Time	0 ms (instant switching)
Efficiency	Up to 9599% (eco mode higher)
Battery Type	External SMF / VRLA / Tubular / Lithium
Battery Configuration	External Battery Bank Required
DC Bus Voltage	Approx. 384V 480V DC
Battery Capacity Support	65Ah 200Ah (customizable)
Backup Time	Depends on battery bank size
Overload Capacity	125%150% (short duration)
Display	LCD / Digital / Touch Panel (variant based)
Control System	DSP-based Intelligent Control
Communication	RS232 / RS485 / SNMP (optional)
Cooling	Intelligent Fan Cooling System
Protection	Overload, short circuit, overvoltage, undervoltage
Generator Compatibility	Yes
Maintenance Bypass	Built-in
Application Areas	Data centers, hospitals, telecom, industries, IT infrastructure

WARRAnty :- 1year
If you want, I can also format this into a catalog sheet (PDF style) or give battery sizing + backup time chart for this UPS.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

MAX LIFE 1 KVA ONLINE UPS Price : 23258.0 INR/Unit Minimum Order Quantity : 1 Material : STEEL Rated Current : 3.5A Ampere (amp) Product Type : ONLINE UPS Warranty : 1 YEAR Power Rating : Rated Output Capacity: 1 KVA (1000 VA) Weight : 6.4 Kilograms (kg) Frequency (MHz) : 50 Hz Hertz (HZ) Color : BLACK Size : Length: 397 mm Width: 145 mm Height: 220 mm Usage & Applications : POWER SUPPLY Rated Voltage : 110280VAC Volt (V) Usage : BACKUP Phase : 1 PHASE Frequency : 50 Hertz (HZ) Dimension (L*W*H) : (L W H) of ~39.7 14.5 22 cm Centimeter (cm) Features : Core Performance & Technology / DispSummary Feature HighlightsProtection & Reliability/ lay & Monitoring/ Efficiency & Eco Modes Display Type : LCD display provides clear information on UPS status such as load level, battery level, AC mode, battery mode, bypass mode, fault indications and other operating parameters. Standard : Standard Physical & Package Dimensions (Product Spec) Protection : BuiltIn Protection Features These are common protection mechanisms in doubleconversion online UPS designs from Microtek (especially MAX LiFe / MAX+ series): True Online DoubleConversion Provides continuous power conditioning (AC DC AC) to eliminate spikes, sags, and electrical noise. ShortCircuit Protection Detects and cuts output in the event of a short, preventing damage to UPS and connected gear. Overload Protection UPS shuts down or switches to bypass if input/current exceeds safe limits. OverTemperature Protection Automatically shuts down or limits operation if internal heat gets too high. EMI / RFI Noise Filtering Suppresses electromagnetic and radio frequency interference on the power line. OverVoltage & UnderVoltage CutOff Prevents output when mains voltage is outside safe bounds (protects electronics from spikes/sags). DC Fan Failure Protection Shuts down or alarms if cooling fan fails, avoiding overheating. Advanced Battery Management (ABM) Protects battery life and prevents overcharging or deep discharge. Generator Compatibility Automates safe operation with generator power without erratic switching. Optional Static Bypass Enable/Disable Protects load if the UPS inverter has an internal fault by routing directly to mains (configurable). RS232/SNMP Communication (optional) Alerts and logging for system faults and protection events. Why These Matter Clean & continuous power: Online designs mean zero switchover time and stable sinewave output ideal for PCs, routers, NAS, etc. Battery safety: ABM helps prevent battery damage from improper charging or deep discharge. Device safety: Surge/overvoltage cutoff and noise filtering reduce risk of electrical stress on sensitive electronics. Cable Type : Here s a bulletpoint summary of recommended cable types for the Max Life 1 KVA Online UPS: AC Input (Mains Supply): Flexible copper cable, PVC or FRLS insulated Standard 230 V AC power cable (typically 1.5 m with plug) Connects UPS safely to the mains supply AC Output (to Devices): Flexible copper wire, PVC insulated Standard 230 V output cable / power lead Feeds connected devices like PCs, routers, and small servers Battery Connection (External / 48 V DC): Stranded highcurrent copper cable, flexible 10 AWG 6 AWG recommended for safe current handling PVC or rubber insulation suitable for DC battery voltage Keep cable short and direct to reduce voltage drop and heating Earthing / Grounding: Copper conductor, minimum 2.5 mm Insulated/shielded for safety Connects UPS chassis to earth for protection General Tips: Use stranded copper cables for battery connections for flexibility and reliability Avoid aluminum cables; copper is preferred for lower resistance Ensure all cables are rated for expected current and meet local electrical codes Operating Temperature : 0 C to 40 C Celsius (oC) Conductor : AC Input (Mains): Copper conductor, 2.5 mm 4 mm Connects UPS to the mains safely Must be PVC or FRLS insulated AC Output (Load): Copper conductor, 2.5 mm Feeds devices like PCs, routers, or small servers Flexible and insulated Battery Connection (48 V DC External): Stranded copper conductor, 10 AWG 6 AWG Handles high DC current safely Short and direct for minimal voltage drop Earthing / Grounding: Copper conductor, minimum 2.5 mm Insulated for safety Connects UPS chassis to earth General Notes: Use flexible, stranded copper cables for battery and load connections Avoid aluminum; copper ensures lower resistance and better reliability Ensure conductors are rated for expected current and follow local electrical codes

Send Inquiry

MICROTEK i MAX SERIES 10 KVA ONLINE UPS 3 PHASE IN -1 PHASE OUT with isolation transformer Price : 118036.0 INR/Unit Minimum Order Quantity : 1 Material : STEEL Rated Current : 8,000W Watt (w) Product Type : ONLINE UPS Warranty : 1 YEAR Power Rating : 10 KVA/8,000W Weight : 86 Kilograms (kg) Frequency (MHz) : 55 Hertz (HZ) Color : BLACK Size : standard Usage & Applications : POWER SUPPLY Rated Voltage : 360V / 380V / 400V AC Volt (V) Usage : BACKUP Phase : (3 phase in 1 phase out Frequency : 55 Hertz (HZ) Dimension (L*W*H) : 562 mm 250 mm 830 mm Millimeter (mm) Features : data center Display Type : digital LCD panel Standard : IS 7098 / IEC 60502 Protection : Over Voltage CutOff Device (OVCD) Cable Type : Copper, XLPE / PVC insulated, Armoured (for industrial use) Operating Temperature : 0 C to 40 C Celsius (oC) Conductor : Copper, XLPE / PVC insulated, Armoured (for industrial use)

Send Inquiry

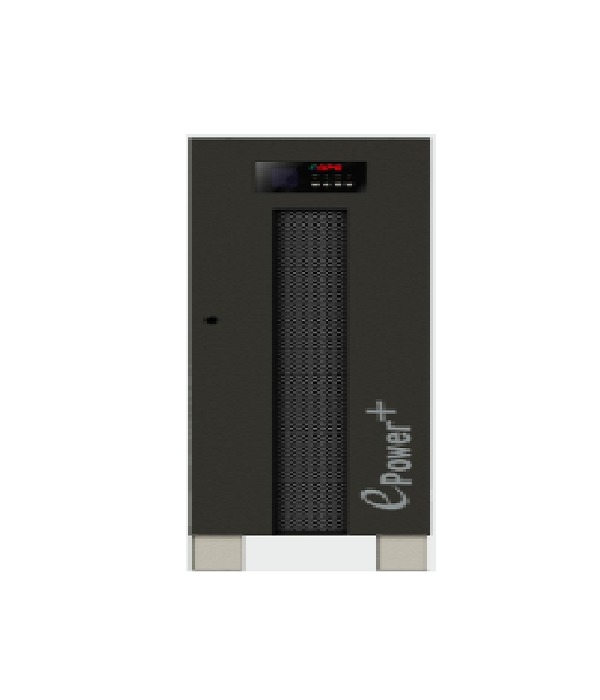

BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Price : 330400.0 INR/Unit Minimum Order Quantity : 1 Material : STEEL Rated Current : 83 A Ampere (amp) Product Type : BPE (GTM3360L32) 60KVA 3:3 PHASE ONLINE UPS EXTERNAL BATTERY Warranty : 1 YEAR Power Rating : 60KVA Weight : 485 Kilograms (kg) Frequency (MHz) : 50 Hertz (HZ) Color : BLACK Size : 760 880 1600 mm (approx.) Usage & Applications : POWER SUPPLY Rated Voltage : 380V / 400V / 415V AC Volt (V) Usage : BACKUP Phase : 3:3 PHASE Frequency : 50 Hertz (HZ) Dimension (L*W*H) : 760 880 1600 mm (approx.) Millimeter (mm) Features : True Online Double Conversion Display Type : LCD / LED Control Panel Standard : IEC 620401 (Safety) Protection : Industrialgrade overload & shortcircuit protection Cable Type : 3.5 core Copper XLPE armoured cable (FRLS / FRLSH) Operating Temperature : 0 C to 40 C Celsius (oC)
