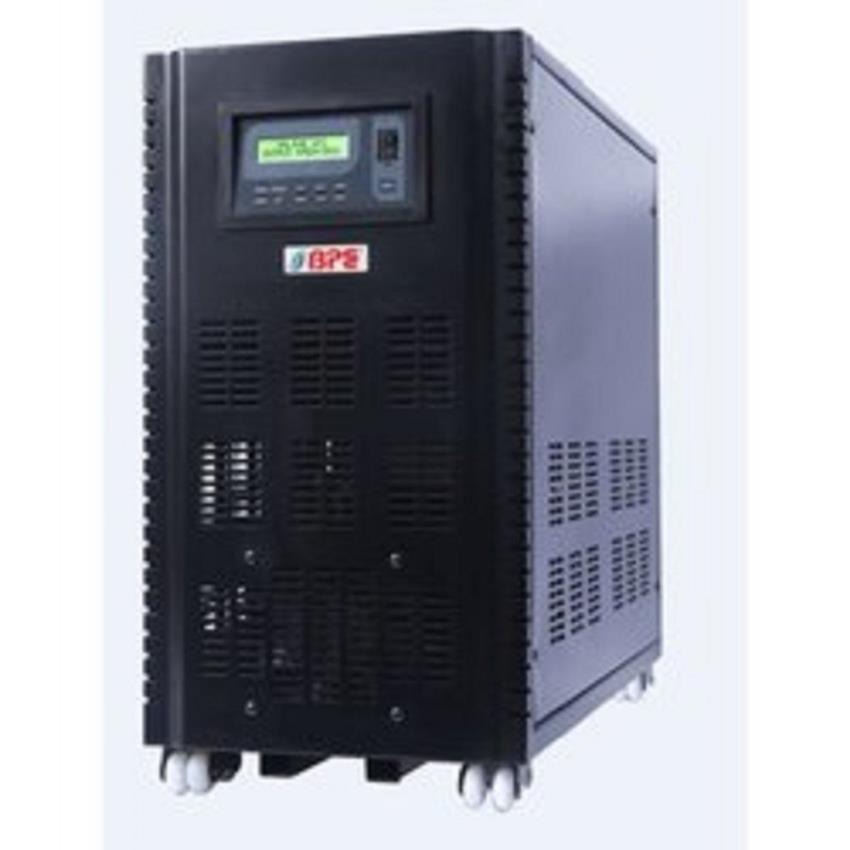

BPE (CP3320L20) 10KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
135700.0 INR/Unit
Product Details:
- Power Rating 10KVA
- Product Type BPE (CP3320L20) 10KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
- Standard IEC 62040-1-1
- Rated Voltage 380V / 400V / 415V AC Volt (V)
- Frequency (MHz) 50 Hertz (HZ)
- Protection Overload, Short Circuit, Over Temperature, Battery Under/Over Voltage
- Size Dimension Type Size Height 685 mm Width 615 mm Depth 280 mm Approx. Net Weight 180 Kg Noise Level 60 dB Protection Class IP20
- Click to View more
X
BPE (CP3320L20) 10KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Price And Quantity
- 135700.0 INR/Unit
- 1 Unit
BPE (CP3320L20) 10KVA 3-Phase Online UPS with Inbuilt Isolation Transformer Product Specifications
- Copper Flexible / XLPE Power Cable
- 1 YEAR
- IEC 62040-1-1
- 37 Ampere (amp)
- POWER SUPPLY
- 50 Hertz (HZ)
- True Online Double Conversion Technology
- Dimension Type Size Height 685 mm Width 615 mm Depth 280 mm Approx. Net Weight 180 Kg Noise Level 60 dB Protection Class IP20
- STEEL
- Dimension Type Size Height 685 mm Width 615 mm Depth 280 mm Approx. Net Weight 180 Kg Noise Level 60 dB Protection Class IP20 Meter (m)
- 3:3 PHASE
- BPE (CP3320L20) 10KVA 3-Phase Online UPS with Inbuilt Isolation Transformer
- Overload, Short Circuit, Over Temperature, Battery Under/Over Voltage
- 10KVA
- 380V / 400V / 415V AC Kilograms (kg)
- Touch Screen LCD
- 50 Hertz (HZ)
- 380V / 400V / 415V AC Volt (V)
Product Description
Product Description
The BPE CP3320L20 / CP3310L20 series is engineered to deliver continuous clean power to sensitive electrical and electronic equipment. It uses online double-conversion technology, where incoming AC power is converted to DC and then reconverted to regulated AC output, ensuring zero transfer time during mains failure.
Its inbuilt isolation transformer improves electrical isolation, suppresses noise, and enhances protection against voltage spikes, harmonics, and grounding issues. The UPS is suitable for industries, IT infrastructure, telecom systems, hospitals, laboratories, CNC machines, and automation environments.
| Specification | Details |
|---|---|
| Model | BPE CP3310L20 / CP3320L20 |
| UPS Type | Online Double Conversion UPS |
| Capacity | 10 KVA / 8 KW |
| Phase Configuration | 3 Phase Input / 3 Phase Output |
| Output Power Factor | 0.8 |
| Input Voltage | 400V AC |
| Input Voltage Range | 304V 477V AC |
| Input Frequency | 50/60 Hz |
| Input Frequency Range | 45 65 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 400V AC |
| Output Voltage Options | 380V / 415V |
| Output Frequency | 50Hz 0.1% |
| Output Waveform | Pure Sine Wave |
| Output Voltage THD | <3% Linear Load, <5% Non-Linear Load |
| Efficiency | Up to 94% |
| Transfer Time | <0 ms (Zero Transfer Time) |
| Overload Capacity | 110% for 60 min, 125% for 10 min, 150% for 1 min |
| Isolation Transformer | Inbuilt |
| Bypass | Built-in Maintenance Bypass |
| Battery DC Bus | 240 VDC |
| Battery Type | SMF Compatible |
| Battery Capacity Range | 7Ah 100Ah |
| Parallel Capability | Inbuilt / Optional |
| Cooling System | Forced Air Cooling |
| Display | Touch Screen LCD |
| SNMP Monitoring | Optional |
| Audible Alarm | Audible & Visual Alarms |
| Protection Features | Overload, Short Circuit, Over Temperature, Battery Under/Over Voltage |
| Input/Output Connection | Hard Wire 5-Wire (3PH + N + G) |
| Generator Compatibility | Yes |
| Cold Start Function | Yes |
| Applications | Data Centers, CNC Machines, Hospitals, Telecom, Industrial Automation |
