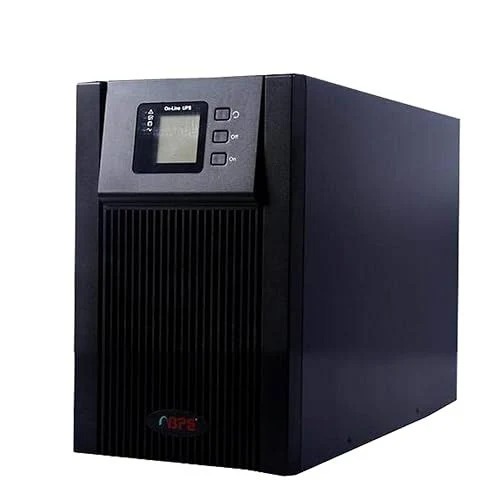

BPE (MP1102L6) 2KVA ONLINE UPS INBUILT BATTERY

42826.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE (MP1102L6) 2KVA ONLINE UPS INBUILT BATTERY
Power Rating 2 KVA
Standard ISO 9001:2015
Frequency (MHz) 40 70 Hz Hertz (HZ)
Protection Overload, short circuit, surge protection
Usage backup
Size Parameter Size Height 399 mm Width 192 mm Depth 469 mm Weight ~26.7 kg
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE (MP1102L6) 2KVA ONLINE UPS INBUILT BATTERY Price And Quantity

Price 42826.0 INR/Unit
Minimum Order Quantity 1 Unit

BPE (MP1102L6) 2KVA ONLINE UPS INBUILT BATTERY Product Specifications

Protection Overload, short circuit, surge protection
Standard ISO 9001:2015
Usage backup
Weight 26.7 kg Kilograms (kg)
Dimension (L*W*H) Parameter Dimension Height 399 mm Width 192 mm Depth 469 mm Weight ~26.7 kg Millimeter (mm)
Rated Voltage 220 240 V AC Volt (V)
Warranty 1 year
Phase single phase
Power Rating 2 KVA
Color black
Features True Online Double Conversion Technology Ensures continuous, clean power with zero transfer time Pure Sine Wave Output Safe for sensitive equipment like servers, PCs, and medical devices PWM & IGBT-Based Design Improves efficiency and reliability
Size Parameter Size Height 399 mm Width 192 mm Depth 469 mm Weight ~26.7 kg
Material steel
Rated Current 7 8 Amps Ampere (amp)
Usage & Applications power supply
Cable Type 3 Core Copper Cable (Phase + Neutral + Earth)
Frequency 40 70 Hz Hertz (HZ)
Operating Temperature 0 40 C Celsius (oC)
Frequency (MHz) 40 70 Hz Hertz (HZ)
Display Type LCD Display
Product Type BPE (MP1102L6) 2KVA ONLINE UPS INBUILT BATTERY

BPE (MP1102L6) 2KVA ONLINE UPS INBUILT BATTERY Trade Information

Delivery Time 7 Days

Product Description

Detailed Description

The BPE MF1102L6 2KVA Online UPS is a true online (double-conversion) UPS system designed to deliver continuous, clean, and stable power for sensitive equipment like servers, medical devices, networking systems, and high-end PCs.

Specification Table

Specification	Details
Model	BPE MF1102L6 / MP1102L6
Capacity	2 KVA / 1.6 KW
UPS Type	True Online (Double Conversion)
Output Waveform	Pure Sine Wave
Output Voltage	220V / 230V / 240V
Output Phase	Single Phase (1:1)
Output Frequency	50/60 Hz 0.1%
Output Power Factor	0.8
Efficiency (Full Load)	>90%
Transfer Time	0 ms (no interruption)
Input Voltage	220V (range approx. 220240V)
Input Frequency Range	4070 Hz
Input Power Factor	>0.99
Battery Type	External SMF batteries
Battery System	72V DC (6 12V batteries)
Charging Current	Up to 6 Amp
Recharge Time	8 hours (90%)
Backup Time	Depends on battery (10 min to 2+ hrs)
Display	LCD Display
Communication Ports	RS-232, SNMP slot
Noise Level	<50 dB
Protection	Overload, short circuit, surge protection
Bypass	Automatic & Manual Bypass
Dimensions (HxWxD)	399 192 469 mm
Weight	~26.7 kg
Operating Temp	040C
