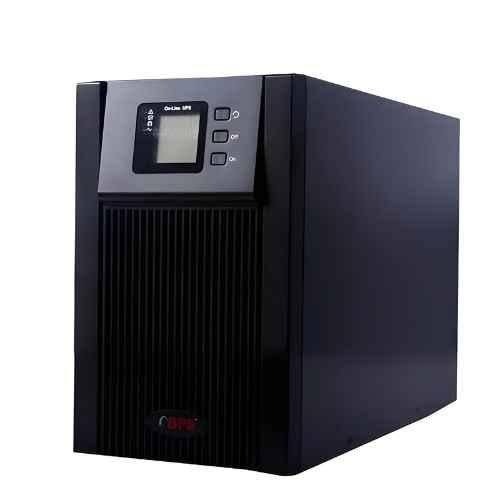

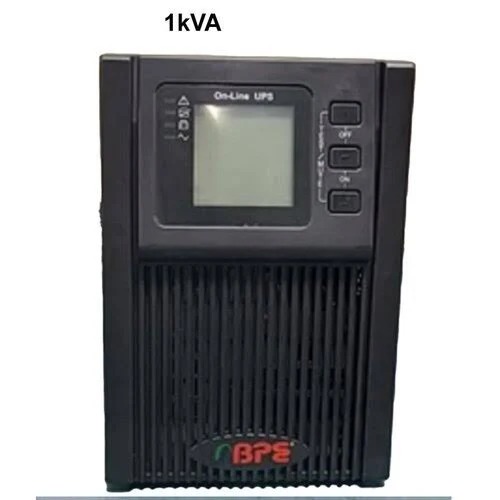

BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER

10673.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER
Power Rating 1 kVA (1000 VA)
Standard IEC 62040 1
Frequency (MHz) 50/60 Hz Hertz (HZ)
Protection Overload Protection Prevents damage if connected load exceeds UPS capacity. UPS goes into bypass or alarm mode
Usage BACKUP
Size Packaged/Cardboard Size: ~14.4 cm 40 cm 21.5 cm
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Price And Quantity

Minimum Order Quantity 1 Unit
Price 10673.0 INR/Unit

BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Product Specifications

Standard IEC 62040 1
Rated Voltage 220 / 230 / 240 V AC Volt (V)
Operating Temperature 0 50 C Celsius (oC)
Size Packaged/Cardboard Size: ~14.4 cm 40 cm 21.5 cm
Dimension (L*W*H) Approx. External Size (W D H): 144 400 215 mm (mm) Width Depth Height (tower form factor). Millimeter (mm)
Display Type LCD (voltage, frequency, mode, load, battery)
Material STEEL
Usage & Applications POWER SUPPLY
Weight 5.6 Kilograms (kg)
Usage BACKUP
Power Rating 1 kVA (1000 VA)
Phase Single Phase
Rated Current 800 W Watt (w)
Warranty 1 YEAR
Cable Type 3-core flexible copper cable, typically 1.5 mm 2.5 mm depending on installation Connects UPS to single-phase AC mains (Live, Neutral, Earth).
Color BLACK
Protection Overload Protection Prevents damage if connected load exceeds UPS capacity. UPS goes into bypass or alarm mode
Frequency 50/60 Hz Hertz (HZ)
Frequency (MHz) 50/60 Hz Hertz (HZ)
Product Type BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER
Features True Online Double Conversion Technology Continuously converts incoming AC power to DC and back to AC. Zero transfer time on mains failure no interruption to connected devices.

BPE MFX1101L3 1KVA ONLINE UPS INBUILT ISOLATION TRANSFORMER Trade Information

Delivery Time 7 Days

Product Description

Product Overview

The BPE MF1101L3 / MFX1101L3 1kVA Online UPS is a true online, doubleconversion UPS designed to provide continuous, clean, and stable power to critical electronic loads. Its ideal where power quality matters such as offices, labs, clinics, servers, telecom systems, and computers and when mains power is unstable or prone to dips/surges.

BPE MF1101L3 / MFX1101L3 1kVA Online UPS Specification Table

Specification	Details
Model	MF1101L3 / MFX1101L3
Rated Capacity	1kVA ( 0.8kW)
Input Voltage (Nominal)	220/230/240V AC (Single phase)
Input Voltage Range	110300V AC (load dependent)
Input Frequency Range	50/60Hz 10% (auto sensing)
Input Power Factor	>0.99
Output Voltage	220/230/240V AC 1%
Output Power Factor	0.8 (standard)
Output Frequency	Autosensing 50/60Hz 110% (sync), 0.1Hz (battery mode)
Output Waveform	Pure sine wave (double conversion online)
Harmonic Distortion (THDv)	1% 2%
Crest Factor	3:1
Efficiency	~94% (Dual Conversion), ~99% (ECO mode)
Battery DC Voltage	36V (typical)
Recharge Time	~48h to 90%
Battery Type	External SMF VRLA (configurable)
Batteries	Flexible / optional external batteries
Communication Ports	RS232 standard, SNMP optional
Protection	Overload, short circuit, low battery, thermal, input over/under voltage
Bypass	Automatic internal bypass
Display / Indicators	LCD (voltage, frequency, mode, load, battery)
Operating Temp. / Humidity	050C / 095% RH noncondensing
Mounting	Floor / tower type

WARRANTY :- 1 YEAR
Notes on This UPS

True online doubleconversion means the inverter is always supplying the load so theres no switchover delay when mains fails.
This model commonly uses external batteries, so runtime depends on battery capacity you choose.
Some variants of the MFX series include an inbuilt isolation transformer for extra protection and electrical isolation confirm with seller if its present on the exact unit youre buying

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Online UPS' category

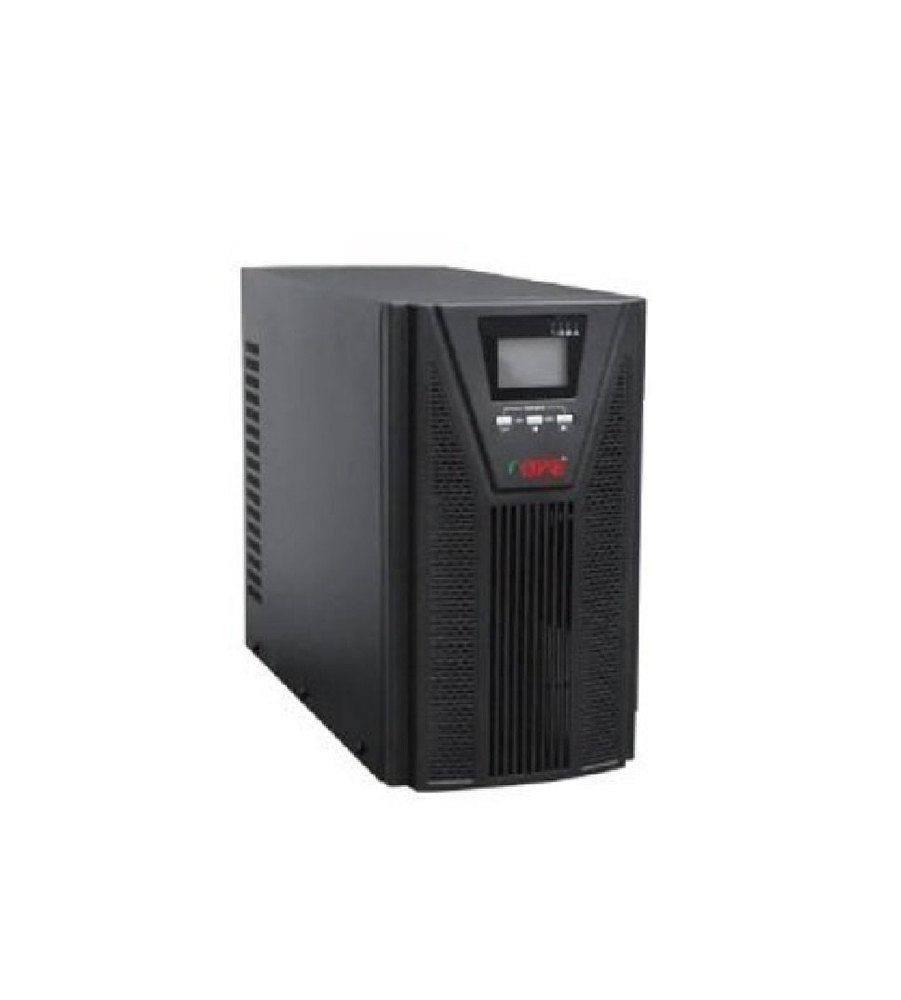

BPE MFP1102L8 2KVA ONLINE UPS Price : 23000.0 INR/Unit Minimum Order Quantity : 1 Rated Voltage : 220 V / 230 V / 240 V AC Volt (V) Usage : BACKUP Weight : 10 Kilograms (kg) Size : Height: 399 mm Width: 469 mm Depth: 192 mm Net Weight: 26.7 kg Display Type : LCD panel for input/output voltage, battery status, load %, UPS mode; RS232/optional SNMP Dimension (L*W*H) : Physical Dimensions Height: 399 mm Width: 469 mm Depth: 192 mm Net Weight: 26.7 kg Millimeter (mm) Material : STEEL Phase : 1 PHASE Power Rating : 2,000 VA (2 KVA) Warranty : 1 YEAR Protection : Overload, shortcircuit, over/under voltage, surge, EMI/RFI filtering Frequency (MHz) : 50 Hz Hertz (HZ) Frequency : 50 Hertz (HZ) Usage & Applications : POWER SUPPLTY Rated Current : 8.7 A Microampere (A) Color : BLACK Product Type : BPE MFP1102L8 2KVA ONLINE UPS Standard : IEC 620401 / IS 13252 (Part 1) Operating Temperature : 0 C to 40 C Celsius (oC) Features : True online double conversion topology for continuous clean power with zero transfer time. Conductor : External battery bank cables (from UPS to battery terminals) are thicker, typically multistrand copper battery cables, sized to match the battery bank current and length (e.g., 25 mm to 35 mm for external batteries on 96 V DC systems). This ensures minimal voltage drop and safe current flow. (General UPS battery practice) Cable Type : External battery bank cables (from UPS to battery terminals) are thicker, typically multistrand copper battery cables, sized to match the battery bank current and length (e.g., 25 mm to 35 mm for external batteries on 96 V DC systems). This ensures minimal voltage drop and safe current flow. (General UPS battery practice)
