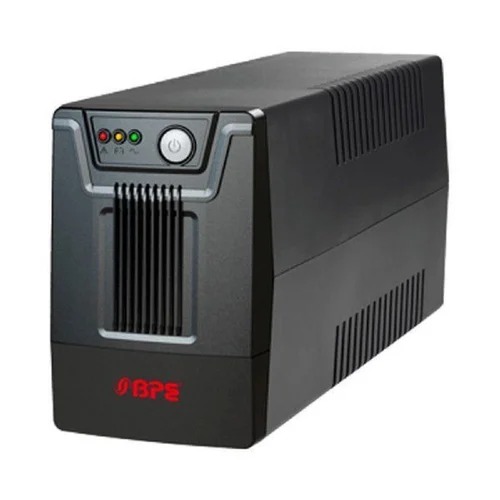

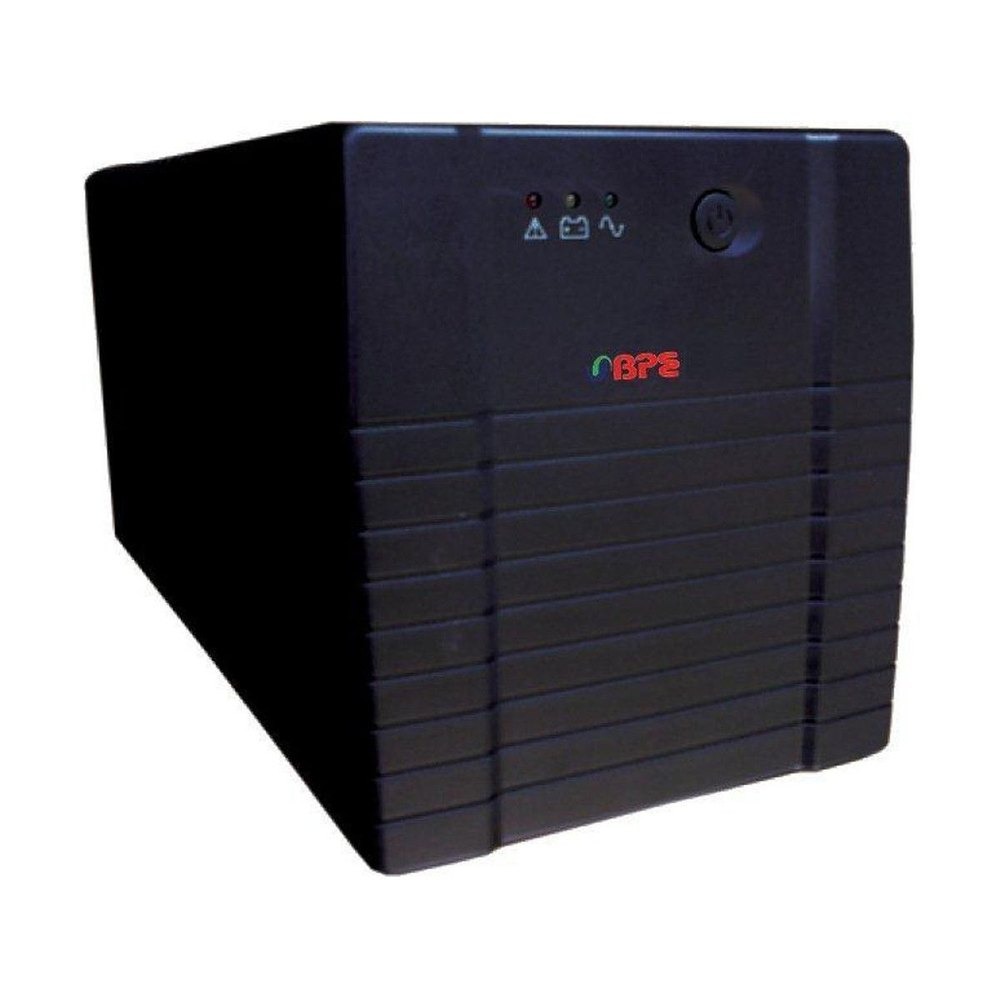

BP1200VA LINE INTERATIVE UPS
Product Details:
- Product Type BP1200VA LINE INTERATIVE UPS
- Power Rating 1200VA
- Standard IEC 62040-1
- Frequency (MHz) 50 HZ Hertz (HZ)
- Protection Protection Type Details Overload Protection Automatically shuts down or alarms when load exceeds rated capacity Short Circuit Protection Prevents damage by cutting off power during short circuit Surge Protection Protects connected devices from voltage spikes Spike Protection Filters sudden high-voltage spikes Overcharge Protection Prevents battery from overcharging Deep Discharge Protection Protects battery from excessive discharge Low Battery Protection Audible alarm when battery level is low Over Voltage Protection Protects equipment from high input voltage Under Voltage Protection Stabilizes low input voltage using AVR Thermal Protection Prevents overheating of internal components
- Usage BACKUP
- Size Overall Footprint (L W H): 400 145 160 mm
- Click to View more
BP1200VA LINE INTERATIVE UPS Price And Quantity
- 1 Unit
- 3800.0 INR/Unit
BP1200VA LINE INTERATIVE UPS Product Specifications
- 400 145 160 mm Millimeter (mm)
- Line-Interactive Technology Automatically regulates voltage fluctuations without switching to battery mode.
- Overall Footprint (L W H): 400 145 160 mm
- 230V AC Volt (v)
- 50 HZ Hertz (HZ)
- BP1200VA LINE INTERATIVE UPS
- 0 40 C Celsius (oC)
- POWER SUPPLY
- 120 300 VAC Volt (V)
- BACKUP
- IEC 62040-1
- 1200VA
- STEEL
- Protection Type Details Overload Protection Automatically shuts down or alarms when load exceeds rated capacity Short Circuit Protection Prevents damage by cutting off power during short circuit Surge Protection Protects connected devices from voltage spikes Spike Protection Filters sudden high-voltage spikes Overcharge Protection Prevents battery from overcharging Deep Discharge Protection Protects battery from excessive discharge Low Battery Protection Audible alarm when battery level is low Over Voltage Protection Protects equipment from high input voltage Under Voltage Protection Stabilizes low input voltage using AVR Thermal Protection Prevents overheating of internal components
- 8KG Kilograms (kg)
- 50 HZ Hertz (HZ)
- Standard 3 pin AC mains cable (with plug for 230V socket)
- BLACK
- LED Indicators
- Single Phase
- 2 YEARS
BP1200VA LINE INTERATIVE UPS Trade Information
- 7 Days
Product Description
Product Description
The BP1200VA UPS uses line-interactive technology, which regulates voltage automatically and supplies stable power to connected devices. It includes an internal sealed lead-acid battery that provides temporary backup power during outages, allowing users to save data and safely shut down equipment.
This UPS is suitable for home and office use and can support devices such as desktop PCs, routers, modems, gaming consoles, and small networking equipment.
Key Features
-
1200VA / about 650720W capacity for small electronic equipment.
-
Automatic Voltage Regulation (AVR) to stabilize voltage fluctuations.
-
Battery backup during power cuts with fast switching time (around 26 ms).
-
Surge protection to protect devices from voltage spikes.
-
Audible alarms and LED indicators for battery status and faults.
-
Sealed lead-acid battery with recharge time about 68 hours.
-
Multiple output sockets for connecting several devices at once.
Typical Applications
-
Desktop computers and monitors
-
Wi-Fi routers and modems
-
CCTV systems and DVRs
-
Small office equipment and networking devices
In simple words:
A BP1200VA Line-Interactive UPS protects electronic devices from power cuts and voltage fluctuations while providing a few minutes of backup power to prevent data loss and safely shut down equipment.
Here is the Specification Details Table for a BP1200VA Line-Interactive UPS.
| Parameter | Specification Details |
|---|---|
| Model | BP1200 |
| UPS Type | Line-Interactive UPS |
| Capacity | 1200 VA (approx. 650720 W) |
| Input Voltage Range | 120 300 VAC |
| Input Frequency | 50 / 60 Hz 10% (Auto sensing) |
| Output Voltage (Battery Mode) | 230 VAC 10% |
| Output Voltage (AVR Mode) | 200 245 VAC |
| Output Frequency | 50 / 60 Hz 0.1 Hz |
| Waveform | Simulated Sine Wave |
| Transfer Time | 4 8 ms typical |
| Battery Type | Sealed Maintenance-Free Lead Acid (VRLA) |
| Battery Configuration | 2 12V / 7Ah (internal) |
| Battery Voltage | 24 V DC |
| Recharge Time | 6 8 hours to 90% capacity |
| Protection | Overload, Short Circuit, Low Battery, Surge & Spike |
| Alarm System | Audible alarm for battery mode, overload, and fault |
| Indicators | LED indicators for AC mode, battery mode, and fault |
| Operating Temperature | 0 40 C |
| Storage Temperature | 0 50 C |
| Operating Humidity | Up to 95% RH (non-condensing) |
| Dimensions | Approx. 145 400 160 mm |
| Applications | Desktop PC, Router, CCTV DVR, Networking devices |
WARRANTY :- 2 YEARS
These specifications are typical for BP1200 series line-interactive UPS systems used for small office and home electronics.
If you want, I can also make:
-
Datasheet format (professional spec sheet)
-
Tender specification table
-
Comparison table (1000VA vs 1200VA vs 1500VA UPS).
